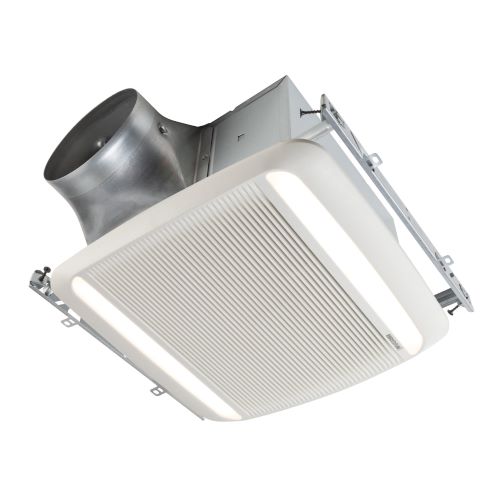

Broan-NuTone® RB80L1

Broan® RB80L1 ULTRA PRO™ Series Ventilation Fan Light, (1) LED Lamp, 120 V, Galvanized Steel Housing

Brand: Broan-NuTone®

Item ID: 468396

MPN: RB80L1

Login for Price

Features

  • 80 cfm, effective ventilation to remove moisture and reduce the risk of mold or mildew in most full baths
  • <0.3 sones for ultra quiet performance, you might not notice it's on
  • Bright 3000 K energy efficient LED lighting to help illuminate your room
  • ULTRAQuick™ installation technology uses an exclusive telescoping mounting frame with pre-installed screws
  • Snap-in housing, snap-in blower and an inside-out mounting duct connector for the fastest, easiest, most universal installation
  • Mounting frame fits any type of joist, I-Joist or truss construction for a "no guesswork" installation to make the work fast and easy
  • UL listed for use over tubs and showers with a GFCI circuit, so you can capture the steam before it spreads throughout the room by locating your fan exactly where you need it the most
  • Powerful enough for rooms up to 75 sq-ft
  • Brighter white grilles blend in to match most common ceiling paint
  • Rugged, 26 ga galvanized steel housing stands up to moisture
  • Permanently lubricated AC motor engineered for continuous operation

Description

Broan® ULTRA PRO™ Series Fans deliver everything you wished for in a bath fan - premium ventilation to help reduce airborne pollutants, extremely quiet operation, energy efficiency, consistent power and most impressively, the fastest, easiest, most universal installation available. These fans are ideal for both spot ventilation in humid bathrooms, as well as continuous ventilation to meet various building codes and Green Building standards. At 80 cfm, the RB80L1 provides powerful operation at a quiet level of less than 0.3 sones.

Broan® Ventilation Fan Light, Series: ULTRA PRO™ Series, 120 V, 0.5 A, UltraLucent™ Lighting Technology, LED Lamp, 18 W Lamp, 1 Lamps, 25000 hr Average Life, Dimmable Ballast, Ceiling Mounting, 1 Fan Speed Control, 80 cfm Air Flow, 28 W Fan Motor Wattage, Galvanized Steel Housing Material, 10-1/2 in L x 11-3/8 in W x 7-5/8 in H Dimensions

Specifications

Air Flow Rate

80 cfm

Amperage Rating

0.5 A

Average Life

25000 hr

Ballast Type

Dimmable

Dimensions

10-1/2 in L x 11-3/8 in W x 7-5/8 in H

Fan Motor Wattage

28 W

Fan Speed Control

1

Housing Material

Galvanized Steel

Lamp Type

LED

Lamp Wattage

18 W

Lighting Technology

UltraLucent™

Mounting Type

Ceiling

Number of Lamps

1

Series

ULTRA PRO™ Series

Voltage Rating

120 V

Standard Approval

cULus Listed|ENERGY STAR Certified|HVI 2100 Certified

Documentation

https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Broan_RB110L1_Manual.pdf https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Broan_RB110L1_Manual.pdf

https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Broan_RB110L1_Specification_Sheet.pdf https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Broan_RB110L1_Specification_Sheet.pdf

VIDEO LINK https://youtu.be/QUsZ3RWOoQ4
