Metalux 22CGTS-L3C3

• Three selectable color temperatures: 3500 K, 4000 K and 5000 K
• Three selectable lumen levels
• 2,817 to 4,686 delivered lumens
• 18.5, 27.7 or 32.2 W operation
• Factory default setting of 4000 K and medium output
• 120–277 V universal-voltage driver
• 0–10 V dimming to 10 percent
• Minimum 80 CRI
• Frosted acrylic micro-optic lens
• Integral ceiling-grid clips
• Five-year limited standard warranty

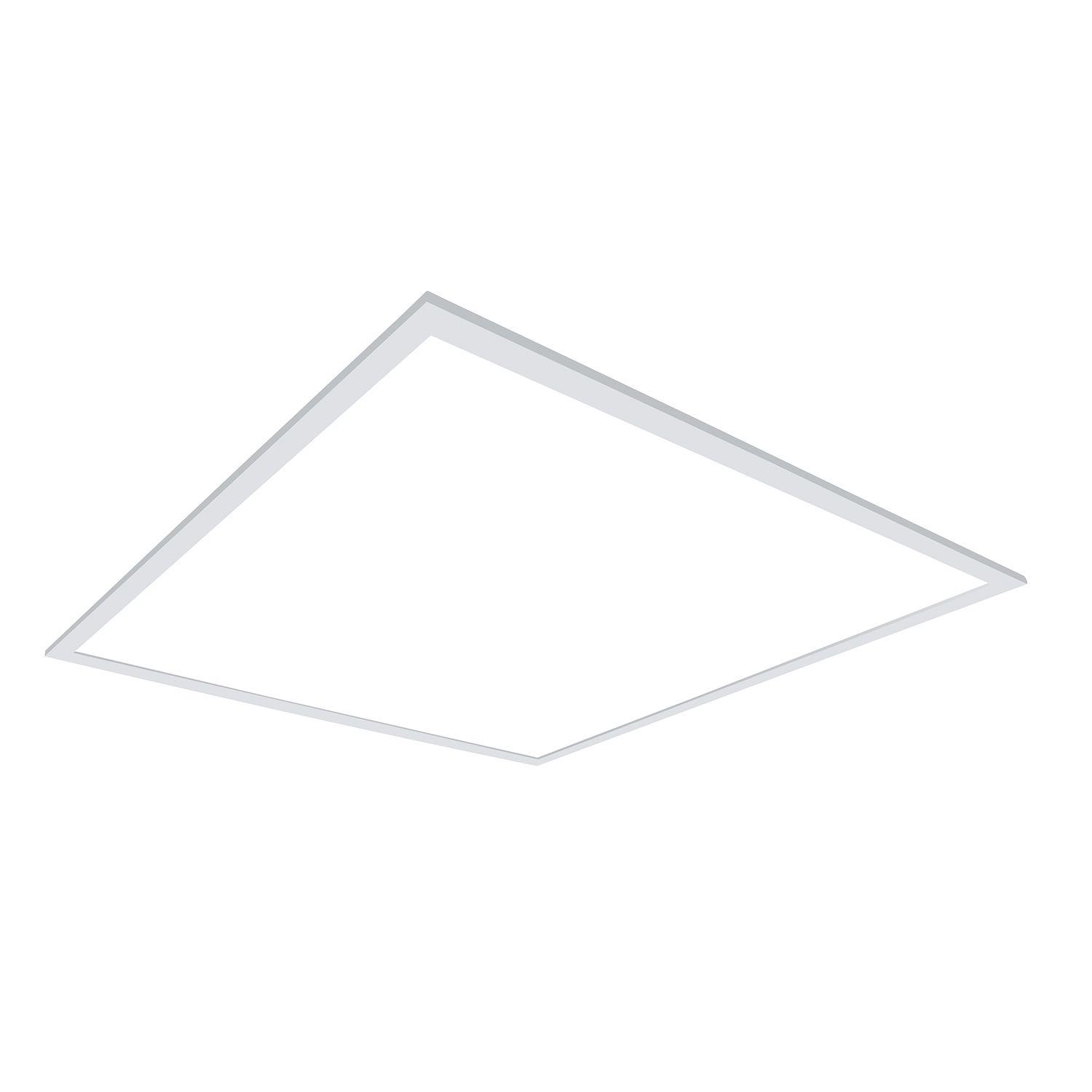

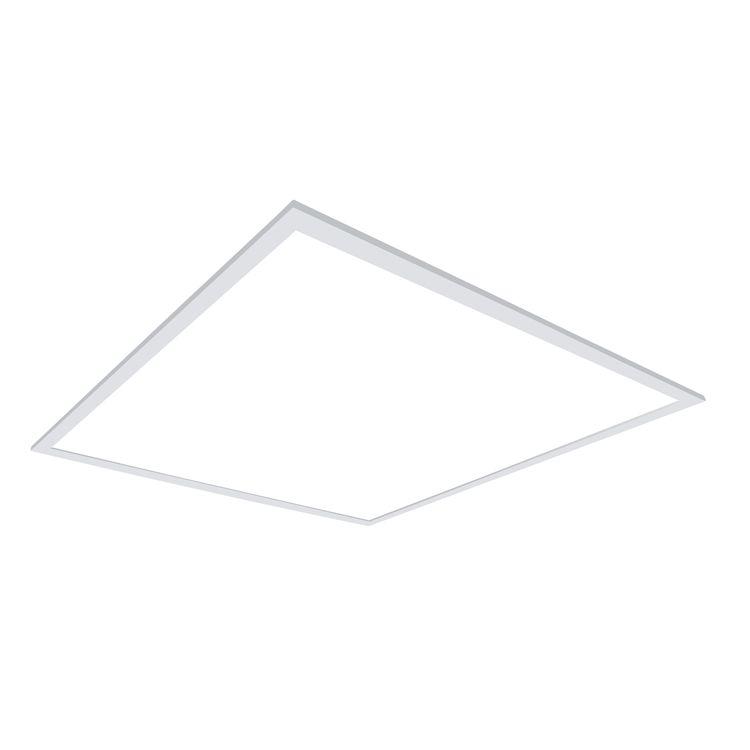

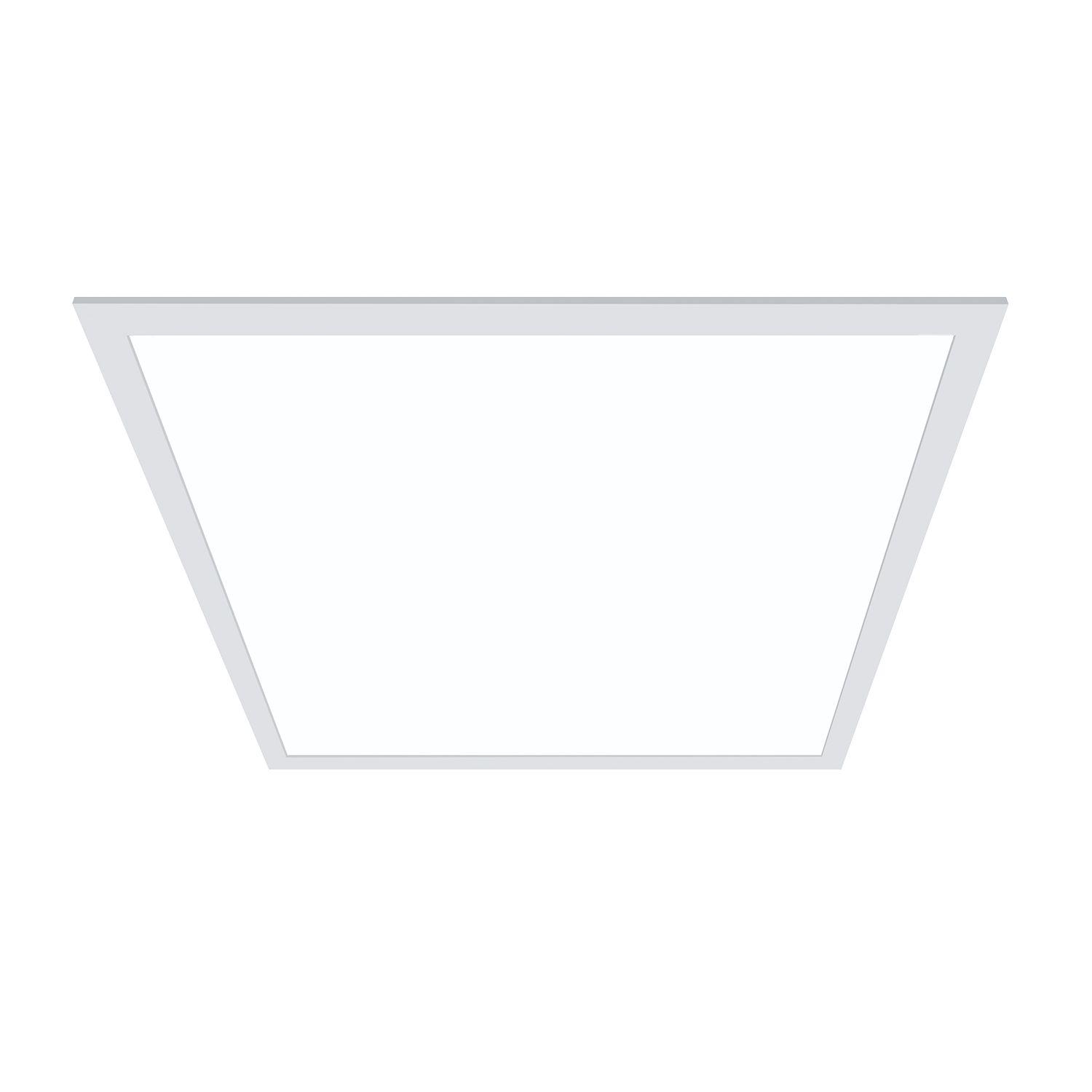

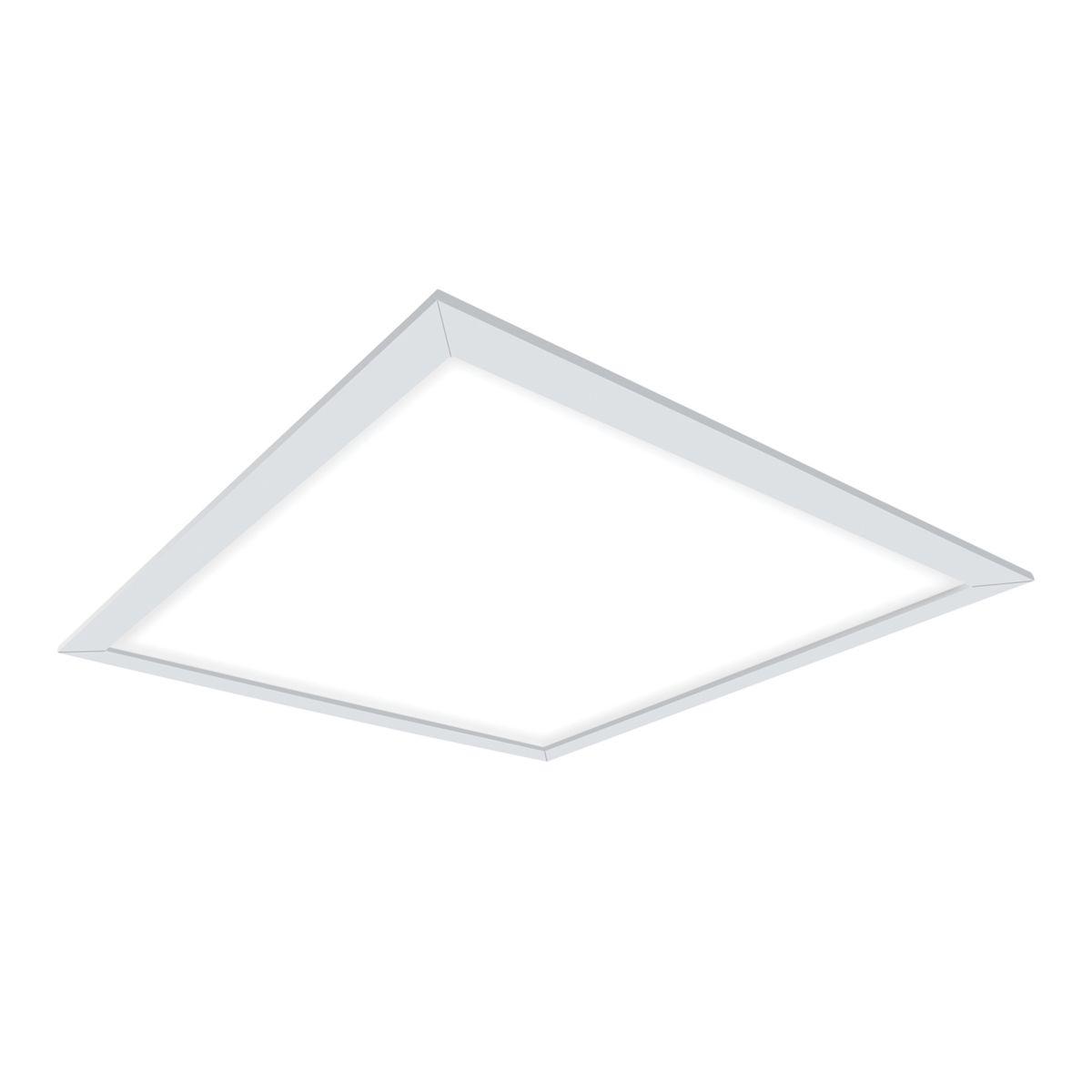

The Metalux 22CGTS-L3C3 is a 2 x 2 recessed backlit LED panel with three selectable lumen levels and field-selectable 3500 K, 4000 K or 5000 K color temperature. Output ranges from 2,817 to 4,686 lumens and power consumption ranges from 18.5 to 32.2 watts, depending on the selected settings.

The fixture operates on 120–277 V and includes 0–10 V dimming to 10 percent. Top-mounted selection switches provide access to the lumen and color-temperature settings before or after installation. Its 23-3/4-inch-square housing fits standard ceiling grids, while the shallow construction supports installation in limited plenum spaces. Typical applications include offices, schools, healthcare facilities and retail spaces.
