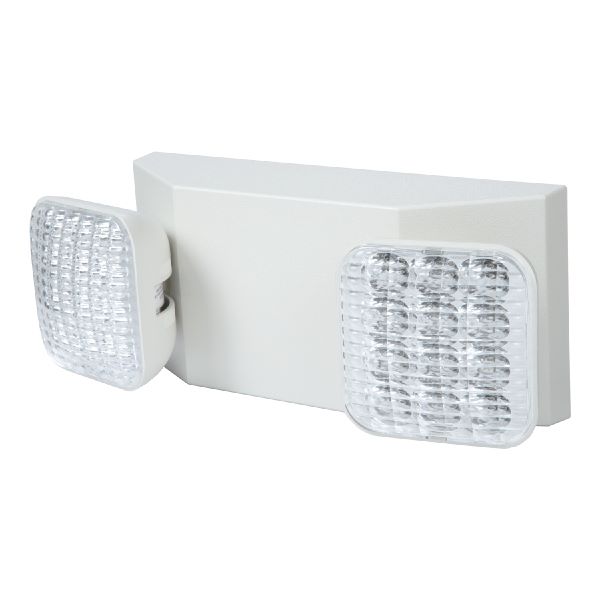

Sure-Lites AP2SQLED
Sure-Lites AP2SQLED All Pro Emergency Light, LED Lamp, 120/277 V AC, 2 Heads, Polycarbonate
Brand: Sure-Lites
Item ID: 515816
MPN: AP2SQLED
Login for Price
Features
- LED source
- Square adjustable heads
- 90 min run time
- 0.06 A at 277 VAC amperage rating
- 2 W at 277 VAC fixture wattage
Description
The APELSQ is an UL 924 listed emergency light with a minimum of 90 min of run time and 10 ft of emergency egress coverage. Key features include LED heads, a no maintenance nickel cadmium battery and a 5 years fixture warranty. The square LED heads are fully adjustable to maximize design flexibility while the compact form factor optimizes aesthetics. The universal j-box mounting pattern and snap fit housing construction significantly reduce installation time.
Sure-Lites Emergency Light, All Pro, Series: AP2SQLED, 120/277 V AC, 2 W Fixture, 0.06 A, 60 Hz Frequency, LED Lamp, 2 Heads, 80 Lumens, Sealed Ni-Cd Battery Power Source, Ceiling/Wall Mounting, 12-1/4 in L x 4 in W x 5 in H Dimensions, Polycarbonate, White
Specifications
Amperage Rating |
0.06 A |
Color |
White |
Dimensions |
12-1/4 in L x 4 in W x 5 in H |
Fixture Wattage |
2 W |
Frequency Rating |
60 Hz |
Lamp Type |
LED |
Lumens |
80 Lumens |
Material |
Polycarbonate |
Mounting Type |
Ceiling/Wall |
Number of Heads |
2 |
Power Source |
Sealed Ni-Cd Battery |
Series |
AP2SQLED |
Type |
All Pro |
Voltage Rating |
120/277 V AC |
Standard Approval |
ECCN: EAR99NLR|UL 924 for Damp Locations|NFPA 101|NEC Certified|OSHA Compliant |
Application |
Lighting Applications |
