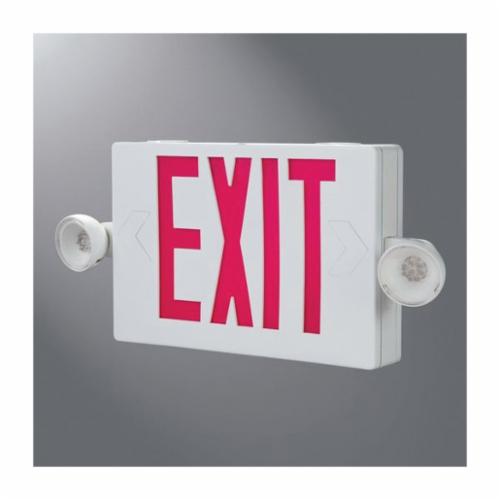

Sure-Lites APC7R
Sure-Lites ALL-PRO™ APC7R Universal Combination Emergency Exit Lamp, LED Lamp, 1.68 W Fixture, 120/277 VAC, 3.6 VDC, Textured Housing, EXIT Legend
Brand: Sure-Lites
Item ID: 403003
MPN: APC7R
Login for Price
Features
- 5 min installations
- Impact-resistant, thermoplastic LED exit combination unit with side mounted adjustable heads
- 5 W halogen lamps in emergency lighting heads
- Low profile design to fit areas where height is a constraint
- Low voltage battery disconnect
- Maintenance-free lead calcium battery
- Matching indoor and outdoor single and double remote heads
- Outdoor remote heads UL listed for wet location
- 90 min battery runtime
- Long lasting LED heads
Description
The ALL-PRO™ series is the most economical LED combo (including LED emergency light heads) for general purpose applications. The durable, injection molded, thermoplastic material resists discoloration due to UV radiation and the energy efficient, low maintenance LEDs provide bright illumination. All AP series combos offer universal configurations (single and double face) and have universal mounting capability (ceiling, wall, end).
Sure-Lites ALL-PRO™ Combination Emergency Exit Lamp, Universal, Series: APC, 120/277 VAC, 3.6 VDC, 1.68 W Fixture, 0.09 A, LED Lamp, 0.78 W Lamp, 1 Lamps, 2 Heads, 100 Lumens/W, White Light, EXIT Legend, Ceiling Mount, Ni-Cd Battery, Thermoplastic Housing, Textured Housing, 8.5 in L x 13.25 in W x 2.6 in H
Specifications
Amperage Rating |
0.09 A |
Dimensions |
8.5 in L x 13.25 in W x 2.6 in H |
Fixture Wattage |
1.68 W |
Housing Finish |
Textured |
Housing Material |
Thermoplastic |
Lamp Type |
LED |
Lamp Wattage |
0.78 W |
Legend |
EXIT |
Light Color |
White |
Light Output |
100 Lumens/W |
Mounting Type |
Ceiling |
Number of Heads |
2 |
Number of Lamps |
1 |
Power Source |
Ni-Cd Battery |
Series |
APC |
Type |
Universal |
Voltage Rating |
120 to 277 VAC/3.6 VDC |
Standard Approval |
ECCN: EAR99NLR|NEC Certified|NFPA 101|NEC Certified|OSHA Compliant|UL 924 for Damp Locations |
Application |
Lighting Applications |
