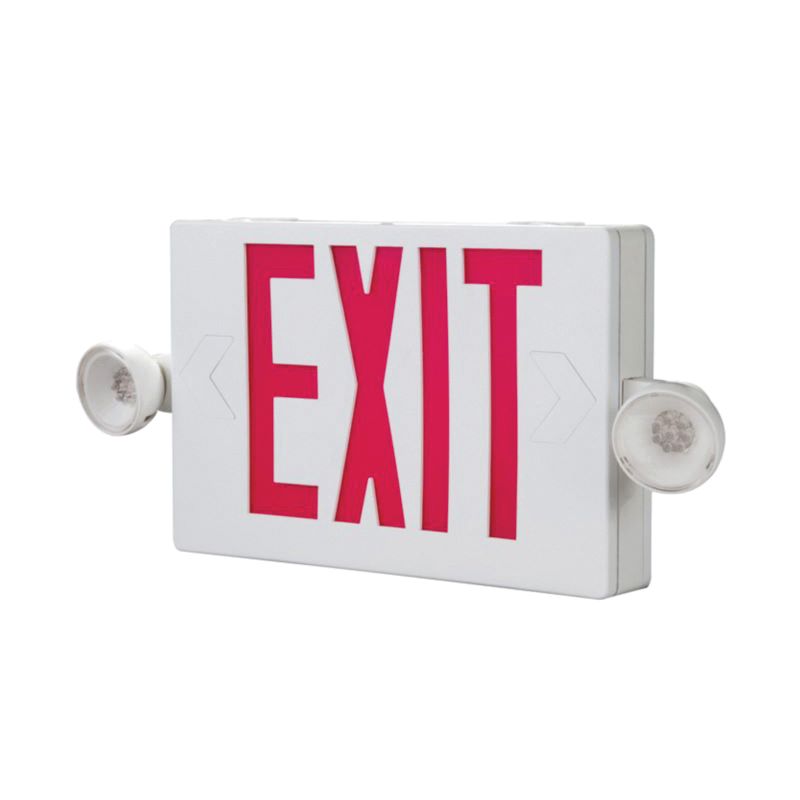

Sure-Lites APCH7GBK

• 3.6 V, 78 W DC long lasting LED heads
• High power combo capable of running two additional LED remote heads
• Universal J-box mounting pattern
• Operating temperature range 10 to 40 deg C
• Low voltage disconnect
• Line-latched
• Brownout circuit

The LED APC series is UL 924 code compliant solution for indoor exit and emergency requirements that will operate for a minimum of 90 min during a power outage. The LED emergency heads are adjustable, can be side or top mounted and will provide 17 ft of emergency egress coverage. The nickel cadmium battery requires no maintenance. The exit features an LED source available for red or green letters, is field configurable for single or double face and has field configurable chevrons. The polycarbonate housing is universal mount ( ceiling, wall or end ) and available in a white or black finish. The high powered remote capable versions (H series) will power two additional 3.6 V emergency heads from the APWR series to generate a total of 34 ft of emergency egress coverage.

Sure-Lites Emergency Exit Combination Light, Rectangular, Series: APCH, 120 to 277 V, 78 W Fixture, 0.09 A, LED Lamp, 1.55/1.45 W Lamp, 2 Lamps, 2 Heads, 5.4 Lumens/W Light Output, 24 hr Average Life, Green Light, Legend: Exit, Ceiling Mounting, Ni-Cd Battery Power Source, Polycarbonate Housing Material, Black Housing Finish, 16.562 in L x 3.937 in W x 8.25 in H Dimensions
