Sure-Lites APCH7RG

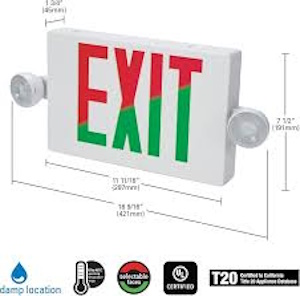

Sure-Lites APCH7RG Universal Exit Sign, LED Lamp, 120/277 VAC, White Housing, EXIT Legend
Brand: Sure-Lites
Item ID: 550933
MPN: APCH7RG
Login for Price
Features
- Red/green selectable exit sign and emergency light
- Runs for 90 min when AC power is lost
- 3.6 V, 0.78W LED heads provide up to 17 ft of egress coverage
- Field selectable, long-life red or green LEDs and face inserts provide deep letter colors and uniform illumination
- Selectable single or double faces and snap-in/snap-out directional chevrons
- High impact, UV resistant, 5VA flame resistant housing
- Nickel cadmium battery
- Ceiling, wall and back mount with universal J-box mounting pattern
- Remote capable model powers up to two additional APWR LED heads
Description
Sure-Lites, APCH7RG, Exit Sign, Universal, Series: APCH7RG, 120/277 VAC, 0.09 A at 277 V, Legend: EXIT, LED Lamp, 3.79 W Lamp, Red/Green Light, Ceiling/End/Wall Mounting, Nickel-Cadmium Battery Power Source, Thermoplastic Housing Material, White Housing Finish, 8-1/4 in H x 16-9/16 in W x 2-5/16 in D Dimensions
Specifications
Amperage Rating |
0.09 A at 277 V |
Dimensions |
8-1/4 in H x 16-9/16 in W x 2-5/16 in D |
Housing Finish |
White |
Housing Material |
Thermoplastic |
Lamp Type |
LED |
Lamp Wattage |
3.79 W |
Legend |
EXIT |
Light Color |
Red/Green |
Mounting Type |
Ceiling/End/Wall |
Power Source |
Nickel-Cadmium Battery |
Series |
APCH7RG |
Type |
Universal |
Voltage Rating |
120/277 VAC |
Standard Approval |
UL 924 Listed|Title 20 Compliant|Damp location listed |
Documentation
https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Sure_Lites_APC7RG_Specification_Sheet.pdf https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Sure_Lites_APC7RG_Specification_Sheet.pdf
