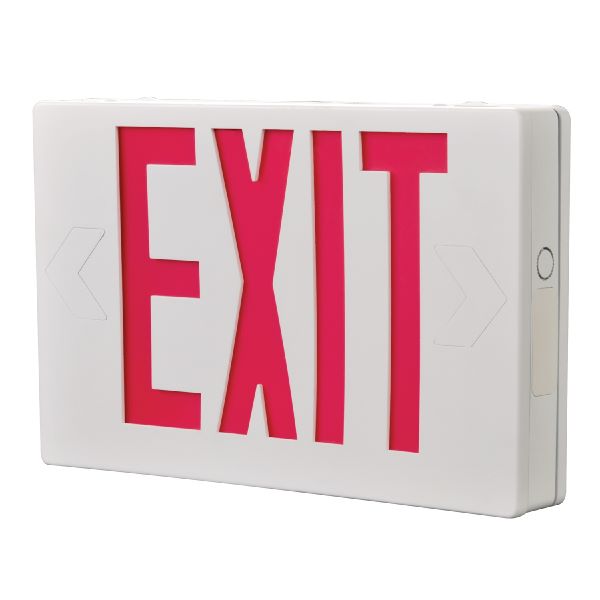

Sure-Lites APX7G
Sure-Lites ALL-PRO™ APX7G Self-Powered Emergency Exit Lamp, LED Lamp, 0.93/1.05 W Fixture, 120/277 V AC, EXIT Legend
Brand: Sure-Lites
Item ID: 484983
MPN: APX7G
Login for Price
Features
- Long life LED lamps provide uniform diffused illumination
- 0.93/1.05 W input power
- 0.11/0.05 power factor
- 60 Hz frequency rating
- Nickel cadmium battery
- 90 min battery runtime
- Exit sign commercial fixture
Description
The ALL-PRO™ Series exit (APX6/APX7) is the most economical LED exit for general purpose applications. The durable, injection molded, thermoplastic material resists discoloration due to UV radiation and the energy efficient, low maintenance LED provide bright illumination. All AP Series exits offer universal configurations (single and double face) and have universal mounting capability (ceiling, wall, end).
Sure-Lites ALL-PRO™ Emergency Exit Lamp, Self-Powered, Series: APX, 120/277 V AC, 0.93/1.05 W Fixture, 0.07 A, EXIT Legend, LED Lamp, 0.78 W Lamp, 1 Lamps, White Light, Ceiling/Wall Mount, Thermoplastic Housing, 9-1/2 in L x 6-5/8 in W x 7-1/2 in H
Specifications
Amperage Rating |
0.07 A |
Dimensions |
9-1/2 in L x 6-5/8 in W x 7-1/2 in H |
Fixture Wattage |
0.93/1.05 W |
Housing Material |
Thermoplastic |
Lamp Type |
LED |
Lamp Wattage |
0.78 W |
Legend |
EXIT |
Light Color |
White |
Mounting Type |
Ceiling/Wall |
Number of Lamps |
1 |
Series |
APX |
Type |
Self-Powered |
Voltage Rating |
120/277 V AC |
Standard Approval |
BAA Compliant|ECCN EAR99NLR|UL 924 |
Application |
Commercial Lighting and Damp Locations Applications |
Documentation
https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_09a028d56fa55394e2b1c6e9739380b541122631dc5ca13b7d07080429f1e807.pdf https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_09a028d56fa55394e2b1c6e9739380b541122631dc5ca13b7d07080429f1e807.pdf
https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_a03cec22c44cc5d72aeb1cf6adf85013ca7f5df4e87f8ca9cb94d8e7e5a96072.pdf https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_a03cec22c44cc5d72aeb1cf6adf85013ca7f5df4e87f8ca9cb94d8e7e5a96072.pdf
https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_5406c0f66a3cfff9d68250c585ab0aea7cbdf72c085dfb11c706f7f17d368d74.pdf https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_5406c0f66a3cfff9d68250c585ab0aea7cbdf72c085dfb11c706f7f17d368d74.pdf
