Halo E7RTAT

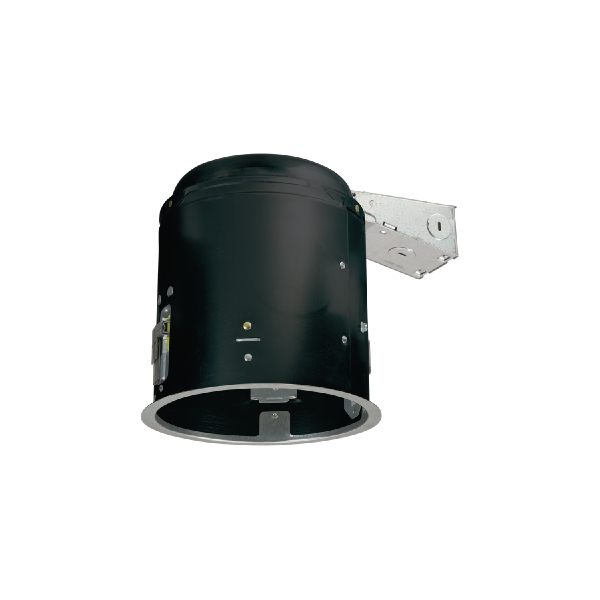

Halo E7RTAT Recessed Lighting Housing, 120 VAC
Brand: Halo
Item ID: 382998
MPN: E7RTAT
Login for Price
Features
- For use in non-insulated ceilings
Description
For use in non-insulated ceilings. Remodel housing design installs from below the finished ceiling. Exclusive remodel speed clamps securely lock from 3/8" to 2" ceilings. Air-Tite housing flange gasket. Air-Tite tested per ASTM E 283. Quick connect wiring tray with push-in wire nuts included. Hinged junction box with Slide-N-Side. Socket bracket adjusts lamp to various trim styles and designs
Halo Recessed Lighting Housing, 120 VAC, 150 W Lamp, Ceiling Mount, 6 in Dia, 15 in Height, 10-3/8 in Width
Specifications
Diameter |
6 in |
Height |
15 in |
Lamp Wattage |
150 W |
Mounting Type |
Ceiling |
Voltage Rating |
120 VAC |
Width |
10-3/8 in |
Application |
For lighting applications |
