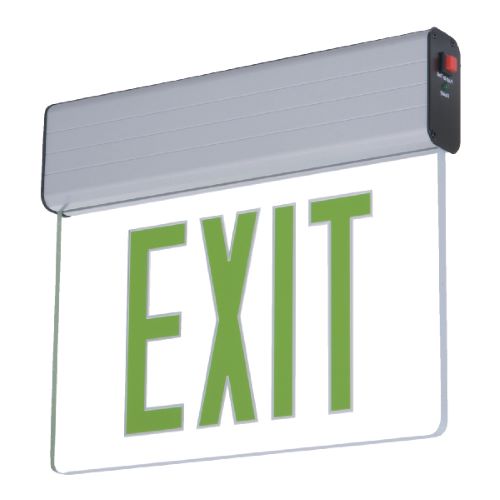

Sure-Lites EUS60G

Sure-Lites EUS60G EUS Universal Face Emergency Exit Sign Lamp, LED Lamp, 120 to 277 V AC, EXIT Legend

Brand: Sure-Lites

Item ID: 485453

MPN: EUS60G

Login for Price

Features

  • Green letter color
  • Solid state voltage limited charger
  • Solid state switching
  • Brownout circuit
  • Low voltage disconnect
  • Overload/short circuit protection
  • Test switch/power indicator light
  • All components including battery and electronics are located inside the exit housing
  • Eus series exit can be universally surface mounted, ceiling, wall, or end
  • Eur series exit is recess mounted in accessible ceiling only
  • Injection-molded, high impact, clear acrylic panel
  • Mirror background included with double face exits
  • Edge reflector for optimized efficiency and visibility
  • 3.6/4.5 W
  • White housing color

Description

The EU series edge-lit exit provides an attractive yet easy to install edge-lit exit sign. The crystal clear lens panel provides excellent light distribution and exit visibility. Long life, energy efficient LED lamps reduce energy costs and eliminate routine lamp maintenance.

Sure-Lites Emergency Exit Sign Lamp, Universal Face, Series: EUS, 120 to 277 V AC, 0.02/0.03 A, Legend: EXIT, LED Lamp, 3.6/4.5 W Lamp, 1 Lamps, White Light, Surface Mounting, AC Powered Battery Power Source, Die Cast Aluminum Housing Material, 16-1/4 in L x 12 in W x 5-7/8 in H

Specifications

Amperage Rating

0.02/0.03 A

Dimensions

16-1/4 in L x 12 in W x 5-7/8 in H

Housing Material

Die Cast Aluminum

Lamp Type

LED

Lamp Wattage

3.6/4.5 W

Legend

EXIT

Light Color

White

Mounting Type

Surface

Number of Lamps

1

Power Source

AC Powered Battery

Series

EUS

Type

Universal Face

Voltage Rating

120 to 277 V AC

Standard Approval

UL 924|NFPA 101|OSHA Compliant|Damp Location

Application

Lighting Applications

Documentation

https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_85e0aa25709074f0bb72187d9a169d2d1ab1b4be6dbfebbbc0da4f65f8831645.pdf https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_85e0aa25709074f0bb72187d9a169d2d1ab1b4be6dbfebbbc0da4f65f8831645.pdf

https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_35159285e4e52b711a312882e8202ee4b273d3059007da00c37e7fff5d3a5ca9.pdf https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_35159285e4e52b711a312882e8202ee4b273d3059007da00c37e7fff5d3a5ca9.pdf

https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_e41eacf4c41d774e38aeb6aa2c8e5a58af99efe5f3937f4f388104fd6d3ec41c.pdf https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_e41eacf4c41d774e38aeb6aa2c8e5a58af99efe5f3937f4f388104fd6d3ec41c.pdf

https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_5406c0f66a3cfff9d68250c585ab0aea7cbdf72c085dfb11c706f7f17d368d74.pdf https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_5406c0f66a3cfff9d68250c585ab0aea7cbdf72c085dfb11c706f7f17d368d74.pdf
