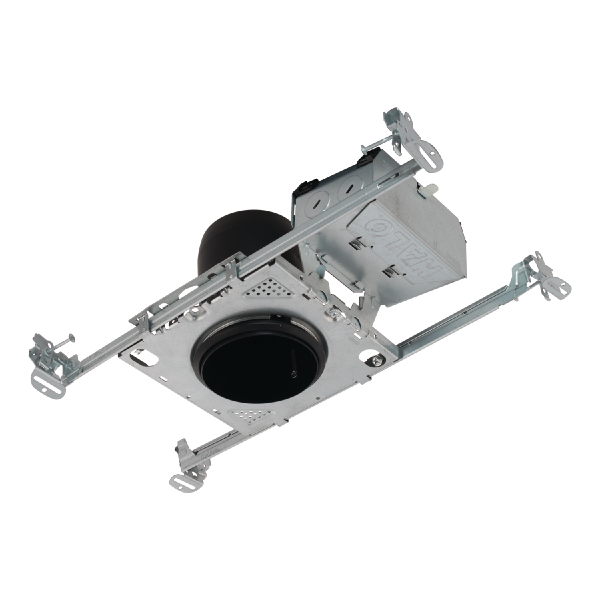

Halo H36PAR16ICAT

• Single wall deep drawn aluminum housing painted matte black for a visually dark interior
• Adjusts vertically to accommodate 1/2 to 1-1/4 in thick ceilings and locks in position with (3) setscrews
• V notches on plaster lip facilitate use of guide strings or laser lines for precise positioning
• Integral gasket provides for airtight compliance
• Shipped with overspray protector installed
• Housing can be removed from below the ceiling for service or splice inspection
• Compact galvanized steel plaster frame with integral bar hanger receivers
• Regressed screw provides positive horizontal bar hanger locking from below the ceiling
• Crimp points also provide for horizontal bar hanger locking
• Captive preinstalled Got-Nail™ bar hangers support housing at any point along span
• Pass-N-Thru™ feature adjust from 8 to 24 in W without removal
• Captive nail penetrates standard and engineered lumber
• Safety and guidance system prevents snagging, ensures smooth straight nail penetration and allows bar hangers to be easily removed and repositioned
• Leveling flange aligns plaster frame with structure
• Integral clip attaches directly to tee bar
• Universal mounting bracket accessory - accepts 1/2 in EMT, C channel and bar hangers
• Adjusts 3 in vertically from above or below the ceiling
• Compact galvanized steel junction box with 16 cu-in internal volume
• GU10 socket for 120 V LED PAR16 lamps
• Compatible with a broad range of trim styles and optical distributions

Recessed 3 in aperture shallow new construction housing with integral step down transformer for use with low voltage LED or Halogen PAR16 lamps. Suitable for 2 x 6 residential framing or shallow plenum commercial construction and meets restrictive airflow requirements. Insulation must be kept 3 in from top and sides of housing. Use with compatible Halo trims and PAR16 lamps (by others) providing a broad range of trim styles and optical distributions.

Halo Light Housing, Line Voltage New Construction Shallow, 120/277 V, 3.42 in Ceiling Opening, LED/PAR16 Halogen Lamp, 1 Lamp, IP44 Enclosure, Ceiling Mounting, For Use With: Halo LED Integrated Trims or Modules, 3 in Diameter, 4.48 in Height, 9.28 in Width, Aluminum Housing Material, Black
