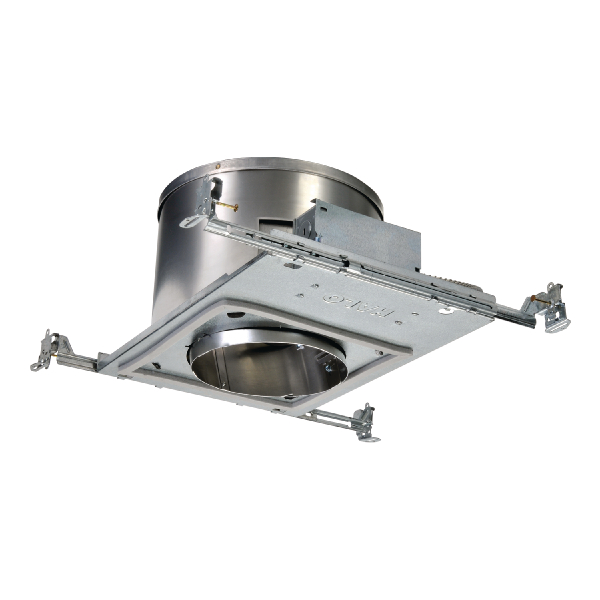

Halo H47ICAT
Halo AIR-TITE® H47ICAT H4 Series New Construction Round Recessed Sloped Housing, Incandescent Lamp, Insulated Insulation, 120 VAC, 6-3/4 in Ceiling Opening, Steel Housing
Brand: Halo
Item ID: 84829
MPN: H47ICAT
Login for Price
Features
- Got-Nail™ bar hangers
- Pass-N-Thru™ toolless shortening of bar hangers
- Slide-N-Side™ wire traps
- Thermally protected
- Die formed housing and plaster frame
- Socket aiming for ceilings from 2/12 to 6/12 pitch
- Slope indicator provides quick and consistent lamp settings
Description
The Halo H47ICAT is designed for sloped ceiling installations for ceilings from 2/12 to 6/12 pitch. The socket aiming mechanism allows the lamp to be aimed straight down in accordance with ceiling pitch (2/12 to 6/12). Designed for use in insulated ceilings. H47ICAT is sealed and gasketed to limit airflow between plenum and heated or air conditioned areas.
Halo AIR-TITE® Recessed Sloped Housing, New Construction Round, Series: H4 Series, 120 VAC, 6-3/4 in Ceiling Opening, Incandescent Lamp, 90 W Lamp, 1 Lamps, Insulated Insulation, Ceiling Mount, For Use with: 2/12 to 6/12 Pitch Ceiling, 6 in Dia, 7-1/8 in Height, 10-1/2 in Width, 14-3/4 in D, Steel Housing, Silver
Specifications
Ceiling Opening |
6-3/4 in |
Color |
Silver |
Depth |
14-3/4 in |
Diameter |
6 in |
Height |
7-1/8 in |
Housing Material |
Steel |
Insulation Type |
Insulated |
Lamp Type |
Incandescent |
Lamp Wattage |
90 W |
Mounting Type |
Ceiling |
Number of Lamps |
1 |
Series |
H4 Series |
Suitable For Use With |
2/12 to 6/12 Pitch Ceiling |
Type |
New Construction Round |
Voltage Rating |
120 VAC |
Width |
10-1/2 in |
Standard Approval |
UL Listed|cUL Listed|CSA Certified|ASTM E283|California Title 24|IECC Certified|ECCN:EAR99NLR|cULus Listed |
Application |
Damp Locations and Lighting Applications |
Documentation
Instruction/Installation Manual https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_384b8bc4fb92bbd92893599a179d14a256162e3dfeb1ae8948a357a70df0786c.pdf
Specification Sheet https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_eded16247d72dbb1e702cfbbe391943f0a9da266b9f6f32f052eda6b8570d957.pdf
Warranty Information https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_5406c0f66a3cfff9d68250c585ab0aea7cbdf72c085dfb11c706f7f17d368d74.pdf
