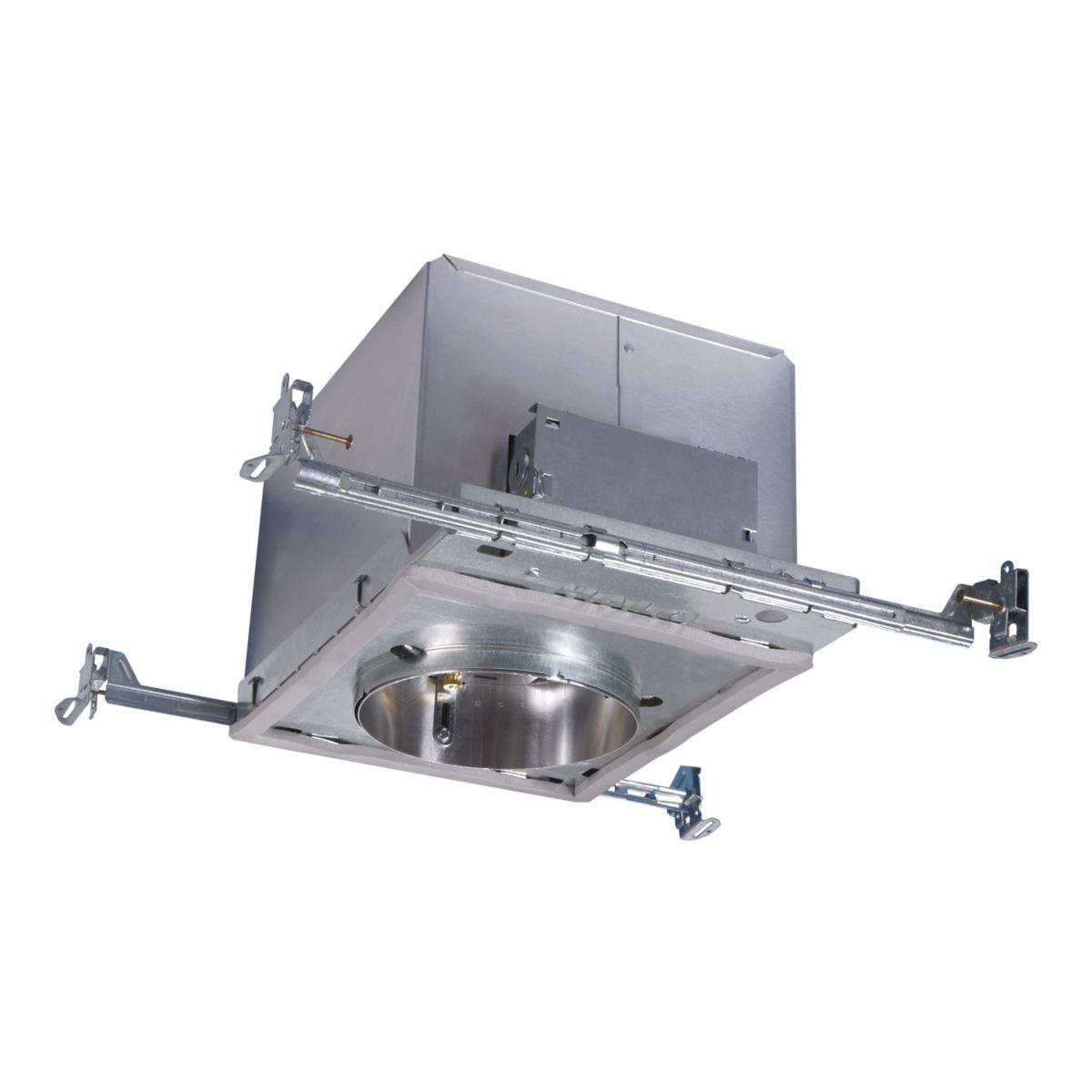

Halo H645IC

• Pass-N-Thru™ toolless shortening of bar hangers
• Slide-N-Side™ wire traps
• QuickConnect™ wiring connectors included in junction box
• Thermally protected
• Die formed housing and plaster frame
• Socket aiming for ceilings from 2/12 to 12/12 pitch
• Slope indicator provides quick and consistent lamp settings
• AIR-TITE® sealed and gasketed to limit airflow between plenum and heated or air conditioned areas
• Pre-wired with (7) 1/2 in knockout junction box
• Round aperture matches other recessed downlights and provides a clean finished look
• Exclusive socket aiming mechanism swivels and rotates to properly align lamp
• Designed for sloped ceiling installations for ceilings
• AIR-TITE® housing designed to prevent airflow between living spaces and unconditioned areas
• Insulated/slope ceiling
• Round shape
• 75 W power rating
• Die formed aluminum housing
• Got-Nail™ bar hangers
• Porcelain socket

Designed for sloped ceiling installations for ceilings from 2/12 to 12/12 pitch. The socket aiming mechanism allows the lamp to be aimed straight down in accordance with of ceiling pitch (2/12 to 12/12). H645IC is designed for use in insulated ceilings where the housing will be in direct contact with insulation. H645IC is AIR-TITE® gasketed to limit airflow between conditioned spaces and unconditioned areas.

Halo, H645IC, Recessed Sloped Housing, Line Voltage, 120 V AC, 6-1/2 in Ceiling Opening, PAR30L/R30/BR30 Incandescent Lamp, 1 Lamps, IC Insulation, Ceiling Mounting, For Use With: Halo Recessed Downlight Fixture, 6 in Diameter, 8 in Height, 14-3/4 in Width, 7-3/8 in Depth, Aluminum Housing Material
