Halo H7RICT

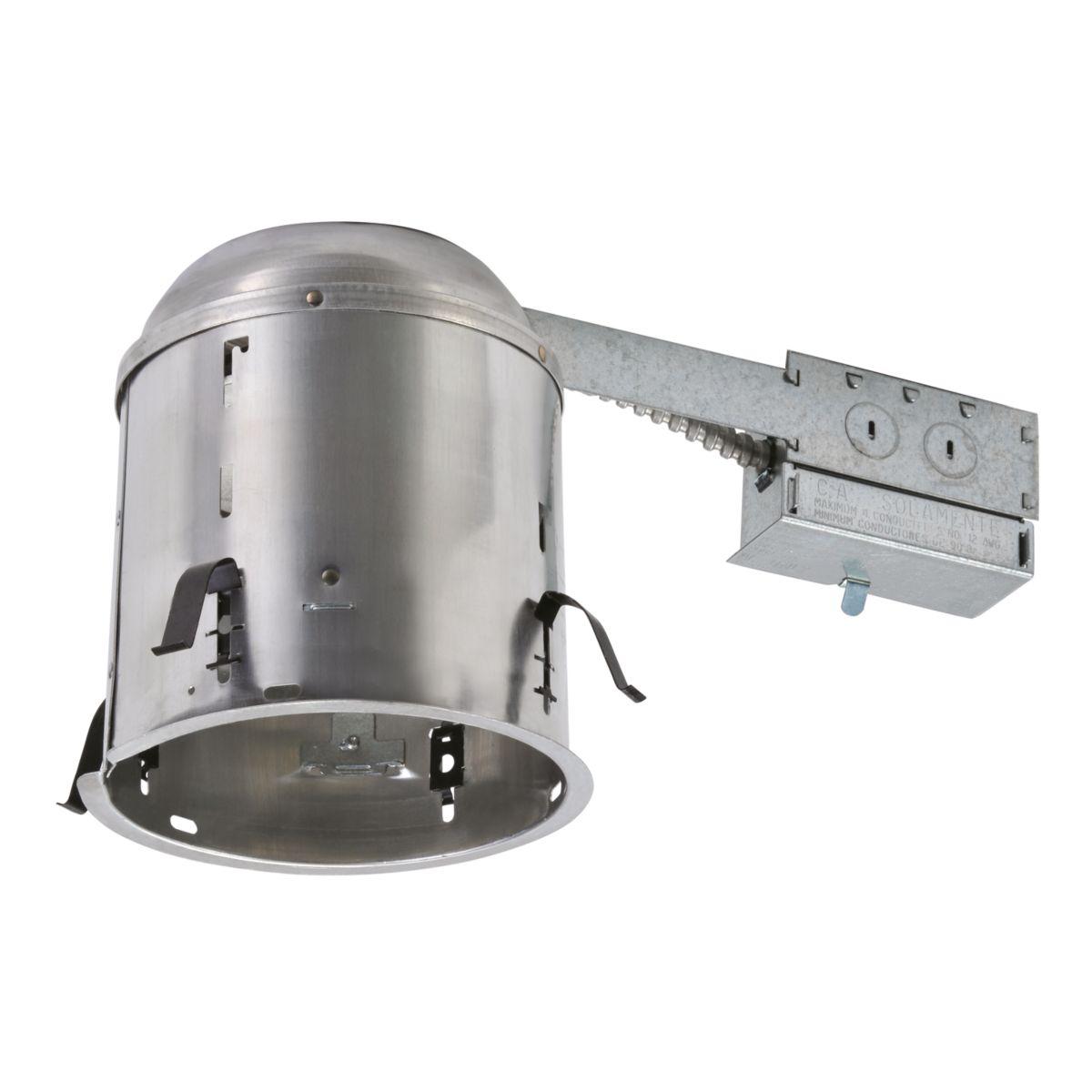

Halo H7RICT H7 Series Line Voltage Remodel Recessed Lighting Housing, Incandescent Lamp, IC Insulation, 120 V AC, 6-1/2 in Ceiling Opening, Aluminum Housing
Brand: Halo
Item ID: 490163
MPN: H7RICT
Login for Price
Features
- QuickConnect™ wiring connectors included in junction box
- Thermally protected
- Die formed housing
- Remodel springs accommodate 1/2 and 5/8 in ceiling material
- NM cable pryouts and conduit knockouts in junction box
- Housing may be removed from plaster frame for junction box access
Description
The H7 family of recessed housings are the standard in the industry for both commercial and residential applications. The wide variety of trims available allows a number of different lighting effects to be created with one basic housing. The H7RICT is designed for installations where the housing will be in direct contact with insulation. H7RICT may be converted into AIR-TITE® installation when used with AIR-TITE® trims.
Halo Recessed Lighting Housing, Line Voltage Remodel, Series: H7 Series, 120 V AC, 6-1/2 in Ceiling Opening, Incandescent Lamp, 1 Lamps, IC Insulation, Ceiling Mount, For Use with: Halo General Purpose Downlight, 6 in Dia, 7-3/4 in Height, 6-3/4 in Width, Aluminum Housing
Specifications
Ceiling Opening |
6-1/2 in |
Diameter |
6 in |
Height |
7-3/4 in |
Housing Material |
Aluminum |
Insulation Type |
IC |
Lamp Type |
Incandescent |
Mounting Type |
Ceiling |
Number of Lamps |
1 |
Series |
H7 Series |
Suitable For Use With |
Halo General Purpose Downlight |
Type |
Line Voltage Remodel |
Voltage Rating |
120 V AC |
Width |
6-3/4 in |
Standard Approval |
UL Listed for Damp Locations|cUL Listed|CSA Certified|ECCN:EAR99NLR|Title 24 Compliant |
Application |
Wet Locations and Lighting Applications |
