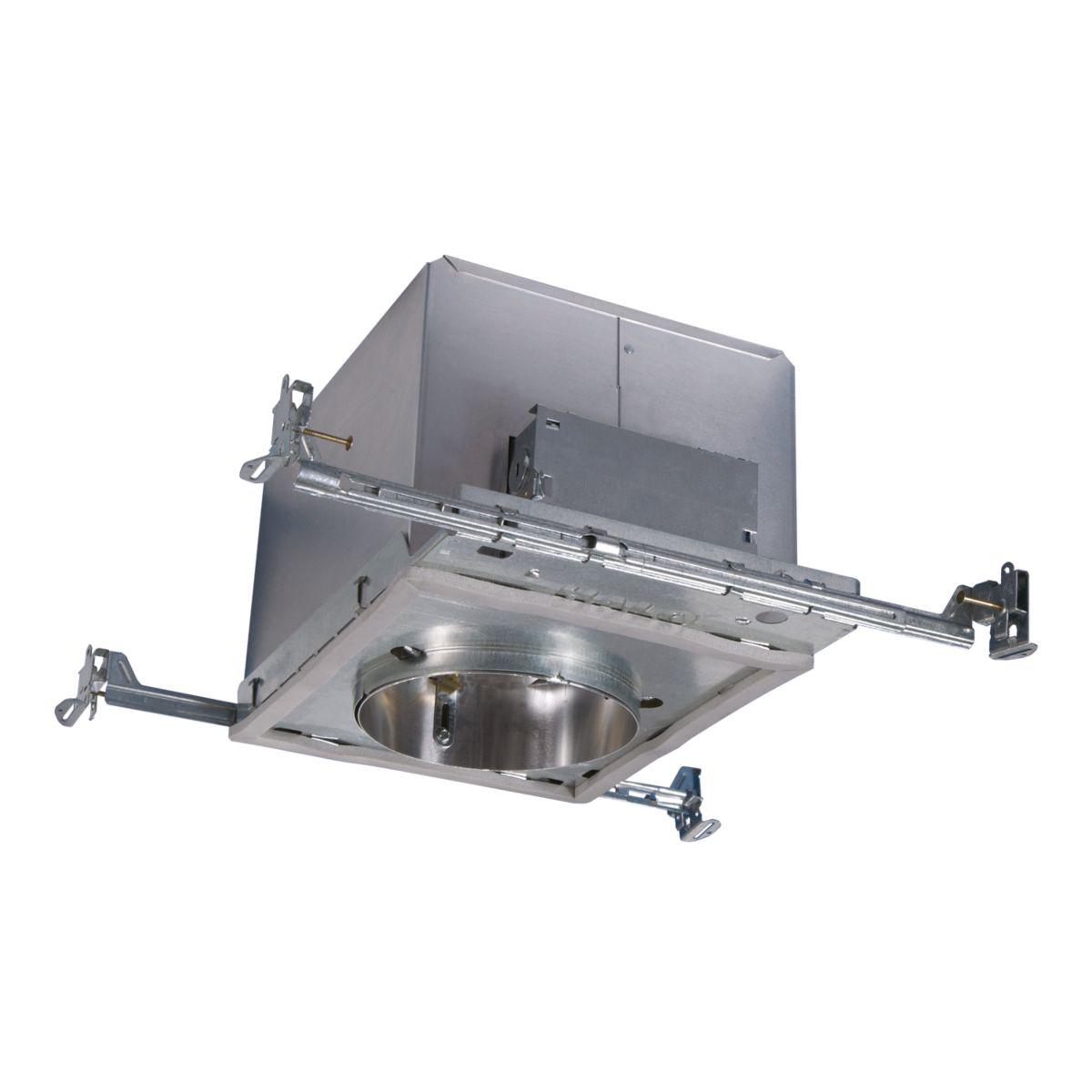

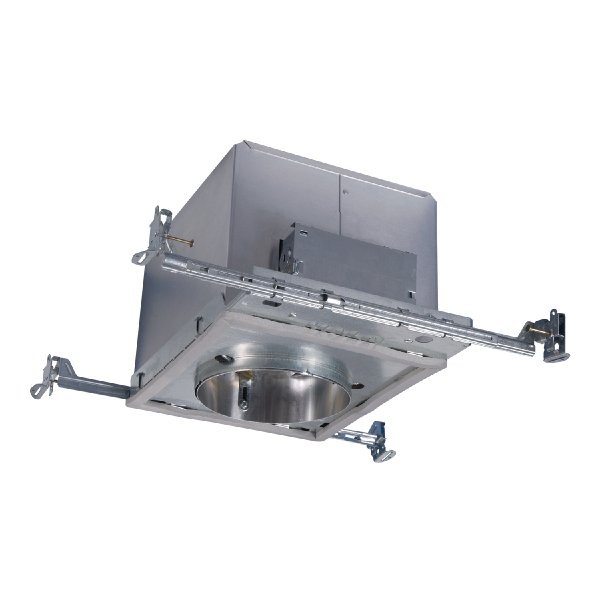

Halo H7UICAT

• Pass-N-Thru™ toolless shortening of bar hangers
• Slide-N-Side™ wire traps
• QuickConnect™ wiring connectors included in junction box
• Thermally protected
• Die formed housing and plaster frame
• Housing may be removed from plaster frame for junction box access
• Designed to be used in direct contact with insulation
• Housing is suited for use in insulated ceilings in residential and commercial applications
• IC construction allows an unbroken insulation barrier to be maintained
• AIR-TITE® construction allows the housing to meet restricted airflow requirements
• Housing can be positioned at any point within 24 in joist span
• Pass-N-Thru™ feature allows bar hangers to be shortened without removing from plaster frame score lines allow toolless shortening for 12 in joists
• Bar hangers may be repositioned 90 deg, integral T-bar clip snaps onto T-bars
• Porcelain socket with nickel plated brass screw shell, snaps into socket plate or into socket supporting trim for consistent lamp positioning
• Self-resetting thermal protector deactivates fixture if overheating occurs due to improper lamping or incorrect applications of insulation material
• Round shape
• It features quick-connect wiring connectors included in junction box with seven 1/2 in pryout knockout four romex pryout knockout and is thermally protected
• Die cast aluminum housing material
• Got-Nail™ bar hangers
• The IC construction allows an unbroken insulation barrier to be maintained

The H7UICAT universal housing is designed to support the use of higher wattage lamps than single wall housings (depending upon the trim). The H7 recessed housing is the standard in the industry for both light commercial and residential applications. H7 series features full frame design, robust construction, feed-through listing and got nail bar hangers. A wide variety of trims allows a number of different lighting effects to be created with one basic Housing. H7UICAT is for installations where the housing will be in direct contact with insulation, and its AIR-TITE® design will also meet restricted air flow code requirements. May be retrofit with compatible Halo LED lighting systems.

Halo, H7UICAT, Aluminum Recessed Housing, Series: H7 Series, 120 V AC, 6-1/2 in Ceiling Opening, Incandescent Lamp, 1 Lamps, IC Insulation, For Use With: Insulated Ceilings, 6 in Diameter, 4-1/4 in Height, 10-7/8 in Width, 7-1/4 in Depth, Aluminum Housing Material, White
