Halo HL36SAR20930ED010TAT

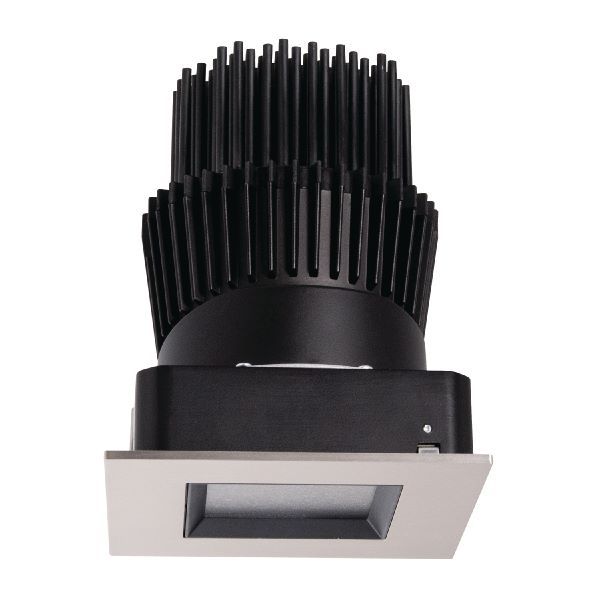

Halo HL36SAR20930ED010TAT Square Shallow Directional Remodeler LED Module, LED Lamp, 20 W Fixture, 120 to 277 V
Brand: Halo
Item ID: 506514
MPN: HL36SAR20930ED010TAT
Login for Price
Features
- 3 in square directional remodel LED module
- Install from below the ceiling (does not require recessed housing or junction box)
- Flicker-free dimming down to 1%, available with LE/TE phase cut and 0 to 10 V analog control
- Wet location listed for showers and protected ceilings with select trims
- 0.168 A at 277 V amperage rating
Description
Halo Remodeler LED Module, Square Shallow Directional, Series: HL36SAR, 120 to 277 V, 20 W Fixture, 0.168 A, LED Lamp, 1 Lamp, 50000 hr Average Life, 3000 K Color Temperature, 90 CRI, 0 to 10 V Dimmable Ballast, 4.36 in L x 4.36 in W x 5.58 in H Dimensions
Specifications
Amperage Rating |
0.168 A |
Average Life |
50000 hr |
Ballast Type |
0 to 10 V Dimmable |
Color Rendering Index (CRI) |
90 |
Color Temperature |
3000 K |
Dimensions |
4.36 in L x 4.36 in W x 5.58 in H |
Fixture Wattage |
20 W |
Lamp Type |
LED |
Number of Lamps |
1 |
Series |
HL36SAR |
Type |
Square Shallow Directional |
Voltage Rating |
120 to 277 V |
Standard Approval |
AIR-TITE™ Certified|ASTM E283-04|California Title 20 Compliant|California Title 24 Compliant|ECCN: EAR99NLR|EMI/RFI FCC 47CFR Part 15|ENERGY STAR Certified|IECC Compliant|IES LM-79-08 Compliant|IES LM-80-08 Compliant|NEC® 410.16|NEMA LSD57-2013|RoHS Compliant|TM21-11 Compliant|UL Listed for Damp Location |
Application |
Residential, Light Commercial and Lighting Applications |
