Halo HLBPH4069FS1EMWR

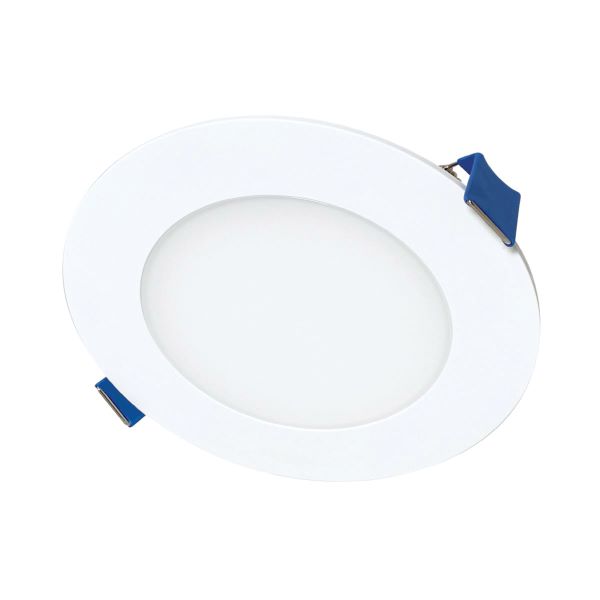

Halo HLBPH4069FS1EMWR Slim Edge LED Canless Downlight With Plastic Housing and Remote Driver/Junction Box, LED Lamp, 10 W Fixture, 4 in Ceiling Opening, 120 V, Plastic Housing
Brand: Halo
Item ID: 517288
MPN: HLBPH4069FS1EMWR
Login for Price
Features
- Canless installation, no housing required
- Wet location listed for showers and protected ceilings
Description

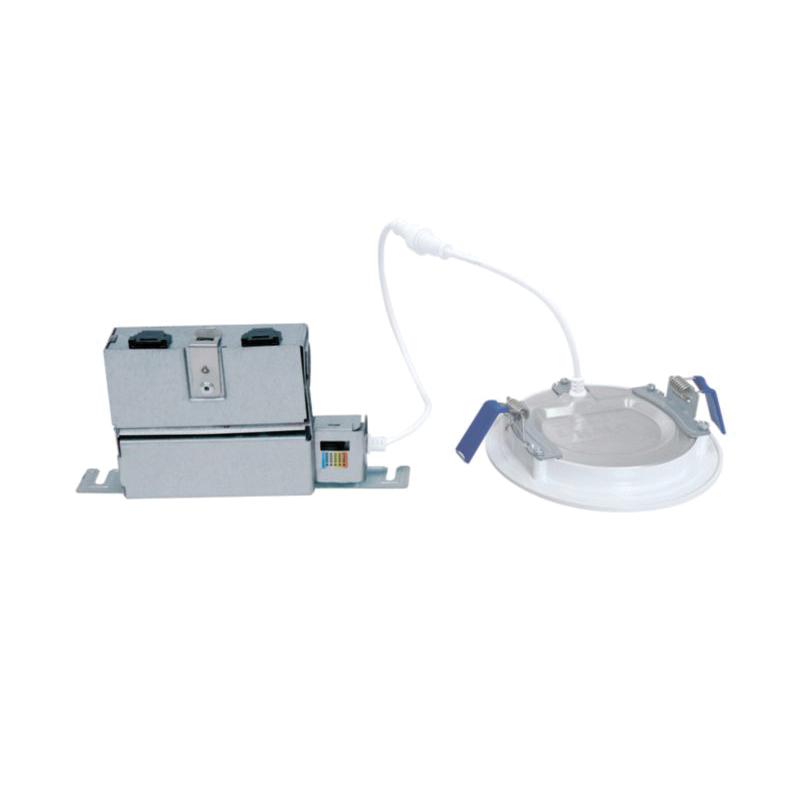

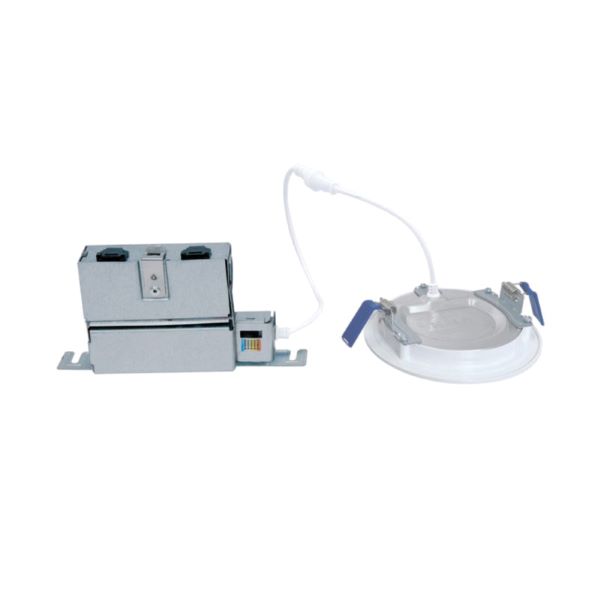

The Halo HLB 4 in slim edge is an ultra-thin LED canless direct mount downlight with a remote junction box and driver, making it ideal for new construction and renovation work. The downlight is just 1/2 in thick and does not require a recessed housing for installation. It's perfect for tight plenum spaces and saves you time and money on installation. Selectable color temperature and selectable lumens make this downlight perfect for virtually any application.
Halo LED Canless Downlight, Slim Edge, Series: HLBPH4, 120 V, 10 W Fixture, 0.083 A, seleCCTable® Lighting Technology, LED Lamp, 80.5 Lumens/W Light Output, 4 in Ceiling Opening, Matte White Flange Recessed Trim, 50000 hr Average Life, Bright White Light, 5000 K Color Temperature, 90 CRI, 5% Cut LE/TE Phase Dimming Ballast, Smooth Lens, 830 Lumens, IP44 Enclosure, Ceiling/Surface Mounting, Plastic Housing Material, 4.73 in Dia Dimensions
Specifications
Amperage Rating |
0.083 A |
Average Life |
50000 hr |
Ballast Type |
5% Cut LE/TE Phase Dimming |
Ceiling Opening |
4 in |
Color Rendering Index (CRI) |
90 |
Color Temperature |
5000 K |
Dimensions |
4.73 in Dia |
Enclosure Type |
IP44 |
Fixture Wattage |
10 W |
Housing Material |
Plastic |
Lamp Type |
LED |
Lens Type |
Smooth |
Light Color |
Bright White |
Light Output |
80.5 Lumens/W |
Lighting Technology |
seleCCTable® |
Lumens |
830 Lumens |
Mounting Type |
Ceiling/Surface |
Recessed Trim Type |
Matte White Flange |
Series |
HLBPH4 |
Type |
Slim Edge |
Voltage Rating |
120 V |
Standard Approval |
Air-Tite™ Certified|ASTM E283-04|California T24 Compliant|ENERGY STAR® Certified|FCC 47 CFR Part 15|IECC Certified|IES LM-79-08/80-08|NEC 410.16|NEMA LSD57-2013|RoHS Compliant|TM-21-11|UL Listed |
Application |
Residential Applications |
Documentation
Catalog https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Cooper_HLBPH4069FS1EMWR_Catalog.pdf
Instruction/Installation Manual https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Cooper_HLBPH4069FS1EMWR_Manual.pdf
Specification Sheet https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Cooper_HLBPH4069FS1EMWR_Specification_Sheet.pdf
VIDEO LINK https://www.assets.cooperlighting.com/is/content/Signify/22db4ec1a13547ffba39ad630129f2ca
