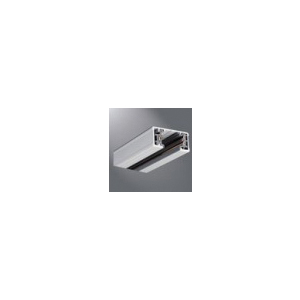

Halo L642MB

• 0.06 in nominal wall thickness
• Solid copper busbar cross section equivalent to 12 AWG wire, encased in rigid extruded PVC insulator
• Rigid extruded polyvinyl insulator
• Exclusive independent grounding bus conductor, maintains an independent positive ground 12 AWG path between lampholder, trac channel and building's ground system
• Cross section equivalent of 12 AWG wire neutral conductor
• Visual polarity groove indicates proper electrical installation of lampholder adapter
• All halo-2 Power-Trac™ is shipped from the factory with a "LEFT" dead end installed
• The L941 live end connector is designed to attach to the right hand side of the track
• Locate small polarity indicator on the connector and align with polarity groove on track
• Track system is recommended for ceiling mount only, for alternate mounting methods consult factory
• 8 ft L nominal
• Designed for concise control of each circuit

Halo®-2 Power-Trac™ system provides two separate 20 A circuits. Each circuit can be independently switched. Provides maximum flexibility, with a miniature profile. Suitable for a wide range of commercial, merchandising and residential applications. Electrical capacity is 20 A per circuit when properly balanced. Installing lampholders is simple. An adjustable contact allows selection of the circuit position. Lift or lower the contact until it touches the plastic stop of the assembly. For circuit no 1 move contact to the down position. For circuit no 2 move contact to the up position. Halo® 2-circuit track accepts both Halo® and lazer by Halo® lamp holders.

Halo Power-Trac™ Miniature Track System, 2-Circuit, 94 in Length, 1-3/4 in Width, 11/16 in D, For Use With: Halo and Lazer-by-Halo Lamp Holder, Aluminum, Matte, Black, 1-3/4 in H
