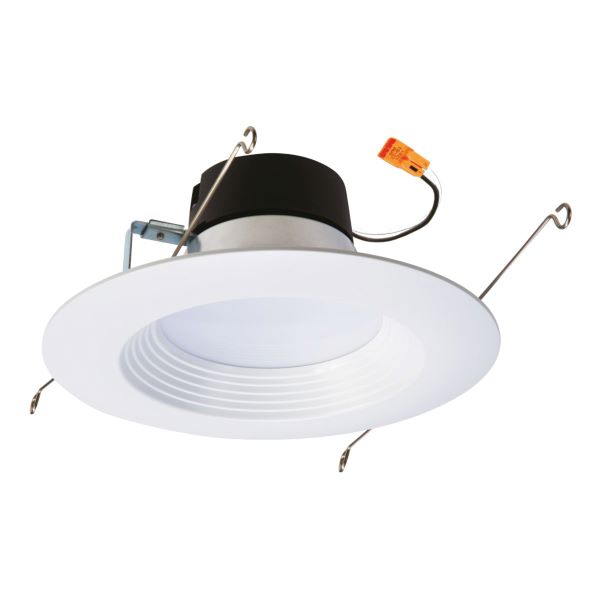

Halo LT56069FS351EWHR

Halo LT56069FS351EWHR All-Purpose LED Retrofit Module, LED Lamp, 6.97 W Fixture, 5 in, 6 in Ceiling Opening, 120 V, Plastic Housing

Brand: Halo

Item ID: 508145

MPN: LT56069FS351EWHR

Login for Price

Features

  • Achieving L70 at 35000 hr in IC and non-IC applications
  • Plastic construction is impact resistant and non-corrosive
  • Retrofits into existing Halo 5 in or 6 in new construction or remodel housings
  • 120 V input, dimmable down to 10% with select phase cut dimmers
  • Dead front, Airtite™, wet location listed, IC rated

Description

Ideal as an energy saving retrofit solution, but also suitable for new construction and remodeling installations, the 5 in/6 in LT SeleCCTable™ downlight is an LED module for use in 5 in and 6 in aperture recessed downlights. It features two field selectable CCT options (2700 K, 3000 K, 3500 K or 3000 K, 4000 K, 5000 K) as well as a smooth splay or a traditional baffle trim. The LT series is dead front, wet location listed, Airtite™, IC rated and compatible with Halo new construction and remodel housings. The LT series is perfect for residential down lighting applications with its versatile installation, attractive design and energy efficiency.

Halo LED Retrofit Module, All-Purpose, Series: LT56, 120 V, 6.97 W Fixture, 0.06 A, seleCCTable® Lighting Technology, LED Lamp, 1 Lamp, 88 Lumens/W Light Output, 5 in, 6 in Ceiling Opening, Baffle/Matte White Flange Recessed Trim, 35000 hr Average Life, Bright White Light, 5000 K Color Temperature, 90 CRI, 10% Dimming Ballast, Diffuse Injection Molded Lens, 600 Lumens, Ceiling Mounting, Plastic Housing Material, 7.22 in Dia x 3.38 in H Dimensions

Specifications

Amperage Rating

0.06 A

Average Life

35000 hr

Ballast Type

10% Dimming

Ceiling Opening

5 in, 6 in

Color Rendering Index (CRI)

90

Color Temperature

5000 K

Dimensions

7.22 in Dia x 3.38 in H

Fixture Wattage

6.97 W

Housing Material

Plastic

Lamp Type

LED

Lens Type

Diffuse Injection Molded

Light Color

Bright White

Light Output

88 Lumens/W

Lighting Technology

seleCCTable®

Lumens

600 Lumens

Mounting Type

Ceiling

Number of Lamps

1

Recessed Trim Type

Baffle/Matte White Flange

Series

LT56

Type

All-Purpose

Voltage Rating

120 V

Standard Approval

Air-Tite™ Certified|ASTM E283|California T20/24 Compliant|ENERGY STAR® Certified|FCC 47 CFR Part 15|IECC Certified|IES LM-79-08/80-08|NEC 410.16|RoHS Compliant|TM-21-11|UL Listed

Application

Residential Applications

Documentation

Catalog https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Cooper_LA4069271EWHCA_Catalog.pdf

Instruction/Installation Manual https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Cooper_LT56069FS231EWHR_Manual.pdf

Specification Sheet https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Cooper_LT56069FS231EWHR_Specification_Sheet.pdf
