Greengate OAC-DT-2000-MV

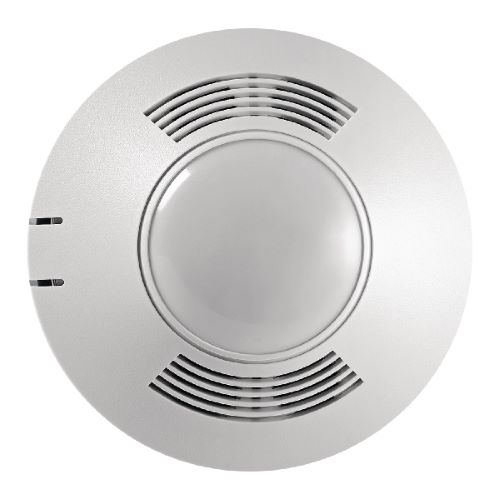

Greengate OAC-DT-2000-MV OAC-DT Line Voltage MicroSet Ceiling Mount Occupancy Sensor, 120 to 347 V AC, Dual Technology/Passive Infrared/Ultrasonic Sensor, 2000 sq-ft Coverage, 360 deg Viewing
Brand: Greengate
Item ID: 512172
MPN: OAC-DT-2000-MV
Login for Price
Features
- For indoor use only
- Self-adjustable, 15 sec/test (10 mins auto) or selectable 5/15/30 mins or zero time delay
- MicroSet self-adjusting time delay and sensitivity
- Built-in light level sensor
- Products tested to NEMA WD7-2011 occupancy motion sensors standard
Description
The dual technology sensor's combination of ultrasonic and passive infrared technologies offers the most complete sensing equipment available today. MicroSet self-adjusting dual technology sensors drastically simplify and reduce a contractor's installation and adjustment time period.
Greengate, OAC-DT-2000-MV, MicroSet Ceiling Mount Occupancy Sensor, Line Voltage, Series: OAC-DT, 120 to 347 V AC, 3 A, 800/1200/1500/2700 W Power, Dual Technology/Passive Infrared/Ultrasonic Sensor, 2000 sq-ft Coverage, 360 deg Viewing, 5/10/15/30 min Time Delay, LED Lamp, 50/60 kHz Response, Automatic On Control Output, NEMA WD7 Enclosure, 32 to 104 deg F, Polycarbonate, White, 4.5 in W x 1.42 in H Dimensions
Specifications
Amperage Rating |
3 A |
Color |
White |
Control Output |
Automatic On |
Coverage |
2000 sq-ft |
Dimensions |
4.5 in W x 1.42 in H |
Enclosure Type |
NEMA WD7 |
Lamp Type |
LED |
Material |
Polycarbonate |
Power Rating |
800/1200/1500/2700 W |
Response Frequency |
50/60 kHz |
Sensor Type |
Dual Technology/Passive Infrared/Ultrasonic |
Series |
OAC-DT |
Temperature Rating |
32 to 104 deg F |
Time Delay |
5/10/15/30 min |
Type |
Line Voltage |
Viewing Angle |
360 deg |
Voltage Rating |
120 to 347 V AC |
Standard Approval |
cULus Listed|FCC Approved|RoHS Compliant|UL 94-V-0 Flammability Rated|California Title 20 Compliant|ECCN: EAR99NLR|FCC Certified |
Application |
Classrooms, Conference Rooms, Office Spaces, Common Areas, Computer Rooms, Break Rooms, Hallways, Lighting and Other Indoor Office Spaces |
Documentation
https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_5af814ad8b05a63617564b305759b1bdb4185db92a0a988d03f9be144de5cc62.pdf https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_5af814ad8b05a63617564b305759b1bdb4185db92a0a988d03f9be144de5cc62.pdf
https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_5406c0f66a3cfff9d68250c585ab0aea7cbdf72c085dfb11c706f7f17d368d74.pdf https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_5406c0f66a3cfff9d68250c585ab0aea7cbdf72c085dfb11c706f7f17d368d74.pdf
