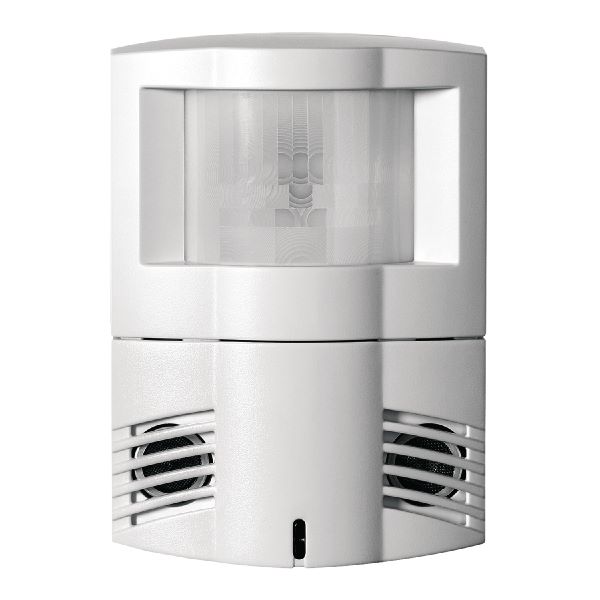

Greengate OAWC-DT-120W
Greengate OAWC-DT-120W Self-Adjusting Wide Angle Wall/Corner Sensor, 0 to 30 V DC, Ultrasonic/PIR/Dual Technology/Occupancy and Vacancy Sensor, 1200 sq-ft Coverage, 120 deg Viewing
Brand: Greengate
Item ID: 541857
MPN: OAWC-DT-120W
Login for Price
Features
- MicroSet self-adjusting time delay and sensitivity
- NEMA WD7 guide robotic method utilized to verify coverage patterns
- Manual on feature for use with 1 or 2 momentary switches controlling 1 or more switchpacks (GMD switch)
- Selectable walk-through mode
Description
The dual technology sensor's combination of ultrasonic and passive infrared technologies offers the most complete sensing equipment available today. Self-adjusting dual technology sensors drastically simplify and reduce a contractor's installation and adjustment time period.
Greengate Wall/Corner Sensor, Self-Adjusting Wide Angle, 0 to 30 V DC, 25 mA, 120 W, Ultrasonic/PIR/Dual Technology/Occupancy and Vacancy Sensor, 1200 sq-ft Coverage, 120 deg Viewing, 15 s to 30 min Delay, LED/Fluorescent Lamp, Auto ON/Manual ON Control Output, NEMA WD7, 32 to 104 deg F, Polycarbonate, 3.4 in W x 2 in D x 4.4 in H
Specifications
Amperage Rating |
25 mA |
Control Output |
Auto ON/Manual ON |
Coverage |
1200 sq-ft |
Dimensions |
3.4 in W x 2 in D x 4.4 in H |
Enclosure Type |
NEMA WD7 |
Lamp Type |
LED/Fluorescent |
Material |
Polycarbonate |
Power Rating |
120 W |
Sensor Type |
Ultrasonic/PIR/Dual Technology/Occupancy and Vacancy |
Temperature Rating |
32 to 104 deg F |
Time Delay |
15 s to 30 min |
Type |
Self-Adjusting Wide Angle |
Viewing Angle |
120 deg |
Voltage Rating |
0 to 30 V DC |
Standard Approval |
cULus Listed|FCC Compliant|RoHS Compliant|UL 94V-0 |
Application |
Classrooms, Conference Rooms, Large Offices, Common Areas, Computer Rooms, Break Rooms and Lighting Applications |
