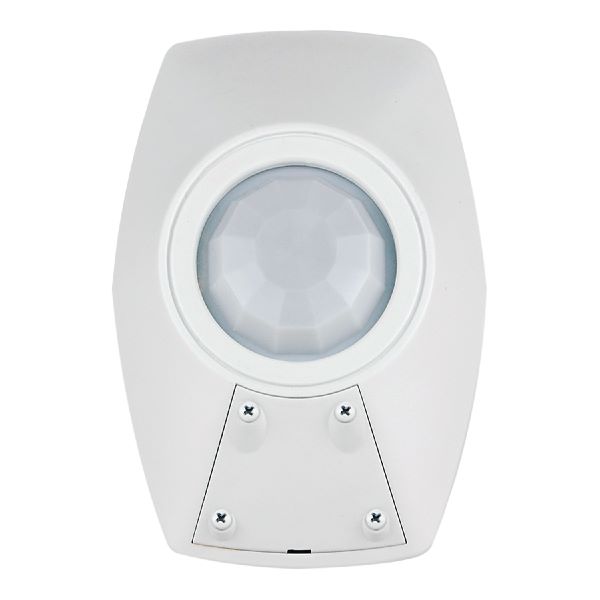

Greengate OXC-P-2MH0-R

• UL listed for damp locations
• OXC-P-2MH0-R works at heights up to 25 ft
• Ambient light control circuit to avoid false On/Off from brief changes in background light
• Temperature compensating circuitry avoids false activation in extreme conditions
• Lighting sweep function with selectable DIP switch prevents unnecessary "lights On" following power sweeps in facilities with computer control systems
• NEMA WD7 guide robotic method utilized to verify coverage patterns
• Products tested to NEMA WD7-2011 occupancy motion sensors standard
• When mounted at 25 ft, up to 25 ft in all directions or 50 linear ft for warehouse aisles

The passive infrared extreme temperature sensor provides consistent, stable coverage where extreme heat, cold or humidity must be accommodated and where there are wide fluctuations in temperature. Temperature compensating circuitry stabilizes sensitivity at temperatures -40 to 125 deg F.

Greengate Extreme Temperature Sensor, 2-Way, Series: OXC-P, Specifications: 10 to 30 V DC, 25 mA, Passive Infrared Sensor, 360 deg Viewing Angle, 15 s to 30 min Time Delay, Fixture Mount, -40 to 125 deg F Temperature Rating, ABS Resin, Red, 4-1/2 in W x 3-1/8 in D x 1-5/8 in H Dimensions
