Halo TL43R2GMWWB

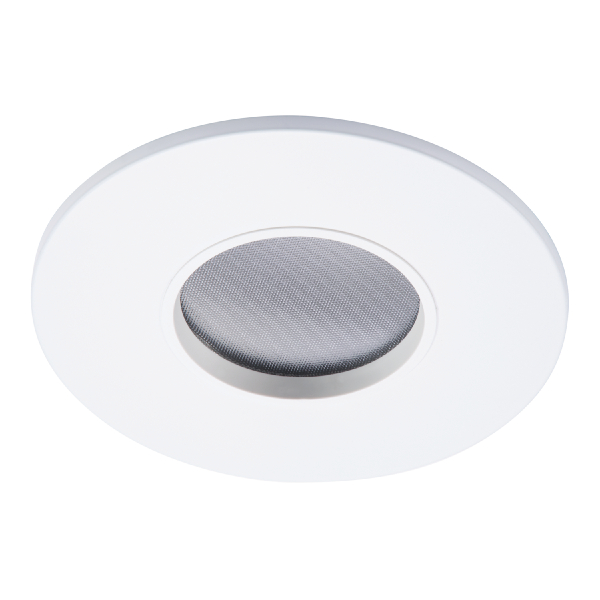

Halo TL43R2GMWWB Lensed Pinhole Round Lighting Trim, 2-5/16 in ID x 5 in OD, LED Lamp, For Use With 2 in Recessed Downlight Housing and 4 in ML4D Module, Die Formed Steel
Brand: Halo
Item ID: 453197
MPN: TL43R2GMWWB
Login for Price
Features
- Magnetic attachment holds trim tightly to ceiling and eliminates light leaks
- Diffuse clear lens provides light control and source shielding
Description
The round and square lens pinhole apertures soften the light with an integral diffuse lens. Magnetic attachment makes installation a snap and allows for minor adjustment accommodating real world construction tolerances. Available in painted and electro-plated finishes; the lens frame is available in white or black and color coordinated with the flange finish. Wet location listed.
Halo Lighting Trim, Lensed Pinhole Round, Series: TL43R, 2-5/16 in Inside Dia, 5 in Outside Dia, LED Lamp, 5-1/2 in Height, 1.2 in Width, For Use With: 2 in Recessed Downlight Housing and 4 in ML4D Module, Ceiling Mount, Die Formed Steel, Matte, White
Specifications
Color |
White |
Finish |
Matte |
Height |
5-1/2 in |
Inside Diameter |
2-5/16 in |
Lamp Type |
LED |
Material |
Die Formed Steel |
Mounting Type |
Ceiling |
Outside Diameter |
5 in |
Series |
TL43R |
Suitable For Use With |
2 in Recessed Downlight Housing and 4 in ML4D Module |
Type |
Lensed Pinhole Round |
Width |
1.2 in |
Standard Approval |
RoHS Compliant|ECCN:EAR99NLR |
Application |
For general and task lighting in low to medium height ceilings where energy savings, long life and optical control are required |
Documentation
Catalog https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_15e3c4b3d23eac0806ea594a3f3f63766e9c672cd0d3d6f339eb2c84083669ee.pdf
Instruction/Installation Manual https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_e282e2612ba2372c5ba9e2c6767b463e4df7a123c2587c9df1892637e905557b.pdf
Specification Sheet https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_bb0ca50a87d56f43d19b4ff63cbb69e371901885d01650c7e06ac7683d03522d.pdf
Warranty Information https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_5406c0f66a3cfff9d68250c585ab0aea7cbdf72c085dfb11c706f7f17d368d74.pdf
