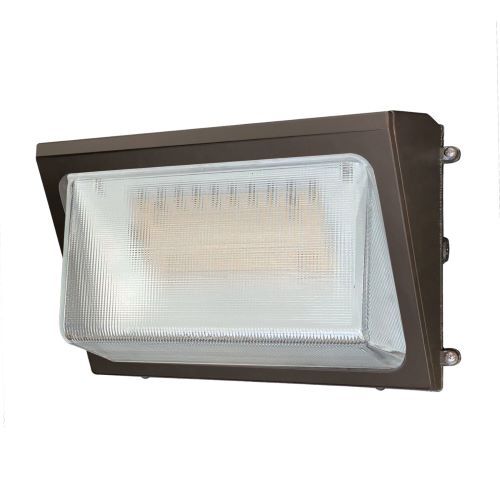

Lumark WPMLED15B
Lumark WPMLED15B B Series Modern Efficiency Traditional Style Wall Pack, LED Lamp, 120 to 277 V, Bronze Housing
Brand: Lumark
Item ID: 538059
MPN: WPMLED15B
Login for Price
Features
- Replaces 70 W up to 250 W HID equivalent
- Efficacies up to 149 Lumens/W
- Energy and maintenance savings up to 89%
- Heat and impact-resistant borosilicate glass lens
- Traditional style, modern efficiency
Description
These LED Wall Packs provide traditional styling with high performance energy-efficient illumination. With broader area coverage on the wall, these Wall Packs are ideal for retrofit applications as well as vehicle ramps, tunnels, loading docks and general wall mounted area lighting.
Lumark Wall Pack, Modern Efficiency Traditional Style, Series: B Series, 120 to 277 V, 0.24 A, LED Lamp, 54 W Lamp, Medium Lamp Base, 130 Lumens/W Light Output, 4000 K Color Temperature, 80 CRI, Glass Shade, 0 to 10 V Dimmable Ballast, Borosilicate Refractive Glass Lens, 7456 Lumens, IP66 Enclosure, Wall Mounting, Die-Cast Aluminum Housing Material, Bronze Housing Finish, 14.3 in W x 7.8 in D x 9.2 in H Dimensions
Specifications
Amperage Rating |
0.24 A |
Ballast Type |
0 to 10 V Dimmable |
Color Rendering Index (CRI) |
80 |
Color Temperature |
4000 K |
Dimensions |
14.3 in W x 7.8 in D x 9.2 in H |
Enclosure Type |
IP66 |
Housing Finish |
Bronze |
Housing Material |
Die-Cast Aluminum |
Lamp Base Type |
Medium |
Lamp Type |
LED |
Lamp Wattage |
54 W |
Lens Type |
Borosilicate Refractive Glass |
Light Output |
130 Lumens/W |
Lumens |
7456 Lumens |
Mounting Type |
Wall |
Series |
B Series |
Shade Type |
Glass |
Type |
Modern Efficiency Traditional Style |
Voltage Rating |
120 to 277 V |
Standard Approval |
DLC Certified|FCC Class A CAN ICES-005|RoHS Compliant|UL Listed |
Application |
Outdoor, Parking Lots, Walkways and Building Areas Applications |
Documentation
https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Cooper_WPMLED07B_Catalog.pdf https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Cooper_WPMLED07B_Catalog.pdf
https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Cooper_WPMLED07B_Specification_Sheet.pdf https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Cooper_WPMLED07B_Specification_Sheet.pdf
