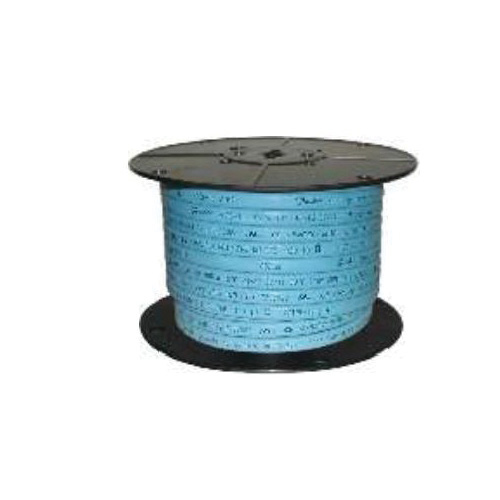

Danfoss 088L1402
Danfoss 088L1402 PX-F Self-Regulating Heating Cable, 2 Conductors, 120 V AC
Brand: Danfoss
Item ID: 571078
MPN: 088L1402
Login for Price
Features
- Cable can be overlapped without creating hot spots or causing a burn out
- Can be cut and spliced in the field, simplifying the installation process and reducing waste
- Rugged 16 AWG bus cable with longer runs
- 250 ft L cable
Description
The Danfoss PX-F Series SELF-REGULATING parallel circuit heating cables provide the solution to basic FREEZE PROTECTION applications. Ensure maximum energy efficiency by producing heat only when and where it is needed as it adjusts the power output to the varying conditions along the length of the pipe. Cables are sold by the foot or spool.
Danfoss Self-Regulating Heating Cable, Series: PX-F, 2 Conductors, 16 AWG Conductor, Copper, 0.45 x 0.216 in Outside Dia, 120 V AC, 3 W/ft, 150 deg F Powered/185 deg F Un-Powered, TPE Insulation, Polyolefin, Blue
Specifications
Color |
Blue |
Conductor Material |
Copper |
Conductor Size |
16 AWG |
Insulation Material |
TPE |
Jacket Material |
Polyolefin |
Number of Conductors |
2 |
Outside Diameter |
0.45 x 0.216 in |
Series |
PX-F |
Temperature Rating |
150 deg F Powered/185 deg F Un-Powered |
Voltage Rating |
120 V AC |
Wattage |
3 W/ft |
Standard Approval |
cSAus Certified|cRUus Listed|ENERGY STAR Qualified |
