Danfoss 088L3084

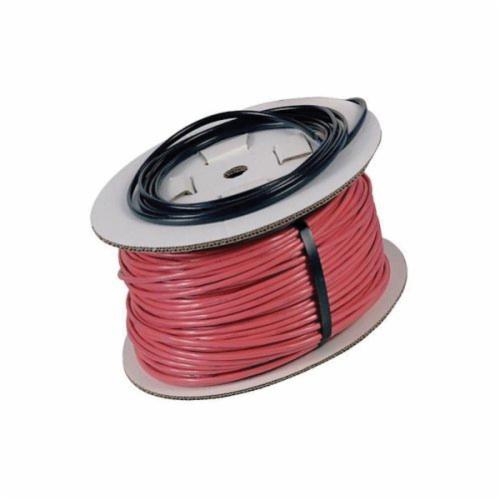

Danfoss 088L3084 Type LX Floor Heating Cable, 2 Conductors, 240 VAC, 3 A, 79.5 Ohm
Brand: Danfoss
Item ID: 455226
MPN: 088L3084
Login for Price
Features
- Danfoss LX floor heating cable systems combine the highest comfort levels with maximum energy efficiency
- Single point connection
- Eliminates EMFs (electromagnetic fields)
- Safety approved for wet locations
- Flexible installation
- Durable construction
- 240 ft cable length
- For driveways, parking lots, sidewalks, stairs, ramps, bridges and used in concrete, asphalt and under pavers
Description
Danfoss Floor Heating Cable, Type LX, 1 Core, 2 Conductors, Copper/Copper Alloy, 3/16 in Outside Dia, 240 VAC, 3 A, 725 W, 79.5 Ohm, 100 deg C, PTFE FEP Insulation, PVC
Specifications
Amperage Rating |
3 A |
Conductor Material |
Copper/Copper Alloy |
Core |
1 |
Insulation Material |
PTFE FEP |
Jacket Material |
PVC |
Number of Conductors |
2 |
Outside Diameter |
3/16 in |
Resistance |
79.5 Ohm |
Temperature Rating |
100 deg C |
Type |
Type LX |
Voltage Rating |
240 VAC |
Wattage |
725 W |
Standard Approval |
C/US CSA Certified|C/US UL Listed|RoHS Compliant |
Application |
For Used On Top Of Plywood, Concrete Floor, Cement Board And Insulation Board |
Documentation
Catalog https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Danfoss_088L3080_Catalog.pdf
