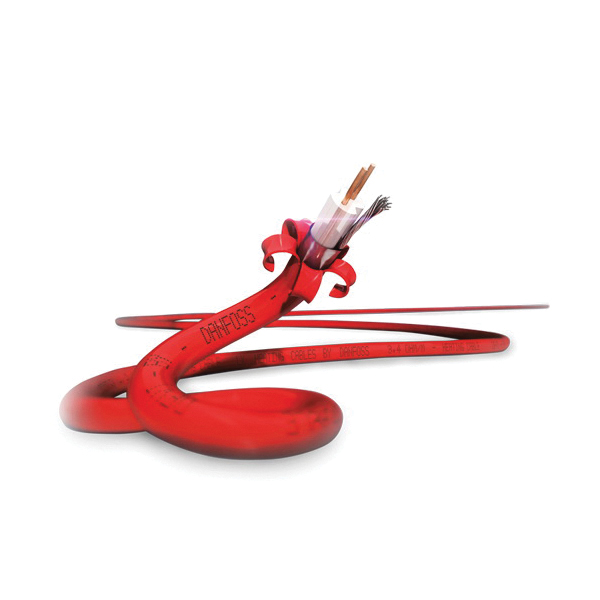

Danfoss 088L3146 LX Electric Floor Heating Cable, 2 Conductors, 120 VAC, 6.3 A, 19.2 Ohm
Brand: Danfoss
Item ID: 463460
MPN: 088L3146
Login for Price
Features
- Single point connection
- Eliminates EMF's (electromagnetic fields)
- Safety approved for wet locations
- Flexible installation
- Durable construction
Description
The Danfoss LX Electric Floor Heating Cable Systems combine the highest comfort levels with maximum energy efficiency. It's a proven technology that's safe, reliable and energy efficient.
Danfoss Electric Floor Heating Cable, Series: LX Series, 2 Conductors, 16 AWG Conductor, Copper/Copper Alloy, 3/16 in Outside Dia, 120 VAC, 6.3 A, 755 W, 19.2 Ohm, 212 deg F, PTFE FEP Insulation, PVC
Specifications
Amperage Rating |
6.3 A |
Conductor Material |
Copper/Copper Alloy |
Conductor Size |
16 AWG |
Insulation Material |
PTFE FEP |
Jacket Material |
PVC |
Number of Conductors |
2 |
Outside Diameter |
3/16 in |
Resistance |
19.2 Ohm |
Series |
LX Series |
Temperature Rating |
212 deg F |
Voltage Rating |
120 VAC |
Wattage |
755 W |
Standard Approval |
cSAus Certified|cULus Listed |
Documentation
Catalog https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Danfoss_088L3092_Catalog.pdf
Instruction/Installation Manual https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Danfoss_088L3092_Manual.pdf
Specification Sheet https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Danfoss_088L3092_Specification_Sheet.pdf
