Danfoss 088L3151

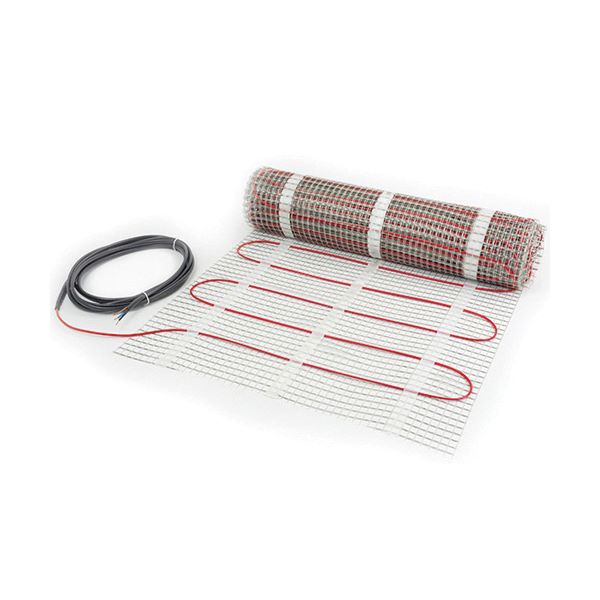

Danfoss 088L3151 LX Dual Adhesive Electric Floor Heating Mat, 7-1/2 in L x 1/2 in W, 15 sq-ft Coverage, 120 VAC
Brand: Danfoss
Item ID: 377164
MPN: 088L3151
Login for Price
Features
- Pre-applied heating cable means even heat every time
- Dual-adhesive backing, no fastening required
- Single point connection
- Twin conductor cable
- Eliminates EMF's (electromagnetic fields)
- Customize mat on the job site
- Minimal thickness-only adds 3/16 in H to the floor
- Safety approved for wet locations
- Even heat every time
- No fastening required
Description
Danfoss LX Electric Floor Heating System is an affordable luxury that brings warmth to life. It's a proven technology that is safe, reliable, and energy efficient. The unique adhesive system saves 70% on installation time.
Danfoss Electric Floor Heating Mat, Dual Adhesive, Series: LX Series, 1/2 in Width, 7-1/2 in Length, 15 sq-ft Coverage, 120 VAC, 1.5 A, 180 W, 10 ft Cord, 3/4 in Bend Radius, 212 deg F, Thermoplastic Polymer Coated Fiberglass
Specifications
Amperage Rating |
1.5 A |
Bend Radius |
3/4 in |
Cord Length |
10 ft |
Coverage |
15 sq-ft |
Length |
7-1/2 in |
Material |
Thermoplastic Polymer Coated Fiberglass |
Series |
LX Series |
Temperature Rating |
212 deg F |
Type |
Dual Adhesive |
Voltage Rating |
120 VAC |
Wattage |
180 W |
Width |
1/2 in |
Standard Approval |
cSAus Certified|cULus Listed|ENERGY STAR Qualified|US Green Building Council Member Certified |
Application |
For Plywood Subfloor, Concrete Subfloor, Engineering Wood, Laminate or Carpet |
Documentation
Catalog https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Danfoss_088L3092_Catalog.pdf
Instruction/Installation Manual https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Danfoss_088L3151_Manual.pdf
Specification Sheet https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Danfoss_088L3151_Specification_Sheet.pdf
Warranty Information https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Danfoss_088L3151_Warranty.pdf
