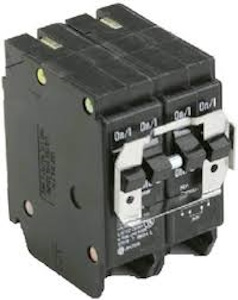

Cutler-Hammer BQ230250
30/50 Amp, 4-Pole, 120/240V AC quadplex circuit breaker with independent trip, designed for residential load centers.
Brand: Cutler-Hammer
Item ID: 371988
MPN: BQ230250
Login for Price
Features
Amperage: 30/50 Amps
Voltage Rating: 120/240V AC
Poles: 4
Interrupting Rating: 10,000 AIC at 120/240V AC
Mounting Type: Plug-On
Trip Type: Thermal Magnetic
Trip Mechanism: Independent
Wire Size: Accepts #14–#4 AWG copper or aluminum wire
Certifications: UL Listed, CSA Certified
Dimensions: Approximately 3.1" H x 1.97" W x 2.88" D
Weight: Approximately 0.76 lbs
Description
The Eaton BQ230250 is a quadplex circuit breaker combining two 2-pole breakers: one rated at 30 amps and the other at 50 amps. Designed for residential applications, it offers reliable protection against overloads and short circuits with its thermal magnetic trip mechanism. The independent trip feature allows each breaker to operate separately, enhancing safety and flexibility.
