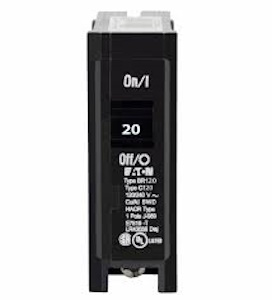

Cutler-Hammer BR120
20A 1-pole 120/240V plug-on circuit breaker, compatible with Eaton Type BR load centers.
Brand: Cutler-Hammer
Item ID: 483888
MPN: BR120
Login for Price
Features
Amperage: 20 Amps
Voltage: 120/240V AC
Poles: 1
Interrupt Rating: 10 kAIC
Mounting Type: Plug-on
Compatibility: Eaton Type BR load centers; UL-listed for Bryant, Westinghouse, Challenger, and Novaline panels
Trip Type: Thermal Magnetic
Wire Size: Accepts #14–#4 AWG copper or aluminum wire
Dimensions: Approximately 3" H x 1" W x 2.5" D
Certifications: UL Listed, CSA Certified
Description
The Eaton BR120 is a thermal magnetic circuit breaker rated for 20 amps at 120/240 volts AC. It features a plug-in design for easy installation into Eaton Type BR load centers and is also UL-approved for use in compatible panels from brands like Bryant, Westinghouse, Challenger, and Novaline. With a 10,000 AIC (Ampere Interrupting Capacity), it provides dependable protection for branch circuits in residential and light commercial settings.
