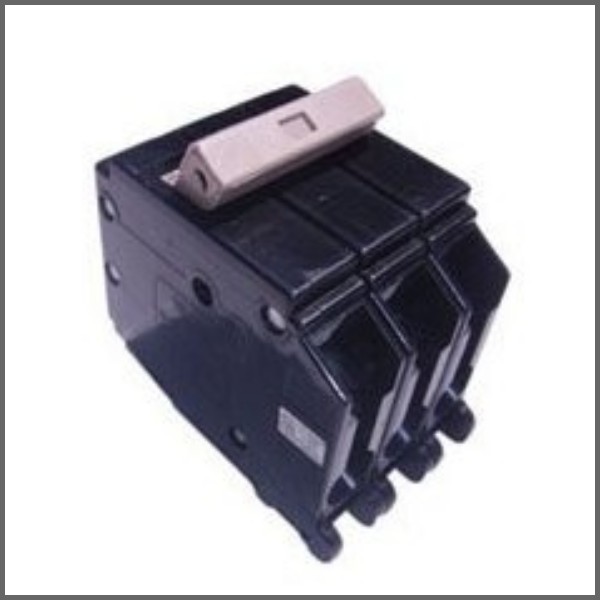

Cutler-Hammer CHB315

• Amperage: 15 Amps

• Voltage Rating: 240V AC

• Poles: 3

• Interrupting Rating: 10,000 AIC at 240V AC

• Mounting Type: Bolt-On

• Trip Type: Thermal Magnetic

• Wire Size: Accepts #14–#8 AWG copper wire

• Certifications: UL 489 Listed

• Dimensions: Approximately 2.1" H x 3.6" W x 5.8" L

• Weight: Approximately 0.85 lbs

The Eaton CHB315 is a 15-amp, 3-pole bolt-on circuit breaker from the CHB series, engineered for commercial and industrial applications. It offers reliable protection against overloads and short circuits with its thermal magnetic trip mechanism. The bolt-on design ensures secure installation into compatible panelboards, making it suitable for various electrical distribution systems.
