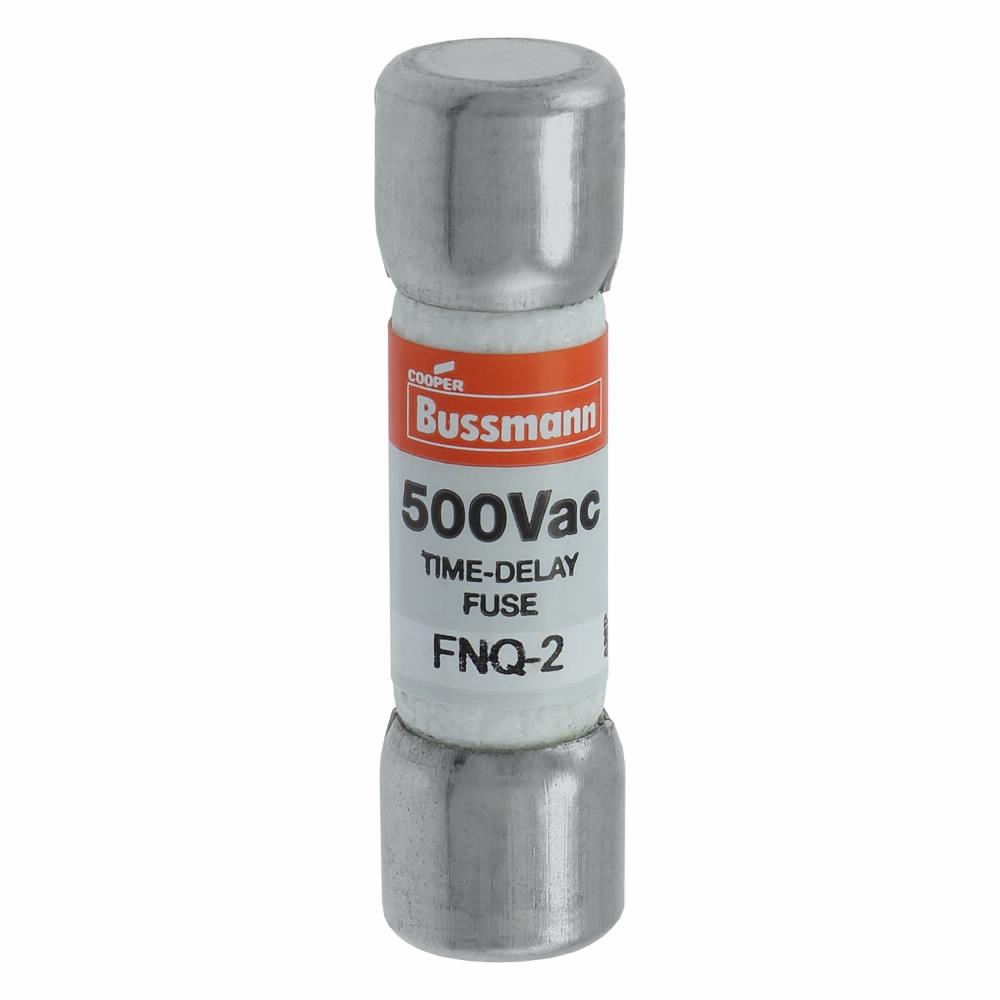

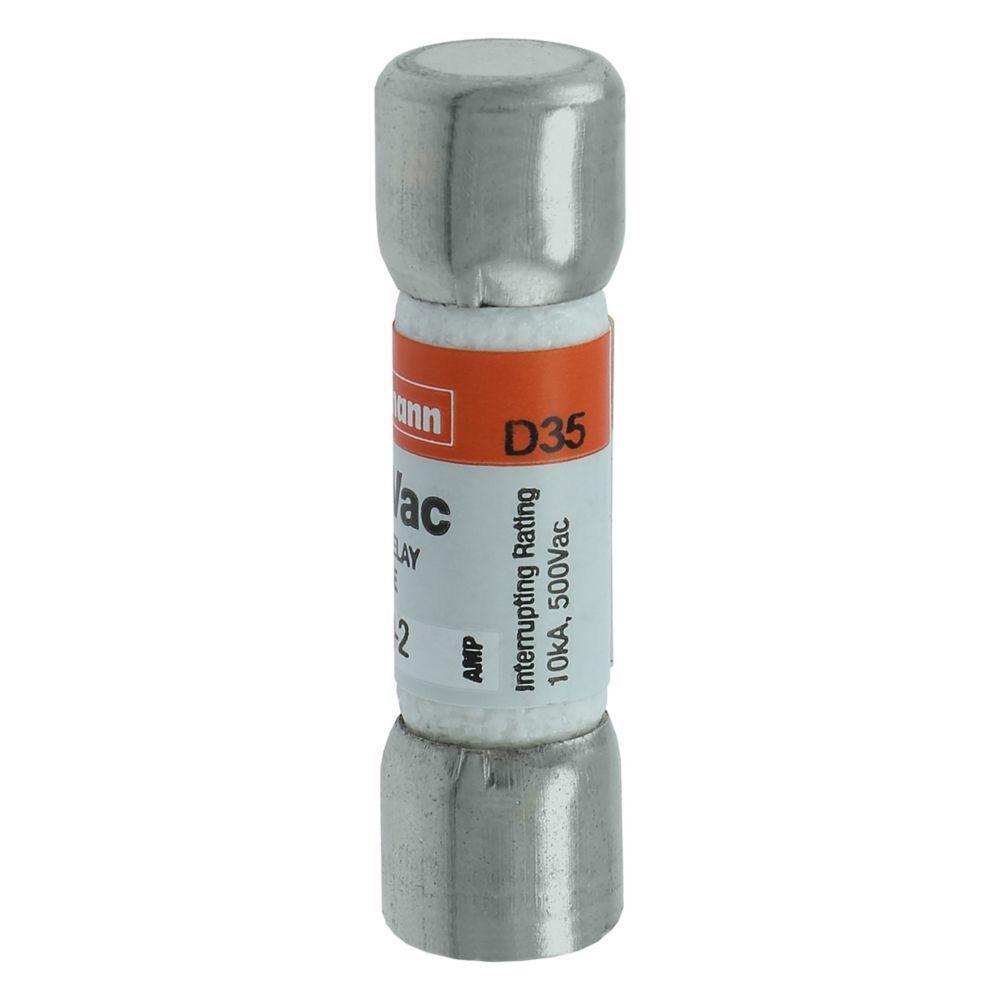

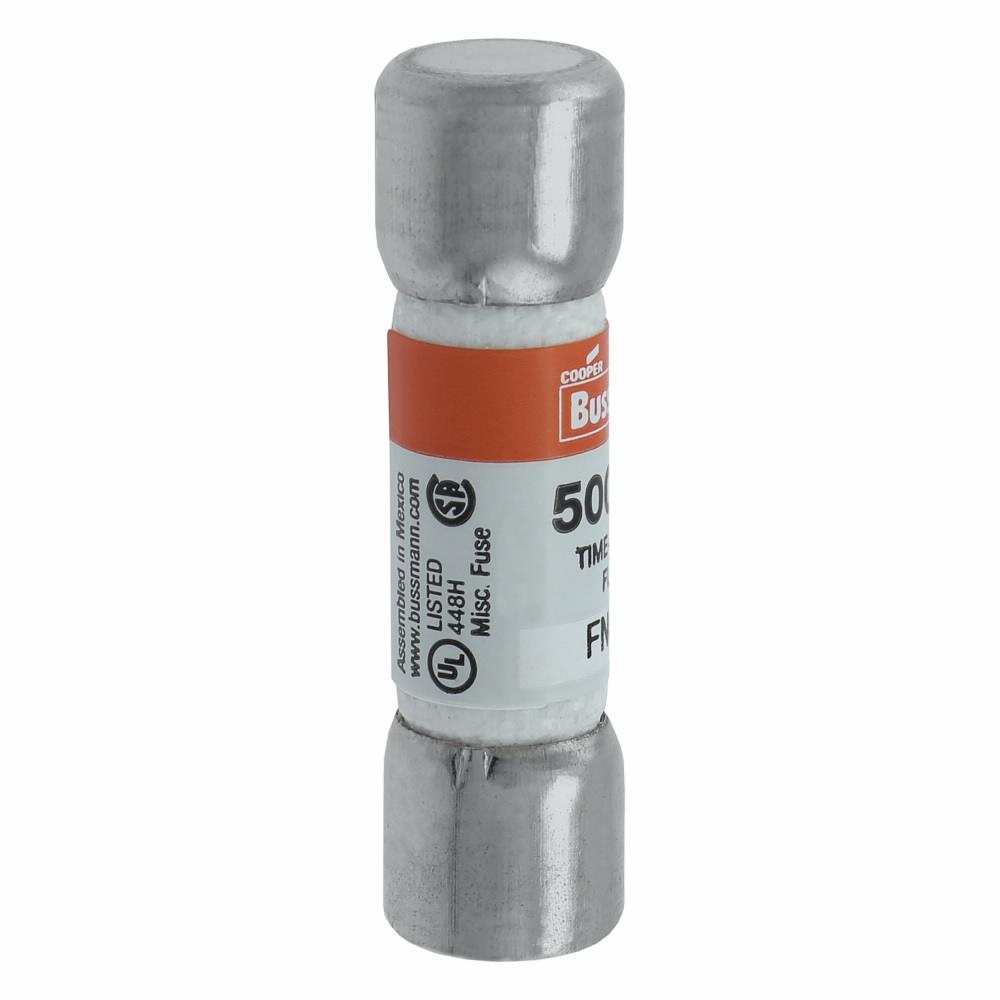

Bussmann FNQ-2
Bussmann Tron® FNQ-2 Time Delay Fuse, 2 A, 500 VAC, 10 kAIC Interrupt, Class: Supplemental, Cartridge Body
Brand: Bussmann
Item ID: 359540
MPN: FNQ-2
Login for Price
Features
- Nickel plated brass end caps
Description
Bussmann Tron® Fuse, Time Delay, Series: FNQ, Indicating/Non-Indicating: Non-Indicating, Rejection/Non-Rejection: Non-Rejection, 2 A, 500 VAC, 10 kAIC Interrupt, Class: Supplemental, Ferrule End Terminal, Holder Mount, Cartridge Body Type, Dual Element, Nickel Plated Bronze, Orange, 13/32 in Dia x 1-1/2 in L Body Size
Specifications
Amperage Rating |
2 A |
Body Size |
13/32 in Dia x 1-1/2 in L |
Body Type |
Cartridge |
Class |
Supplemental |
Color |
Orange |
Element |
Dual |
Indicating/Non-Indicating |
Non-Indicating |
Interrupt Rating |
10 kAIC |
Material |
Nickel Plated Bronze |
Mounting Type |
Holder |
Rejection/Non-Rejection |
Non-Rejection |
Series |
FNQ |
Terminal Type |
Ferrule End |
Type |
Time Delay |
Voltage Rating |
500 VAC |
Standard Approval |
CE Certified|CSA C22.2 No. 248.14|CSA Class 1422-01|CSA File No. 53787|RoHS Compliant|UL 248-14 Guide JDYX UL File No. E19180 |
Application |
Industrial Facilities and Factory Facilities, Safety and Security Systems, Motor Control Transformers and Circuits with In-Rush Currents, Lighting Circuit Protection and Meter Circuits Applications |
Documentation
Catalog https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_9a27996e026cfe6678ae4e44753bdc6a2a383de0bc4b0e24caba089ba7e77d51.pdf
Line Drawing https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_baa73323533155c0b25685084d104fe61ff1beb9e2908709d0e30ce41821ea73.pdf
Specification Sheet 2 https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Bussmann_FNQ-2_Specification_Sheet.pdf
Specification Sheet https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_524b8cedb8ff3e2fa26dcba10dab2f9bd2be71f7a44e7d65fa1947b246c0cef7.pdf
VIDEO LINK
https://www.youtube.com/watch?v=YMvqUyoETXk
Bussmann FNQ-2
