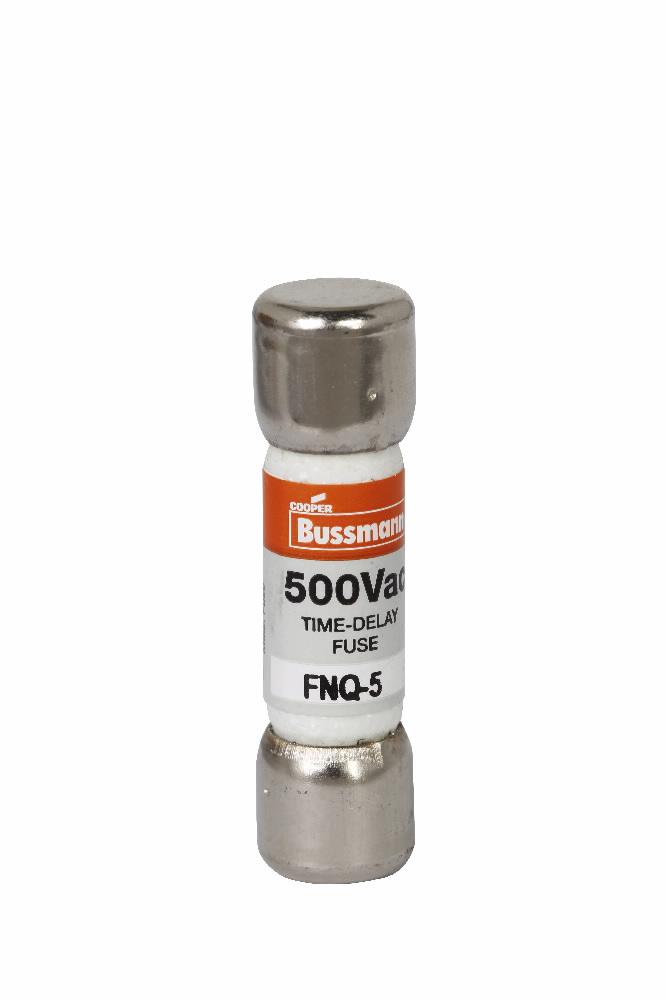

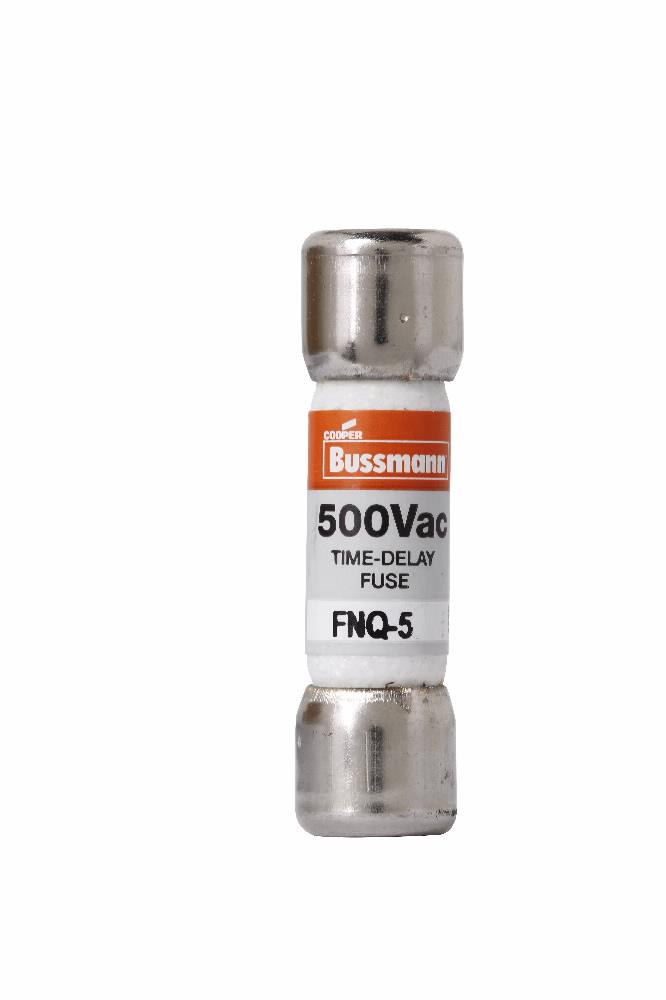

Bussmann FNQ-5
Bussmann Tron® FNQ-5 Time Delay Midget Fuse, 5 A, 500 VAC, 10000 A Interrupt, Class: Supplemental, Cartridge Body
Brand: Bussmann
Item ID: 5989
MPN: FNQ-5
Login for Price
Features
- Nickel plated brass end caps
Description
Bussmann Tron® Midget Fuse, Time Delay, Series: FNQ, Indicating/Non-Indicating: Non-Indicating, Rejection/Non-Rejection: Non-Rejection, 5 A, 500 VAC, 10000 A Interrupt, Class: Supplemental, Ferrule Terminal, Holder Mount, Cartridge Body Type, Dual Element, Bronze/Fiberglass, Orange, 13/32 in Dia x 1-1/2 in L Body Size
Specifications
Amperage Rating |
5 A |
Body Size |
13/32 in Dia x 1-1/2 in L |
Body Type |
Cartridge |
Class |
Supplemental |
Color |
Orange |
Element |
Dual |
Indicating/Non-Indicating |
Non-Indicating |
Interrupt Rating |
10000 A |
Material |
Bronze/Fiberglass |
Mounting Type |
Holder |
Rejection/Non-Rejection |
Non-Rejection |
Series |
FNQ |
Terminal Type |
Ferrule |
Type |
Time Delay |
Voltage Rating |
500 VAC |
Standard Approval |
CE Certified|CSA 1422-01|CSA C22.2 No. 248.14|CSA File No. 53787|RoHS Compliant|UL 248-14|UL File No. E19180|UL Guide JDYX |
Application |
Motor Control Transformers and Circuits with In-Rush Currents, Lighting Circuit Protection and Meter Circuits Applications, Safety and Security Systems |
Documentation
Catalog https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_9a27996e026cfe6678ae4e44753bdc6a2a383de0bc4b0e24caba089ba7e77d51.pdf
Line Drawing https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_baa73323533155c0b25685084d104fe61ff1beb9e2908709d0e30ce41821ea73.pdf
Specification Sheet https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Bussmann_FNQ-5_Specification_Sheet.pdf
Specification Sheet 2 https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_58f6293efdc46dd4684d19f76aac7cd88bbc6beac7b73c2bcf32bcaba1f9acd6.pdf
