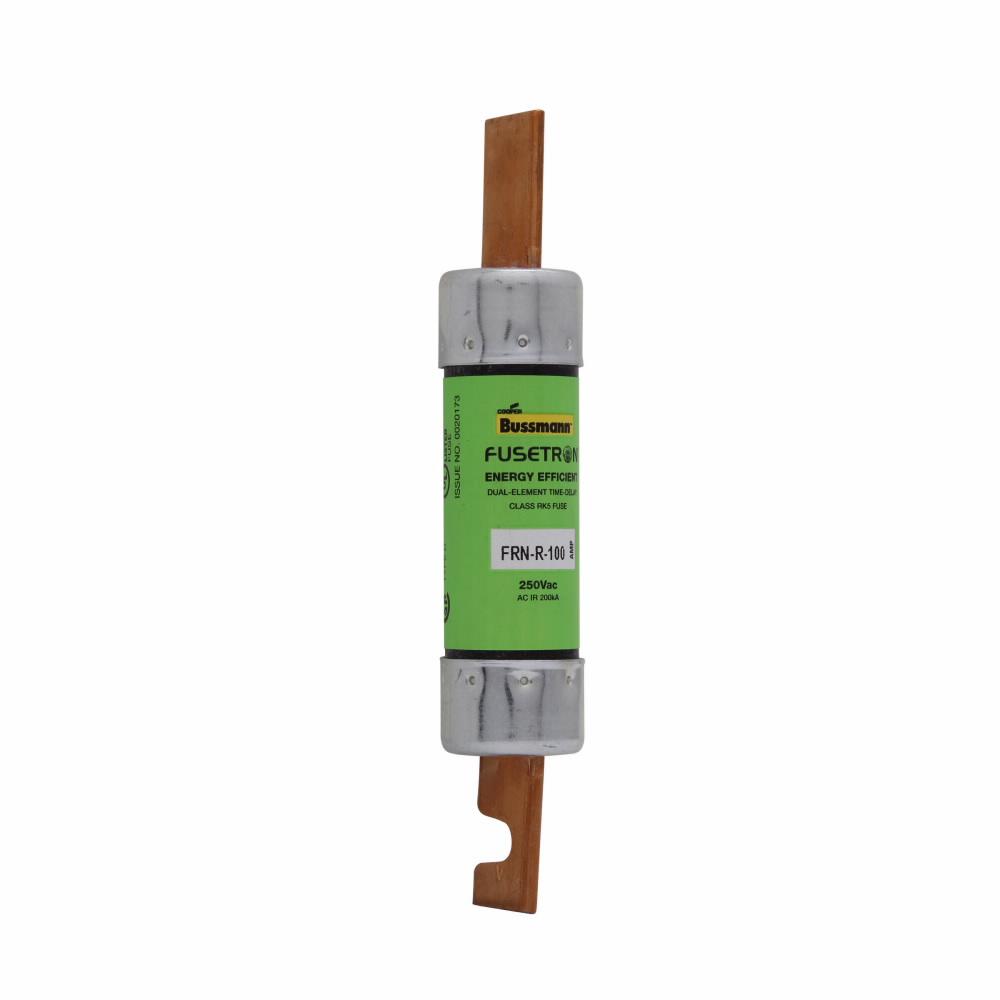

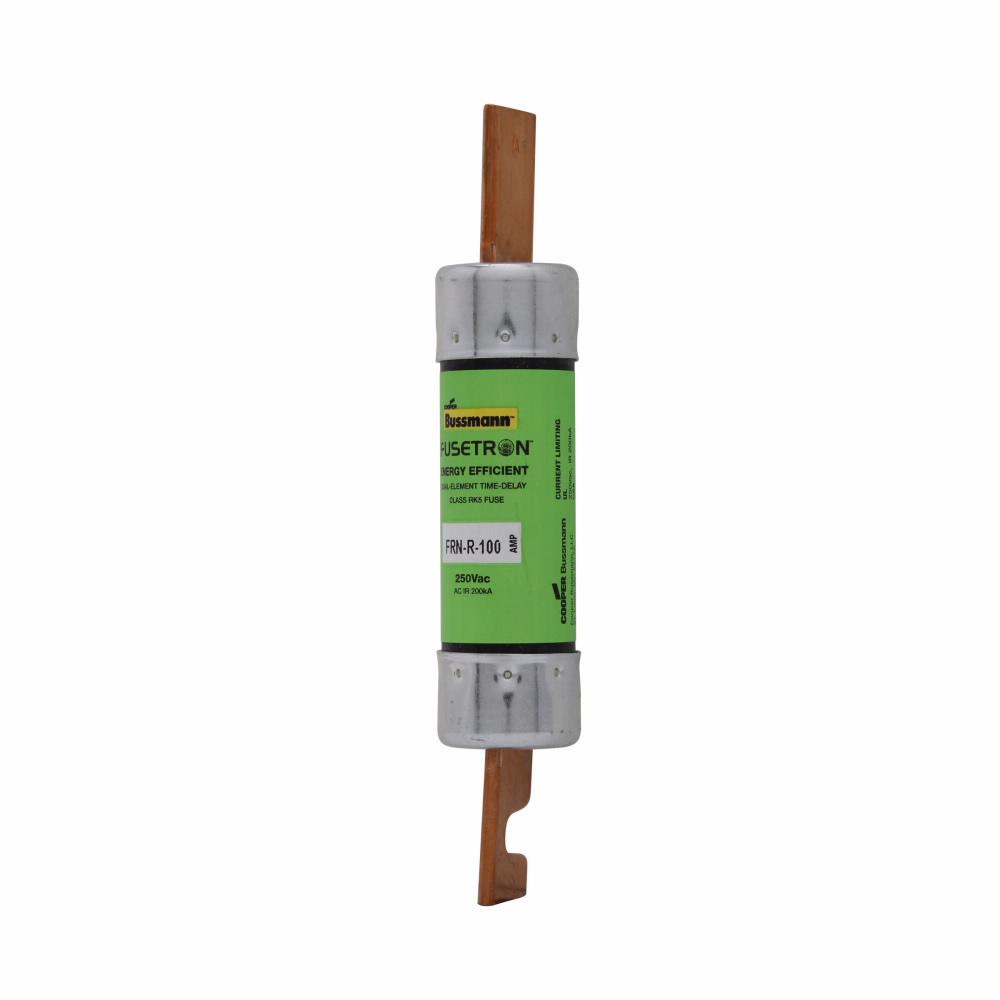

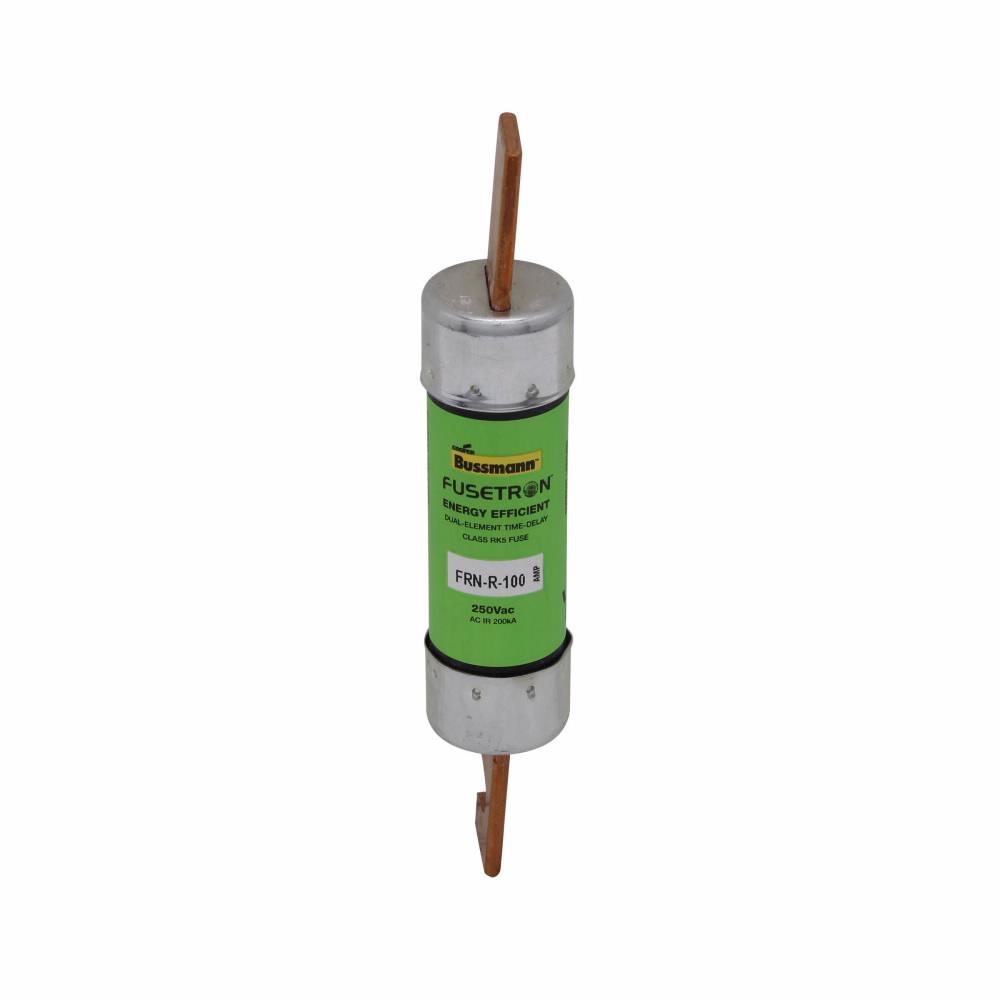

Bussmann FRN-R-100
Bussmann Fusetron™ FRN-R-100 FRN-R Current Limiting Energy Efficient Time Delay Fuse, 100 A, 250 VAC, 200 kA Interrupt, Class: RK5, Cartridge Body
Brand: Bussmann
Item ID: 6005
MPN: FRN-R-100
Login for Price
Description
Bussmann's UL Class RK5 Fusetron product offering provides energy efficient advanced protection with its dual-element, time-delay construction and is available with optional open fuse indication on select ratings. Available in both 250Vac and 600Vac, 200kA RMS Sym interrupting rating and sizes ranging from 0 to 600 amp. Fusetron's deliver 10 seconds (minimum) of time-delay at 500% of rated current (8 seconds for 1/10-30A sizes).
Bussmann Fusetron™ Time Delay Fuse, Current Limiting Energy Efficient, Series, Indicating/Non-Indicating: Non-Indicating, Rejection/Non-Rejection, 100, Voltage Rating A, VAC 250, 200 Interrupt, Class kA, Frequency Rating, 10 Response, Terminal Type s, Holder Mount, Body Type, Dual Element, Material, Body Size
Specifications
Amperage Rating |
100 A |
Body Size |
1.06 in Dia x 5.88 in L |
Body Type |
Cartridge |
Class |
RK5 |
Element |
Dual |
Indicating/Non-Indicating |
Non-Indicating |
Interrupt Rating |
200 kA |
Material |
Fiberglass |
Mounting Type |
Holder |
Rejection/Non-Rejection |
Rejection |
Response Time |
10 s |
Series |
FRN-R |
Terminal Type |
Blade |
Type |
Current Limiting Energy Efficient |
Voltage Rating |
250 VAC |
Standard Approval |
CE Certified|UL 248-12|UL JDDZ|UL File No. E4273|CSA Class 1422-02|CSA 53787|C22.2 No. 248.12 |
Application |
Power Panelboards, Motor Control Centers, Combination Starters and Machinery Disconnects |
Documentation
Catalog https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_9a7deddcb6439d13b8d755080ec3d4694b49b4ae0512de9cd470d060f41ae688.pdf
Line Drawing https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_2f4ddbe157bf0800d5c4834773f462e26b0554a87dd2108290a932e822cfa936.pdf
Specification Sheet https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_be88511093b13a3ebfebad268eae159c69c3a30a0f45679105d774f0eddd7d41.pdf
VIDEO LINK
https://www.youtube.com/watch?v=YMvqUyoETXk
