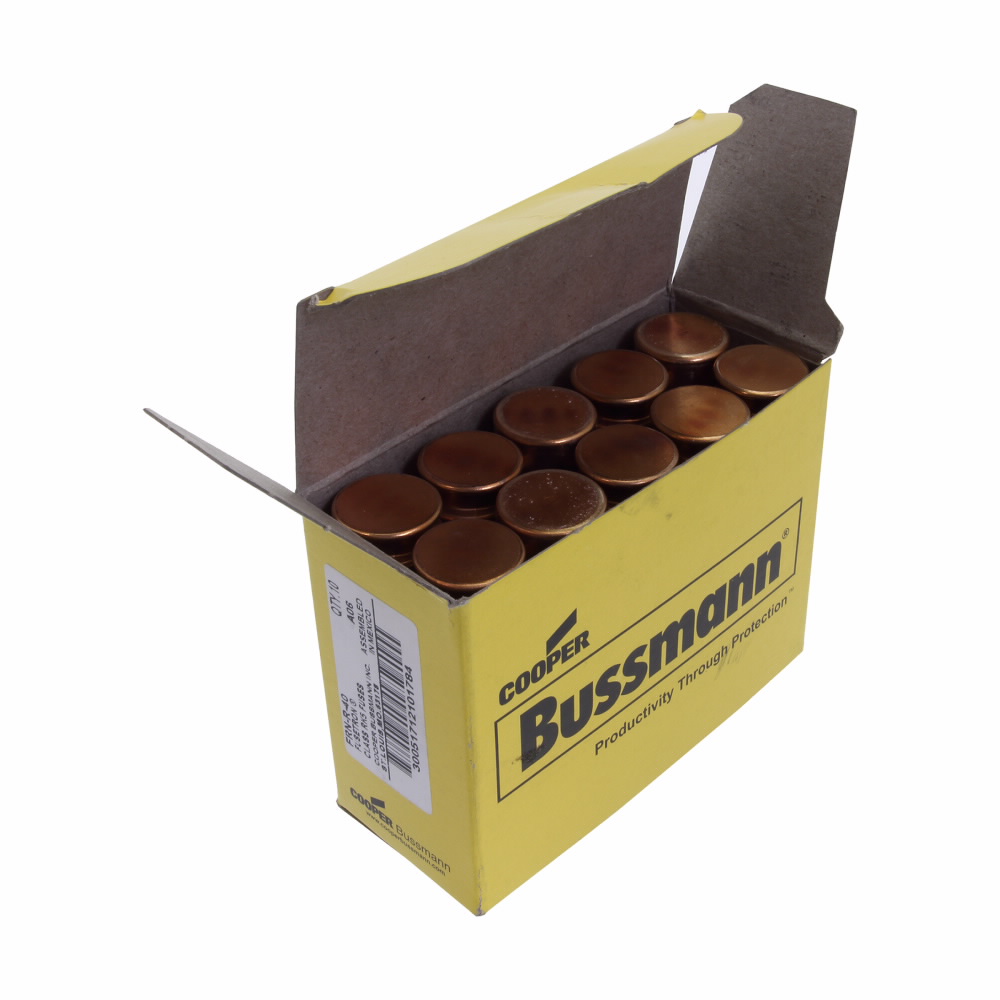

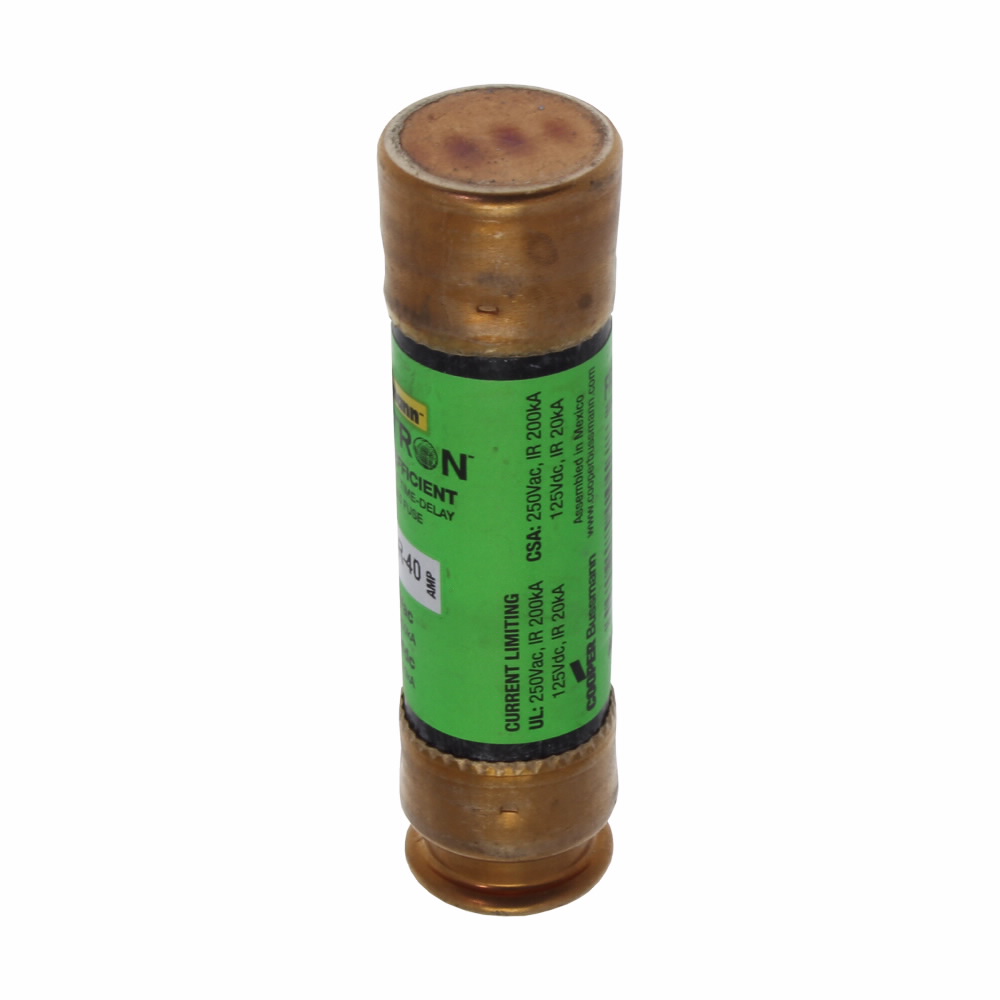

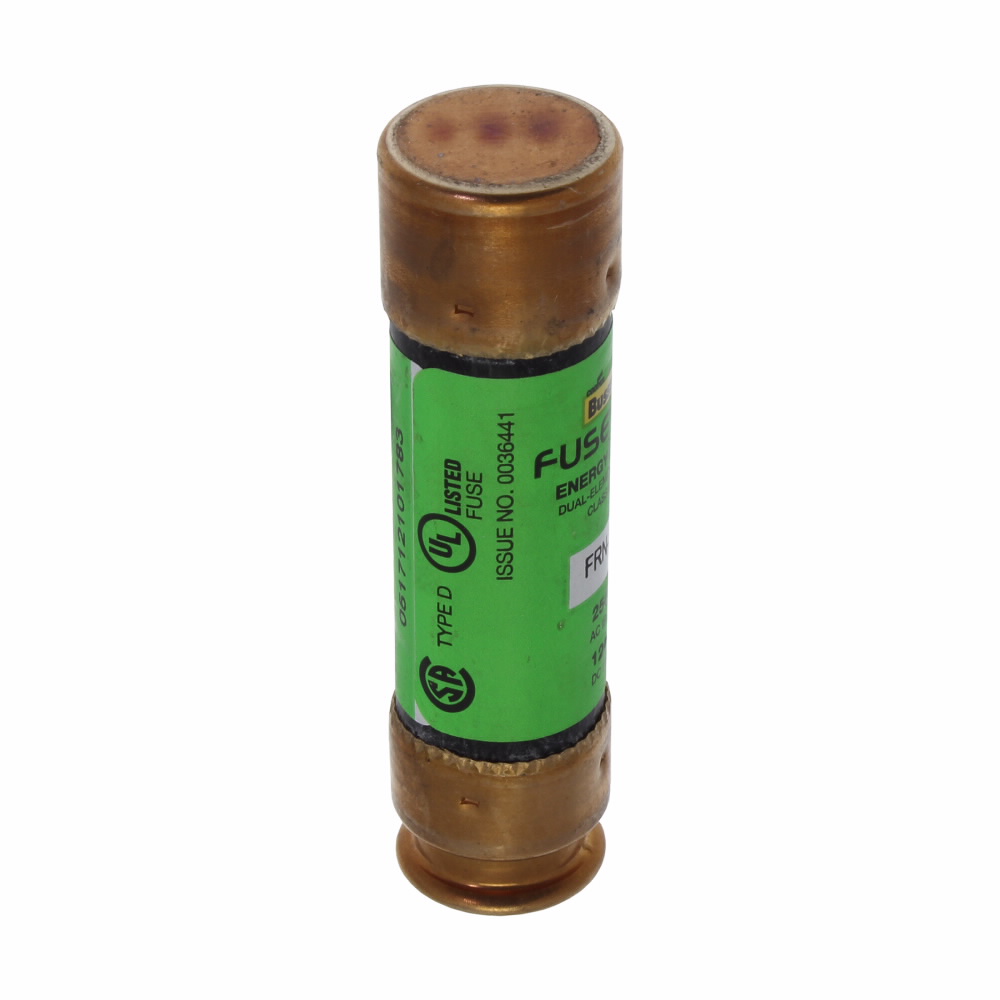

Bussmann FRN-R-40
Bussmann Fusetron™ FRN-R-40 FRN-R Current Limiting Energy Efficient Time Delay Fuse, 40 A, 250 VAC/125 VDC, 200/20 kA Interrupt, Class: RK5, Cylindrical Body
Brand: Bussmann
Item ID: 6027
MPN: FRN-R-40
Login for Price
Description
Bussmann's UL Class RK5 Fusetron product offering provides energy efficient advanced protection with its dual-element, time-delay construction and is available with optional open fuse indication on select ratings. Available in both 250Vac and 600Vac, 200kA RMS Sym interrupting rating and sizes ranging from 0 to 600 amp. Fusetron's deliver 10 seconds (minimum) of time-delay at 500% of rated current (8 seconds for 1/10-30A sizes).
Bussmann Fusetron™ Time Delay Fuse, Current Limiting Energy Efficient, Series, Indicating/Non-Indicating: Non-Indicating, Rejection/Non-Rejection, 40, Voltage Rating A, 200/20 Interrupt, Class kA, Frequency Rating, 10 Response, Terminal Type s, Holder Mount, Body Type, Dual Element, Material, Body Size
Specifications
Amperage Rating |
40 A |
Body Size |
0.81 in Dia x 3 in L |
Body Type |
Cylindrical |
Class |
RK5 |
Element |
Dual |
Indicating/Non-Indicating |
Non-Indicating |
Interrupt Rating |
200/20 kA |
Material |
Fiberglass |
Mounting Type |
Holder |
Rejection/Non-Rejection |
Rejection |
Response Time |
10 s |
Series |
FRN-R |
Terminal Type |
Ferrule |
Type |
Current Limiting Energy Efficient |
Voltage Rating |
250 VAC/125 VDC |
Standard Approval |
CE Certified|UL 248-12|UL JDDZ|UL File NO E4273|CSA Class 1422-02|CSA 53787|C22.2 NO 248.12 |
Application |
Power Panelboards, Motor Control Centers, Combination Starters and Machinery Disconnects |
