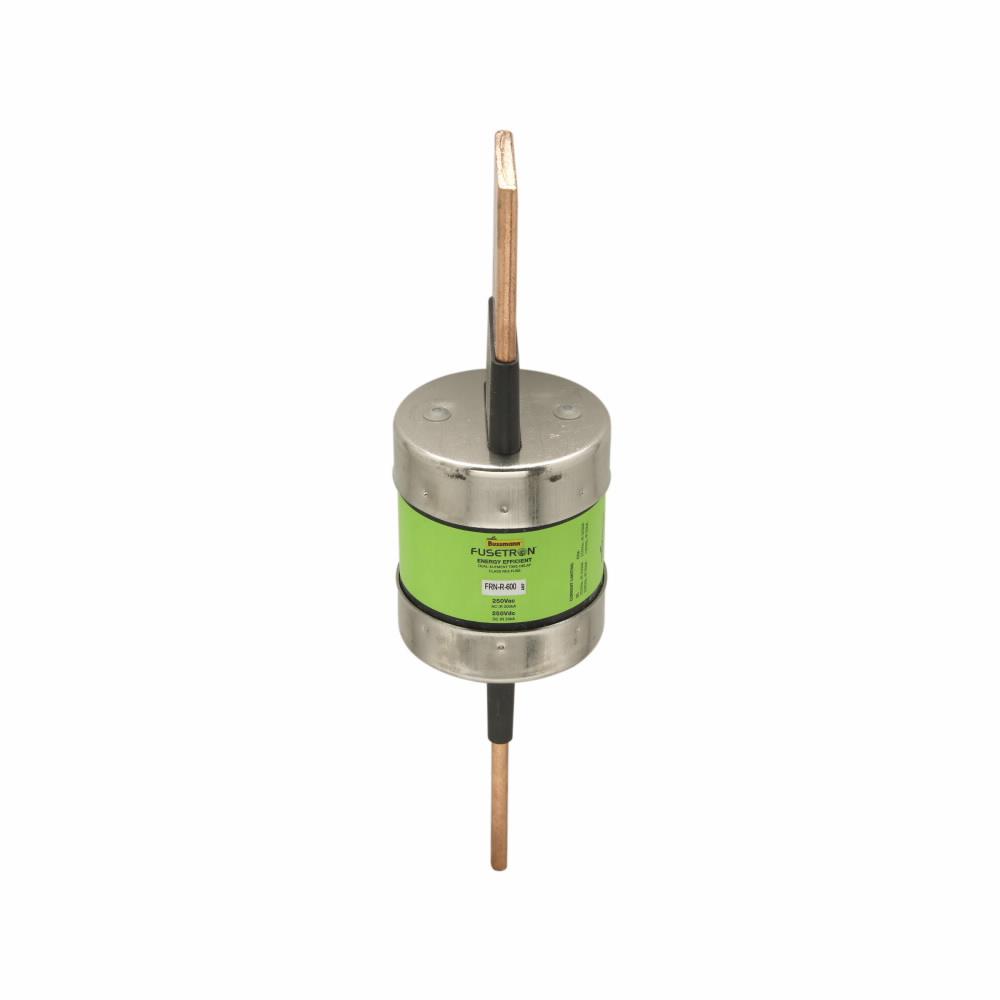

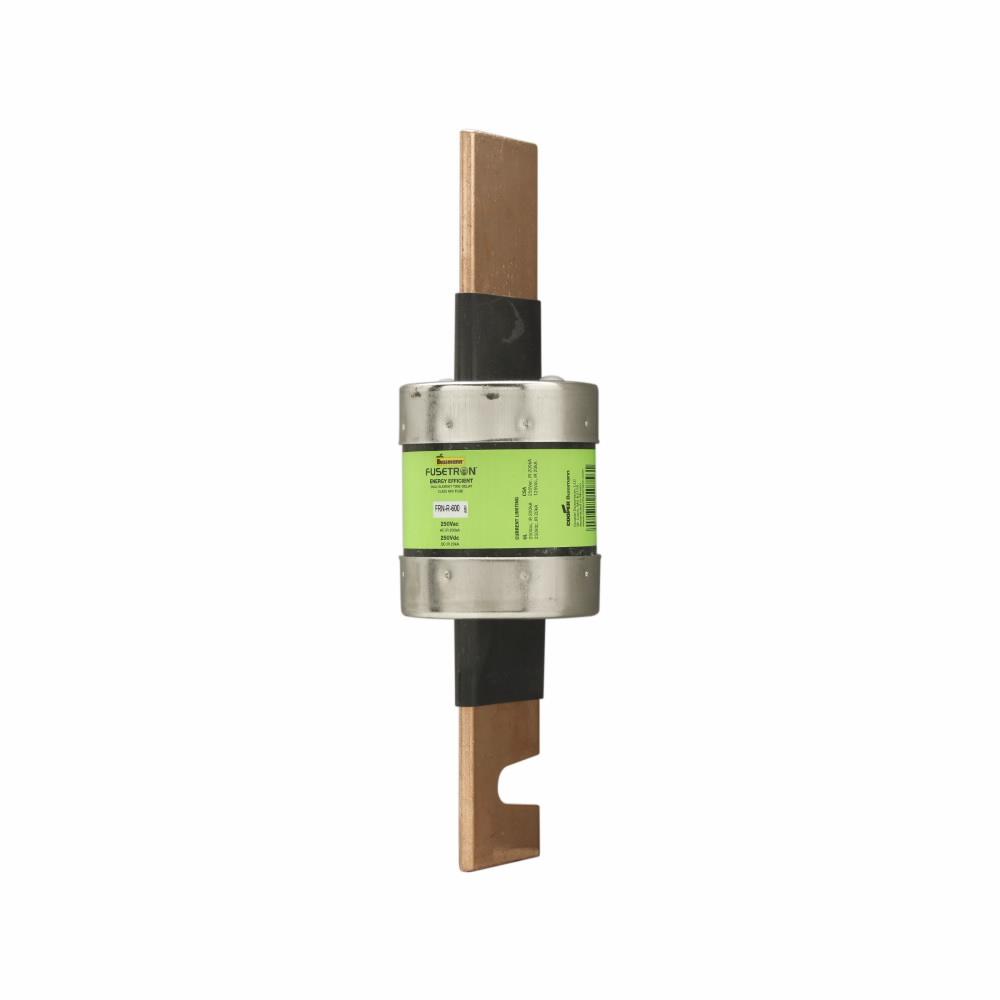

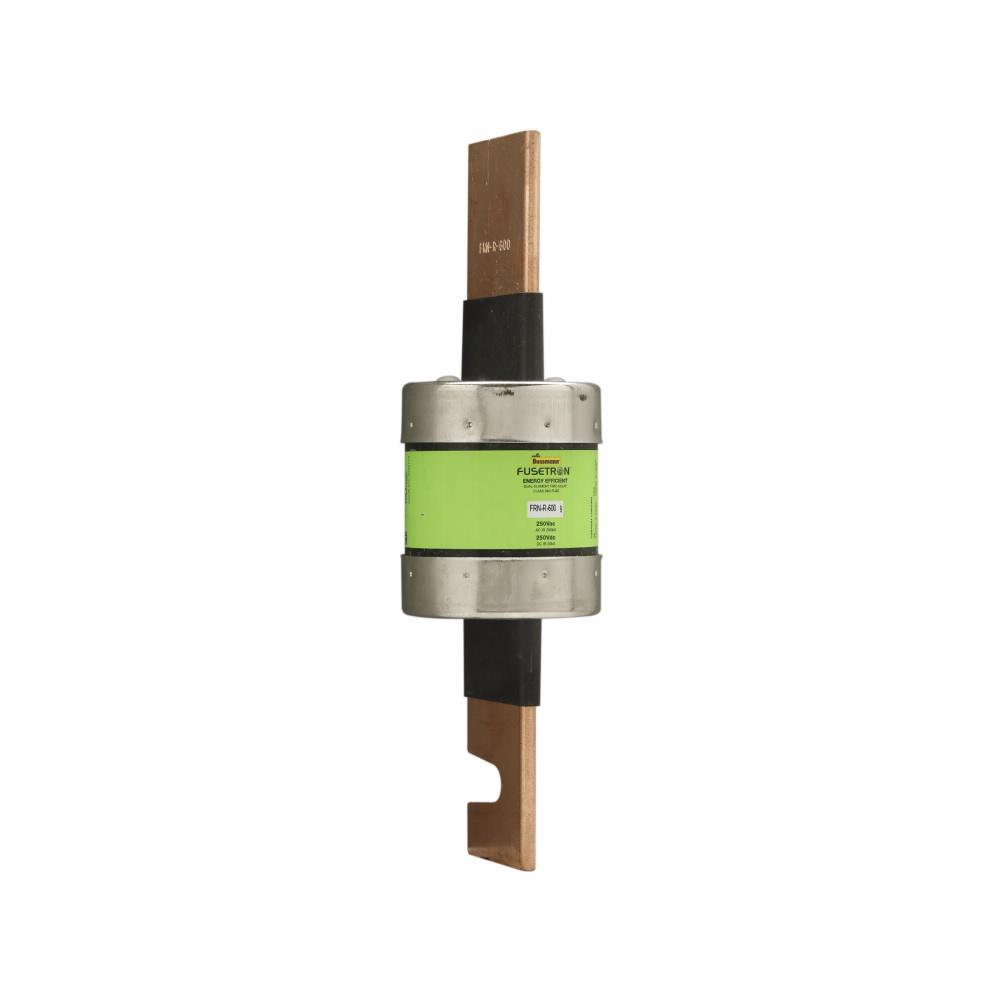

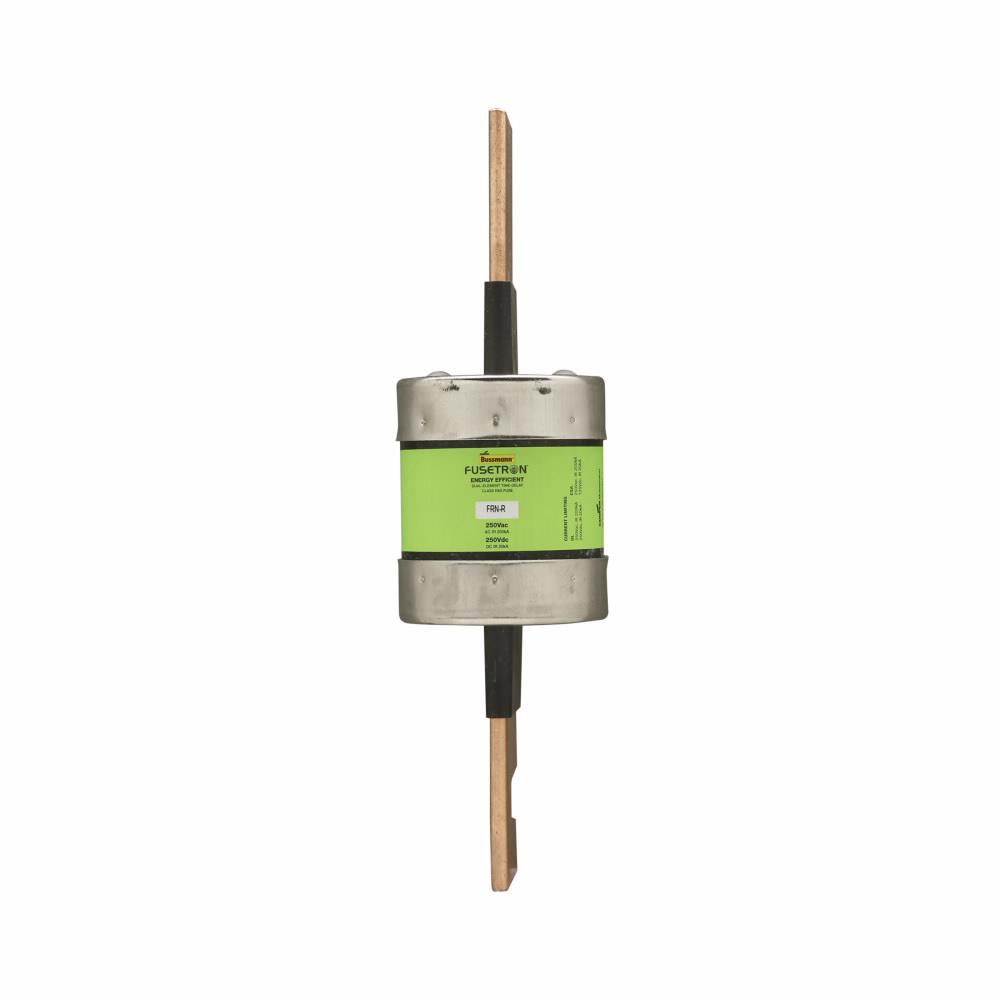

Bussmann FRN-R-600

• Provides motor overload, ground fault and short circuit protection
• Helps protect motors against burnout from overloads
• Helps protect motors against burnout from single phasing on 3 ph systems
• Simplifies and improves blackout prevention (selective co-ordination ratios)
• Dual element fuses can be applied in circuits subject to temporary motor overloads and surge currents to provide both high performance short circuit and overload protection
• The overload element provides protection against low level over current of overloads and will hold an overload which is five times greater than the ampere rating of the fuse for a minimum of 10 s

EATON Bussmann series advanced protection, energy efficient FRN-R class RK5 dual element, current limiting, time delay fuses. Time delay 10 sec (minimum) at 500% of rated current.

Bussmann Fusetron™ Time Delay Fuse, Current Limiting, Series: FRN-R, Indicating/Non-Indicating: Non-Indicating, Rejection/Non-Rejection: Rejection, 600 A, 250 VAC/125 VDC, 20/200 kA Interrupt, Class: RK5, 10 s at 500% Response, Blade Terminal, Holder Mount, Cartridge Body Type, Dual Element, Fiberglass, 2.88 in Dia x 10.38 in L Body Size
