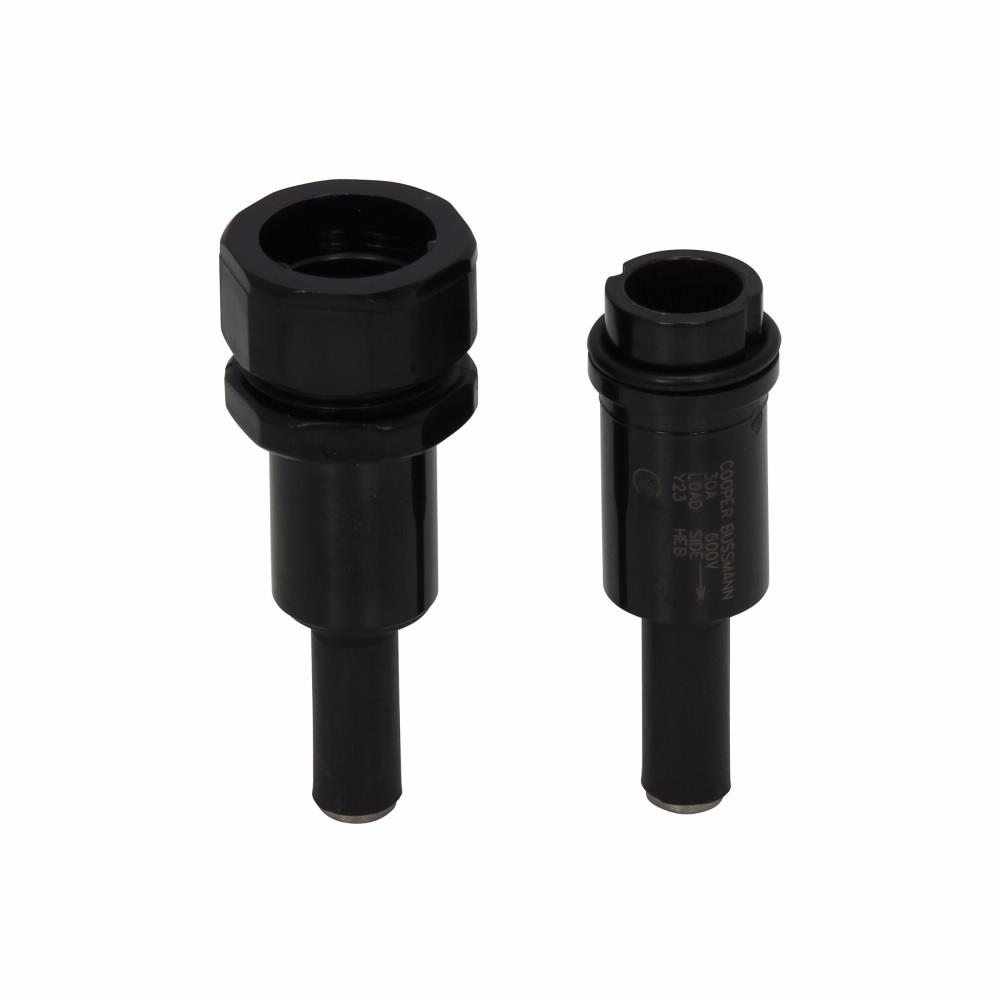

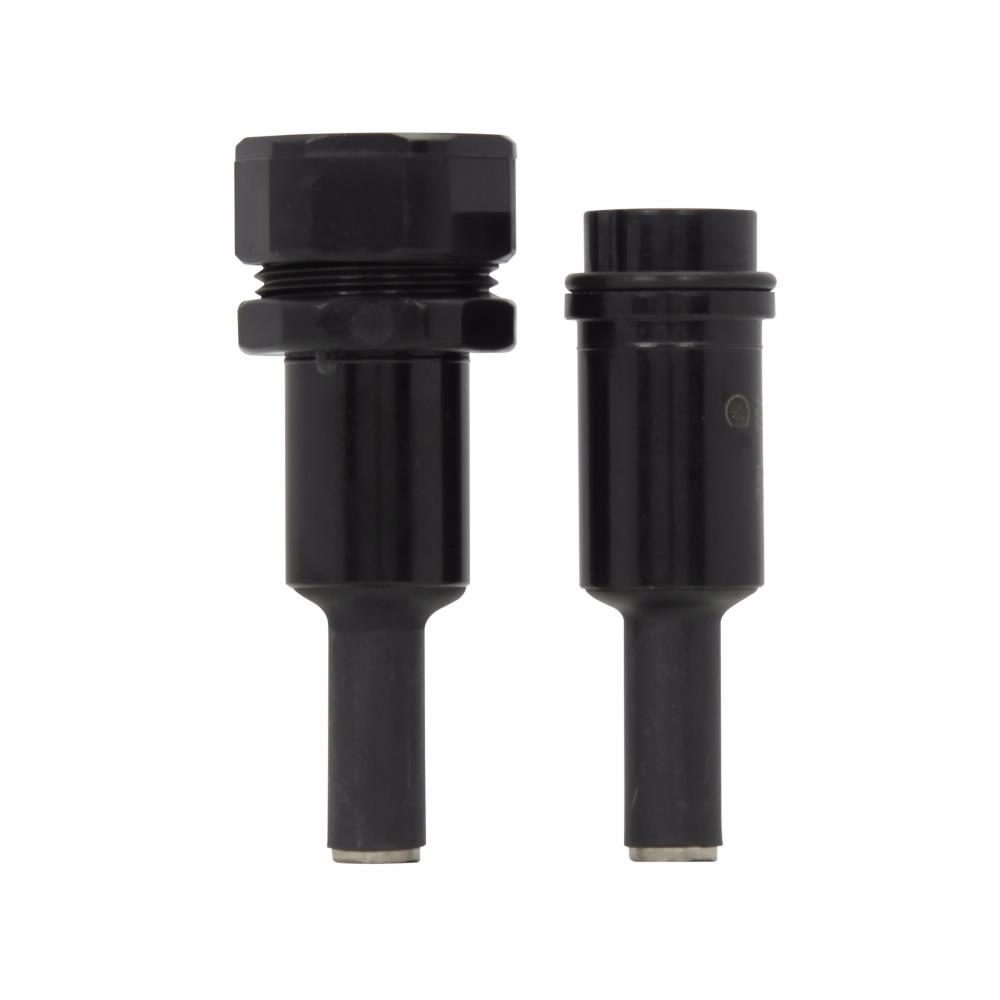

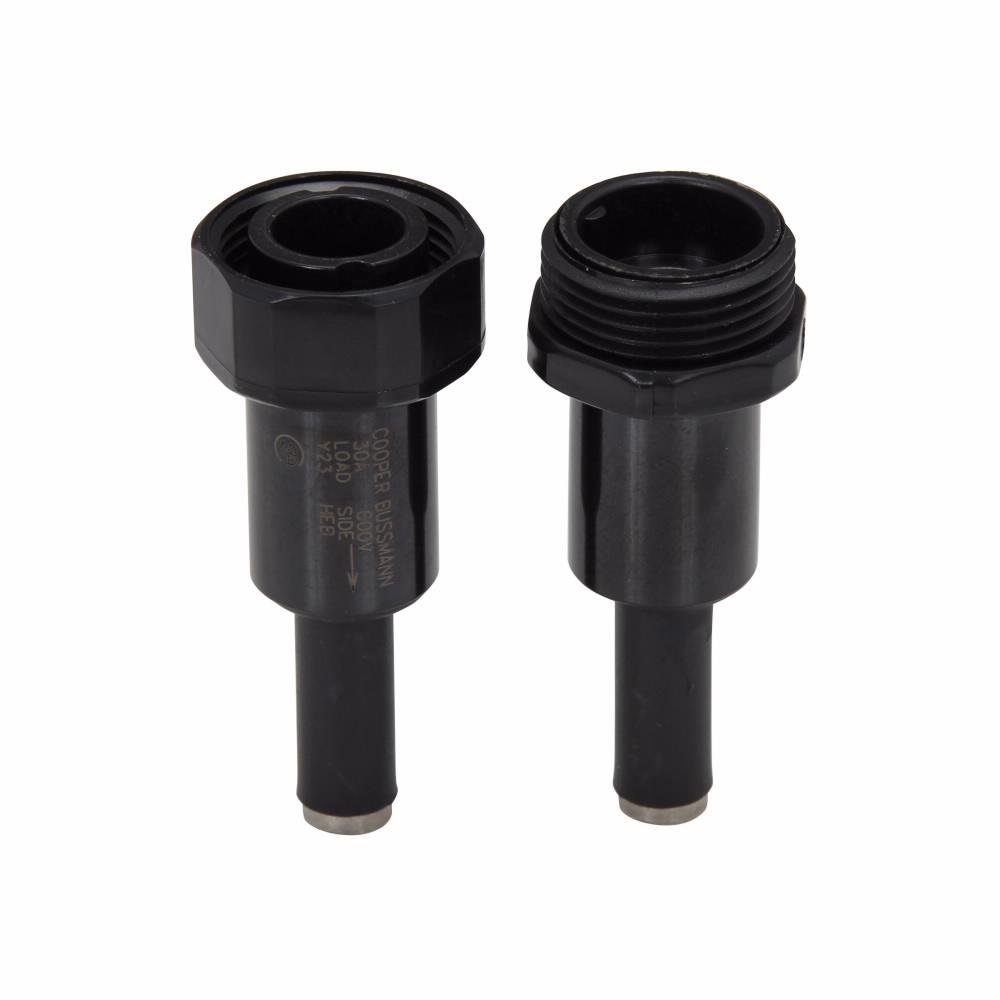

Bussmann HEB-BB
Bussmann Tron® HEB-BB In-Line Non-Breakable Water Resistant Fuse Holder, 600 V, 30 A, 6 AWG, (2) 10 AWG Line, 6 AWG, (2) 10 AWG Load Wire, 1 Pole
Brand: Bussmann
Item ID: 6125
MPN: HEB-BB
Login for Price
Features
- (1) 6 AWG, (2) 10 AWG copper crimp solid and stranded wire load side terminal, (1) 6 AWG, (2) 10 AWG copper crimp solid and stranded wire line side terminal
Description
Bussmann Tron® Fuse Holder, In-Line Non-Breakable Water Resistant, Series: HEB, 600 V, 30 A, 1 Pole, Copper Crimp Line/Load, 6 AWG, (2) 10 AWG Line, 6 AWG, (2) 10 AWG Load Wire, 1-1/2 in Fuse Length, 13/32 in Fuse Dia, -40 to 221 deg F, For Use With: 13/32 x 1-1/2 in BAF, FNM, FNQ, KTK Series Fuse, Black, 5.9 in L
Specifications
Amperage Rating |
30 A |
Color |
Black |
Connection Type |
Copper Crimp Line/Load |
Dimensions |
5.9 in L |
Fuse Diameter |
13/32 in |
Fuse Length |
1-1/2 in |
Number of Poles |
1 |
Series |
HEB |
Suitable For Use With |
13/32 x 1-1/2 in BAF, FNM, FNQ, KTK Series Fuse |
Temperature Rating |
-40 to 221 deg F |
Type |
In-Line Non-Breakable Water Resistant |
Voltage Rating |
600 V |
Wire Size |
6 AWG, (2) 10 AWG Line, 6 AWG, (2) 10 AWG Load |
Standard Approval |
CSA File No.47235|RoHS Compliant |
Application |
Stationary Machine Equipment in Factory and Robotics Applications |
Documentation
Catalog https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_522a51efc2d51794bb4d0174e029dd76ce2c34233dec186d97d12d739afb93bf.pdf
Specification Sheet https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_978a1d7aa1e4bf31e6afc7a201ddbfe6e18e61acc9f08ea52a7e815bec91190c.pdf
VIDEO LINK
https://www.youtube.com/watch?v=YMvqUyoETXk
