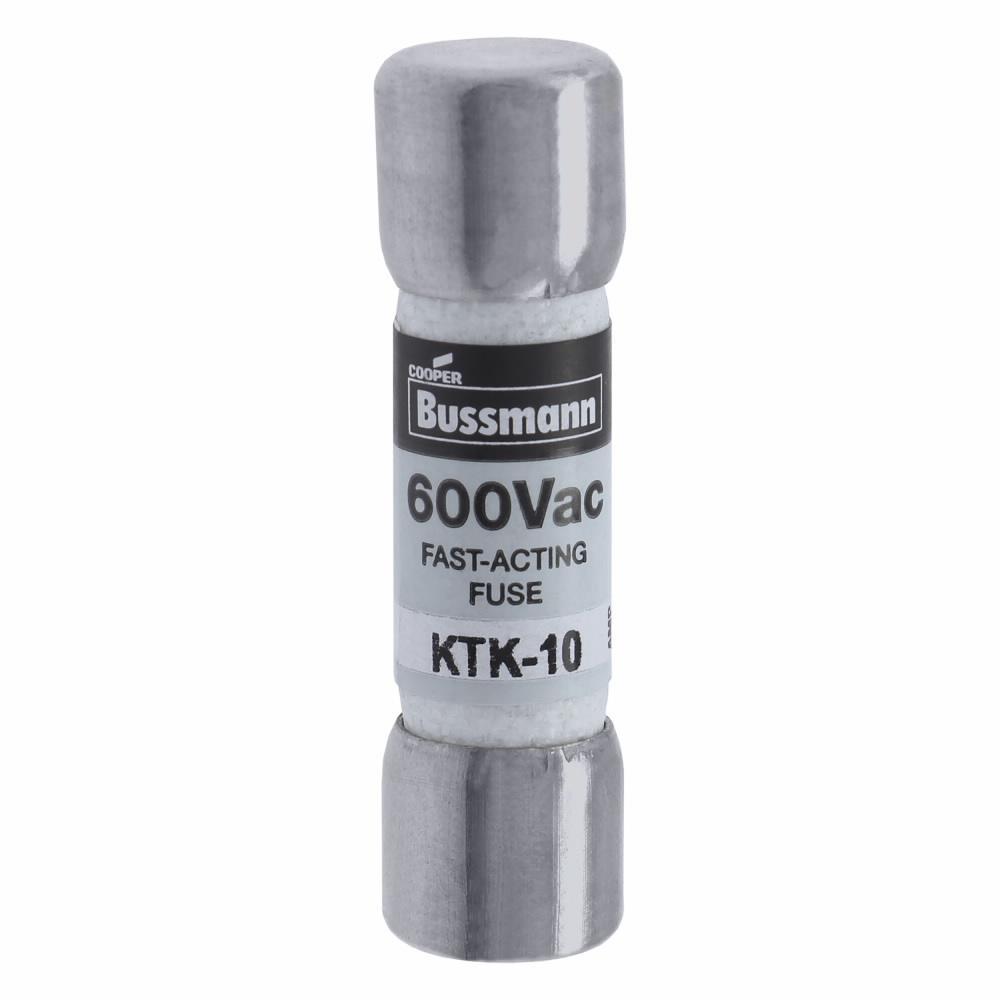

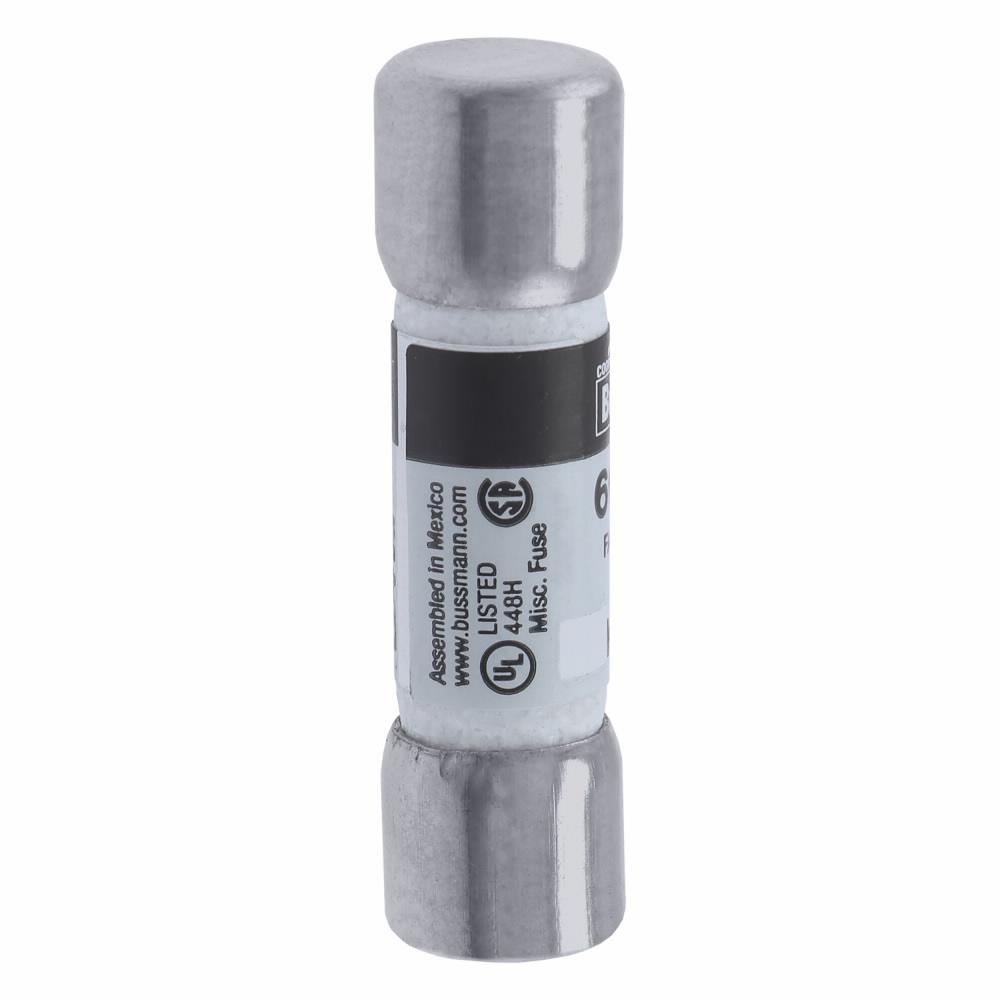

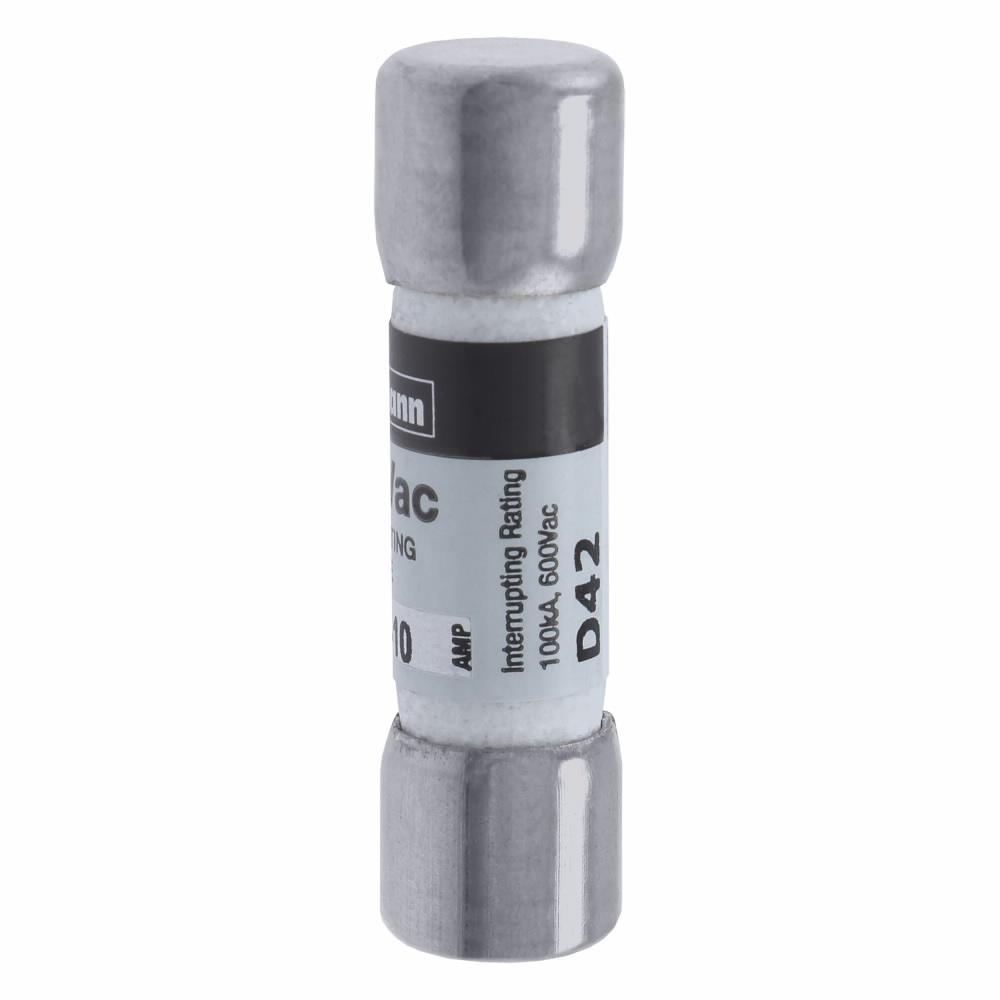

Bussmann KTK-10
Bussmann Limitron™ KTK-10 Fast Acting Low Voltage Supplemental Fuse, 10 A, 600 VAC, 100000 A Interrupt, Class: Supplemental, Cartridge Body
Brand: Bussmann
Item ID: 6175
MPN: KTK-10
Login for Price
Features
- Low cost supplemental protection of 600 VAC or less non-inductive circuits
- Upgrade with LP-CC product to reduce SKU investment and minimize potential arc flash hazards
- Color coded black for 600 VAC
- Fast acting for resistive loads
- Nickel plated bronze end caps
Description
Bussmann Limitron™ Fuse, Fast Acting Low Voltage Supplemental, Series: KTK, Indicating/Non-Indicating: Non-Indicating, Rejection/Non-Rejection: Non-Rejection, 10 A, 600 VAC, 100000 A Interrupt, Class: Supplemental, Ferrule Terminal, Holder Mount, Cartridge Body Type, Single Element, Melamine, Black, 13/32 in Dia x 1-1/2 in L Body Size
Specifications
Amperage Rating |
10 A |
Body Size |
13/32 in Dia x 1-1/2 in L |
Body Type |
Cartridge |
Class |
Supplemental |
Color |
Black |
Element |
Single |
Indicating/Non-Indicating |
Non-Indicating |
Interrupt Rating |
100000 A |
Material |
Melamine |
Mounting Type |
Holder |
Rejection/Non-Rejection |
Non-Rejection |
Series |
KTK |
Terminal Type |
Ferrule |
Type |
Fast Acting Low Voltage Supplemental |
Voltage Rating |
600 VAC |
Standard Approval |
CE Certified|CSA 1422-01/File No. 53787|CSA C22.2 No. 248.14|RoHS Compliant|UL 248-14|UL File No. E19180|UL Guide JDYX |
Application |
Control Circuits, Lighting Circuit Protection and Meter Circuit Applications, Safety and Security Systems |
Documentation
Specification Sheet https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/KTK_10_Specification_Sheet_01.pdf
VIDEO LINK
https://www.youtube.com/watch?v=YMvqUyoETXk
