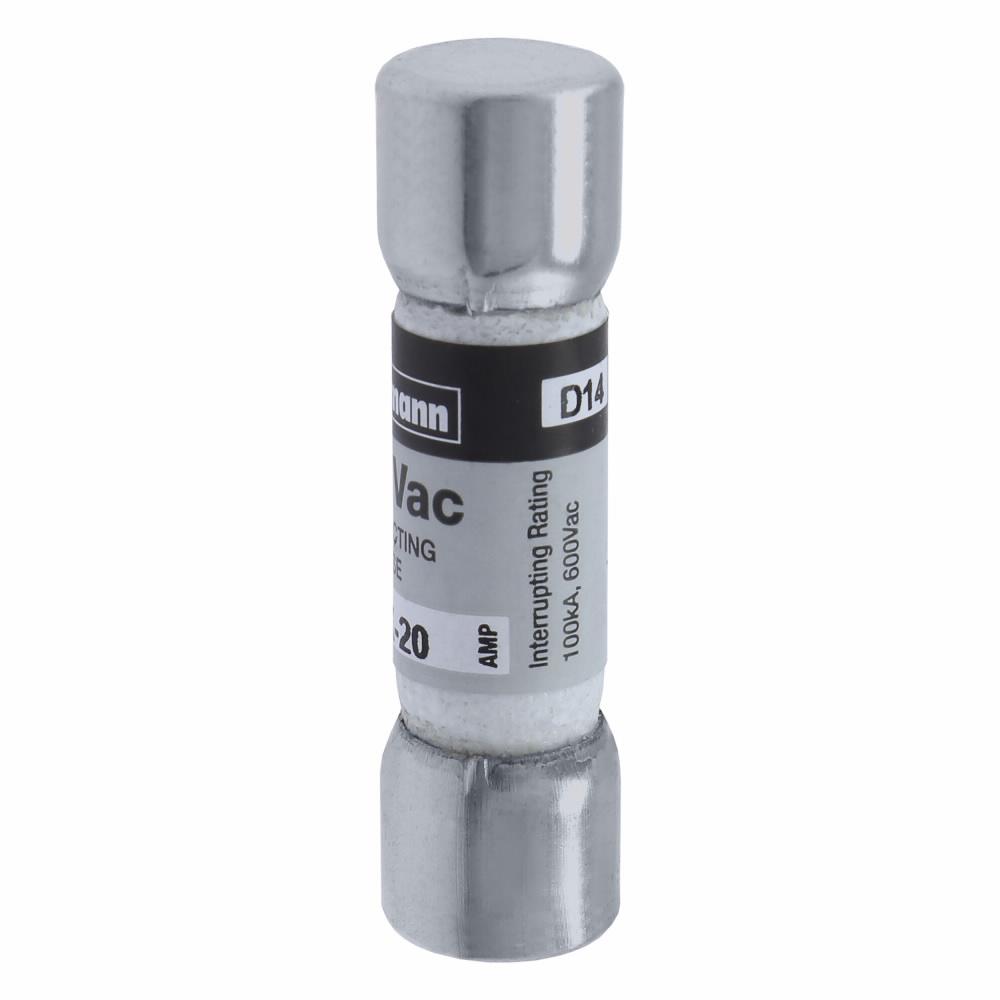

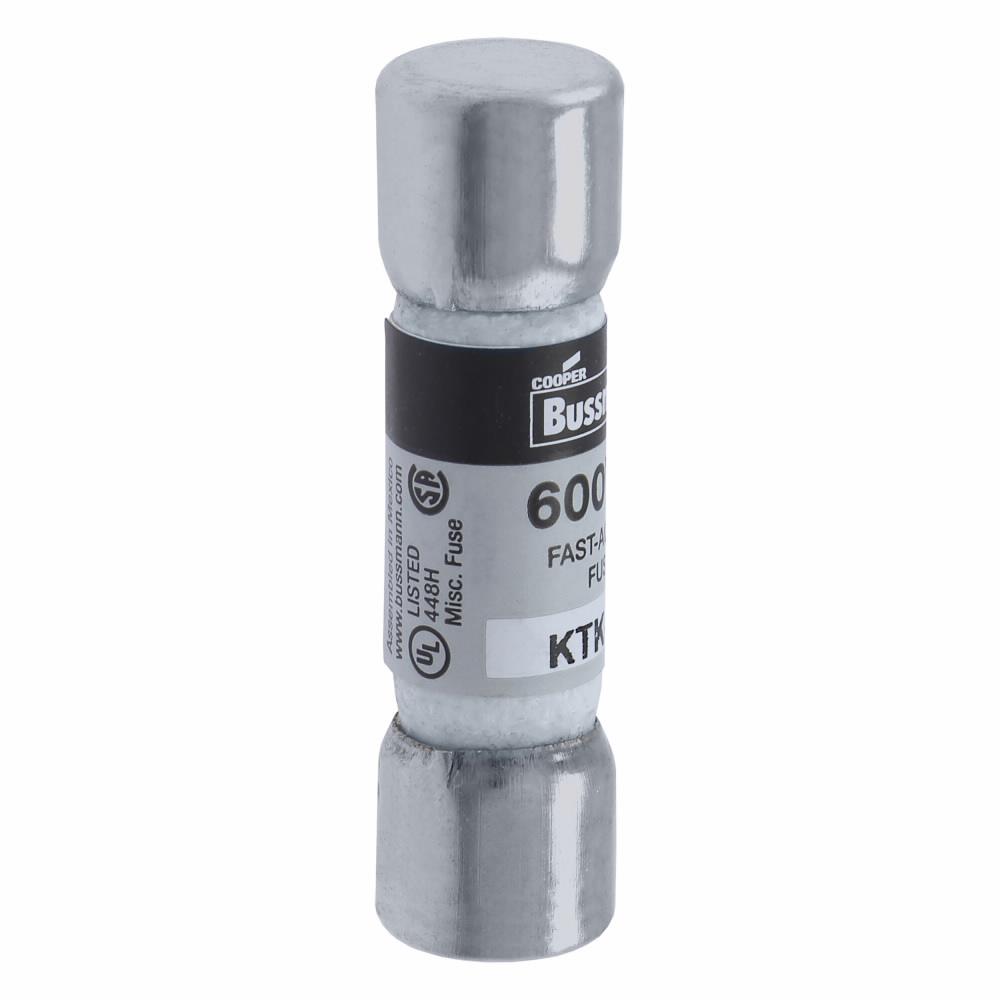

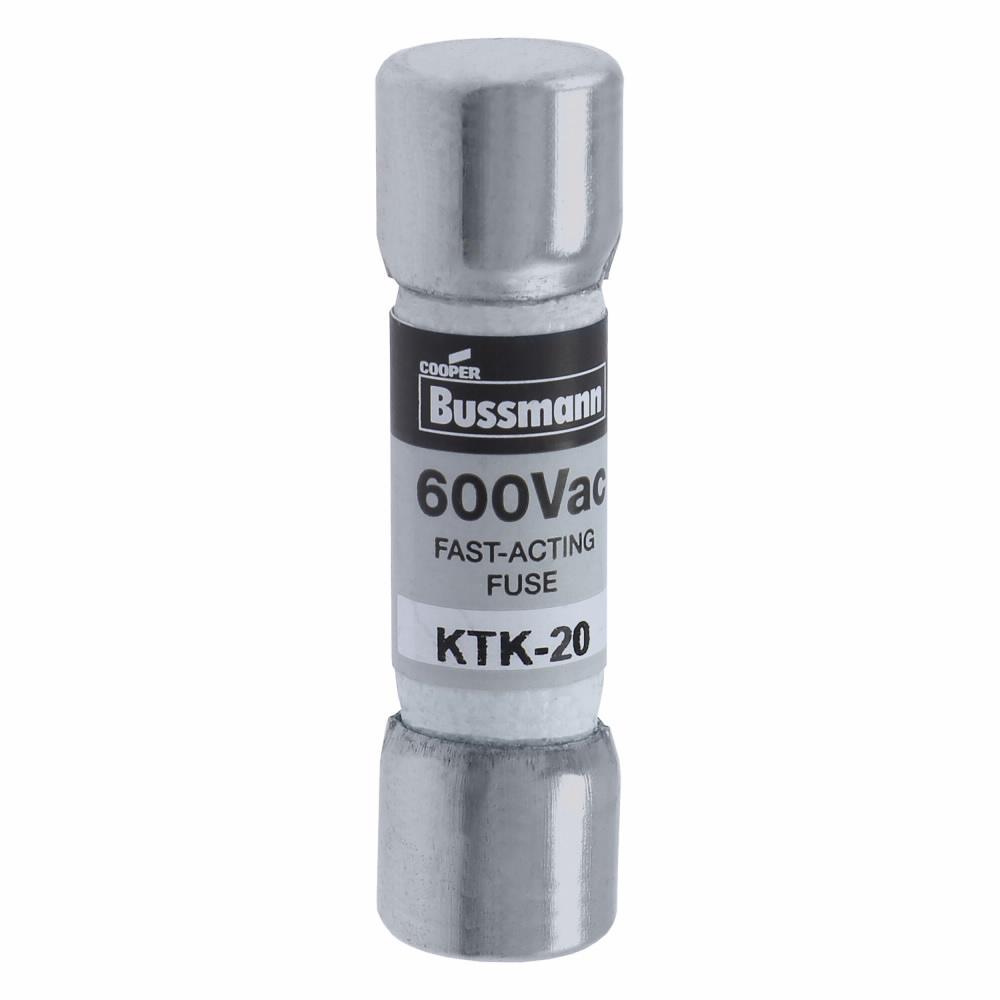

Bussmann KTK-20
Bussmann Limitron™ KTK-20 Fast Acting Low Voltage Supplemental Fuse, 20 A, 600 VAC, 100 kAIC Interrupt, Class: Supplemental, Cartridge Body
Brand: Bussmann
Item ID: 6180
MPN: KTK-20
UPC: 051712420204
Login for Price
Features
- Low cost supplemental protection of 600 VAC or less non-inductive circuits
- Upgrading to Low-Peak™ class CC product to reduce SKU investment and minimize potential arc flash hazards
- Color coded black for 600 VAC
- Fast acting for resistive loads
- Nickel plated bronze end caps
Description
Bussmann Limitron™ Fuse, Fast Acting Low Voltage Supplemental, Series: KTK, Indicating/Non-Indicating: Non-Indicating, Rejection/Non-Rejection: Non-Rejection, 20 A, 600 VAC, 100 kAIC Interrupt, Class: Supplemental, Ferrule End Terminal, Holder Mount, Cartridge Body Type, Single Element, Nickel Plated Bronze, Black, 13/32 in Dia x 1-1/2 in L Body Size
Specifications
Amperage Rating |
20 A |
Body Size |
13/32 in Dia x 1-1/2 in L |
Body Type |
Cartridge |
Class |
Supplemental |
Color |
Black |
Element |
Single |
Indicating/Non-Indicating |
Non-Indicating |
Interrupt Rating |
100 kAIC |
Material |
Nickel Plated Bronze |
Mounting Type |
Holder |
Rejection/Non-Rejection |
Non-Rejection |
Series |
KTK |
Terminal Type |
Ferrule End |
Type |
Fast Acting Low Voltage Supplemental |
Voltage Rating |
600 VAC |
Standard Approval |
CE Certified|CSA C22.2 No. 248.14|Class 1422-01 File No. 53787|RoHS Compliant|UL 248-14 Guide No. JDYX File No. E19180 |
Application |
Industrial Facilities and Factory Facilities, Safety and Security Systems, Control Circuits, Lighting Circuit Protection and Meter Circuit Applications |
Documentation
Specification Sheet https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/KTK_20_Specification_Sheet_01.pdf
VIDEO LINK
https://www.youtube.com/watch?v=YMvqUyoETXk
