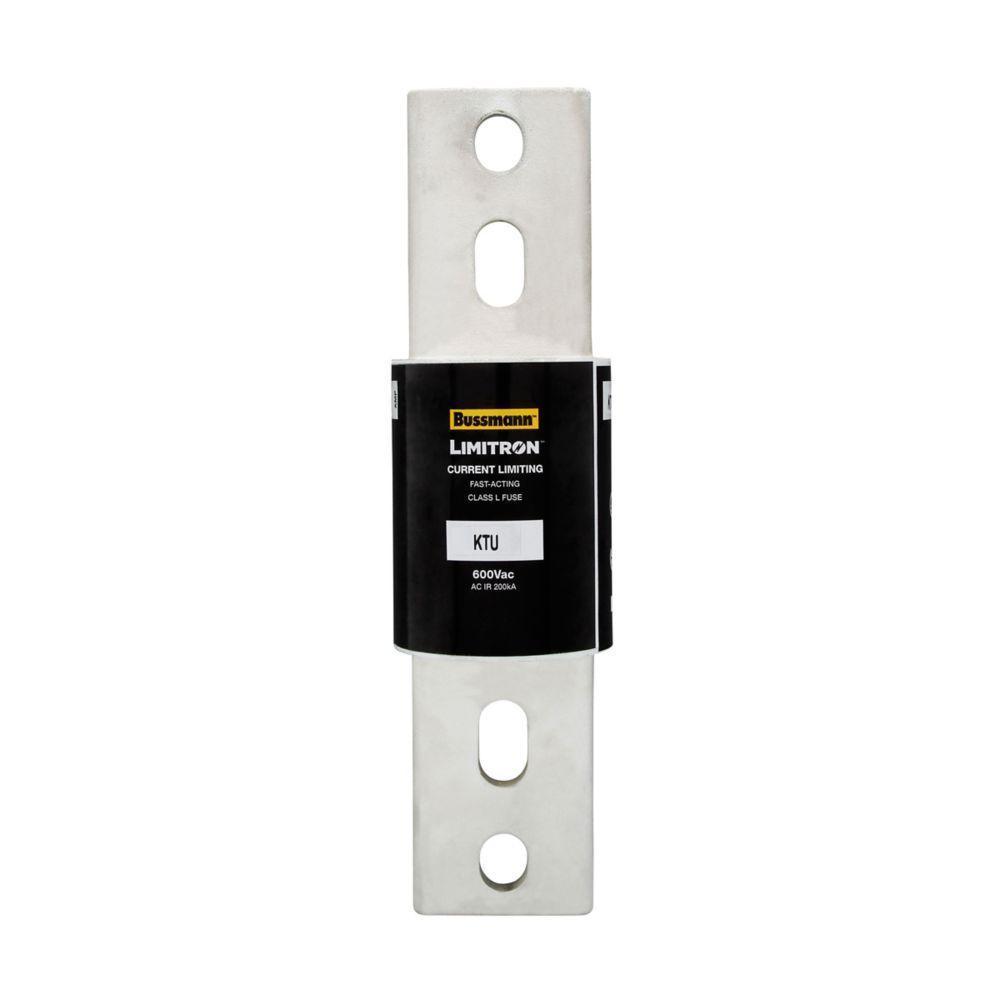

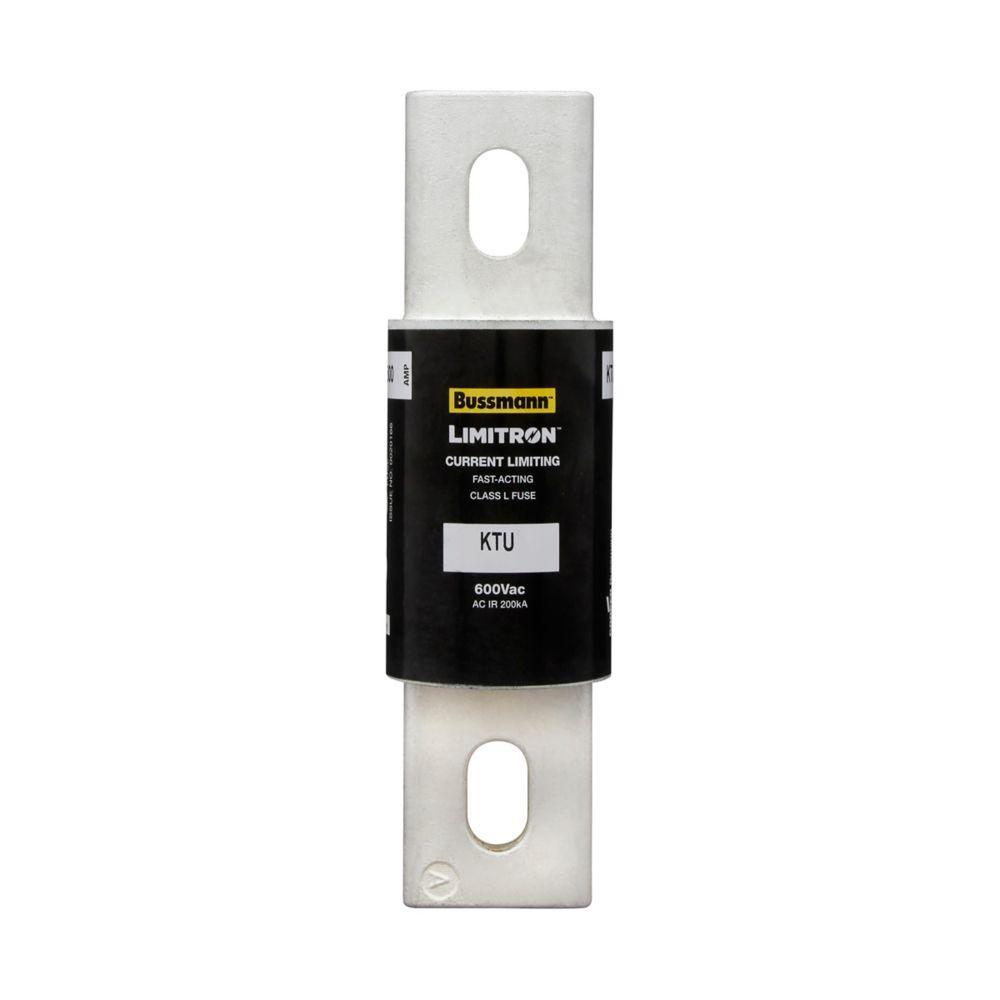

Bussmann KTU-600

• Provides 10X better current limitation to help prevent equipment damage caused by short circuit events
• Fast acting fuse helps prevent equipment damage caused by short circuit events
• O-ring seals maximize pressure build-up during current limiting action and ensure filter retention
• 99.9% pure silver links provide low watt loss with low operating temperature on normal current levels and minimizes total clearing it fault energy left through
• Ideal for critical industrial or commercial applications that have specific current limitation requirements
• Silver plated end bell

Bussmann's broad line of UL Class L fuses includes the KRP-C-SP Low-Peak family of fuses offering unsurpassed dual-element, current-limiting, time-delay performance and interrupting ratings of 300kA RMS Sym. Complementing the Low-Peak family are our Limitron products offering both Fast-acting and economical time-delay performance in our KTU, KLU, and KRP-CL products

Bussmann Limitron™ Fuse, Current Limiting Fast Acting, Series: KTU, Indicating/Non-Indicating: Non-Indicating, Rejection/Non-Rejection: Non-Rejection, 600 A, 600 V, 200 kAIC Interrupt, Class: L, Bolted Blade End Terminal, Bolted-On Mount, Cartridge Body, Single Element, Melamine Glass Tube, 2.5 in Dia x 8.63 in L Body Size
