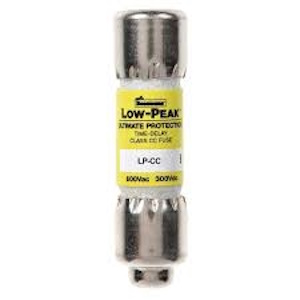

Bussmann LP-CC-1/2

• Ampere Rating: ½ Amp

• Voltage Rating: 600V AC / 300V DC

• Interrupting Rating: 200kA at 600V AC; 20kA at 300V DC

• Fuse Class: Class CC

• Time-Delay: Minimum 12 seconds at 200% of rated current

• Dimensions: 1.5" length x 0.41" diameter (10.3 x 38.1 mm)

• Construction: Melamine tube with ferrule ends

• Certifications: UL Listed, CSA Certified, CE Marked, RoHS Compliant

• Applications: Ideal for small horsepower motor circuits, control circuits, and branch circuit protection

The Bussmann LP-CC-1/2 fuse is part of Eaton's Low-Peak™ series, offering a dual-element, time-delay design that provides excellent protection against overloads and short circuits. With a high interrupting rating of 200kA at 600V AC, it ensures safety in demanding applications. Its compact size and rejection-style end caps make it suitable for space-constrained installations, while its current-limiting feature minimizes damage to equipment during fault conditions.
