Bussmann NO.663-R

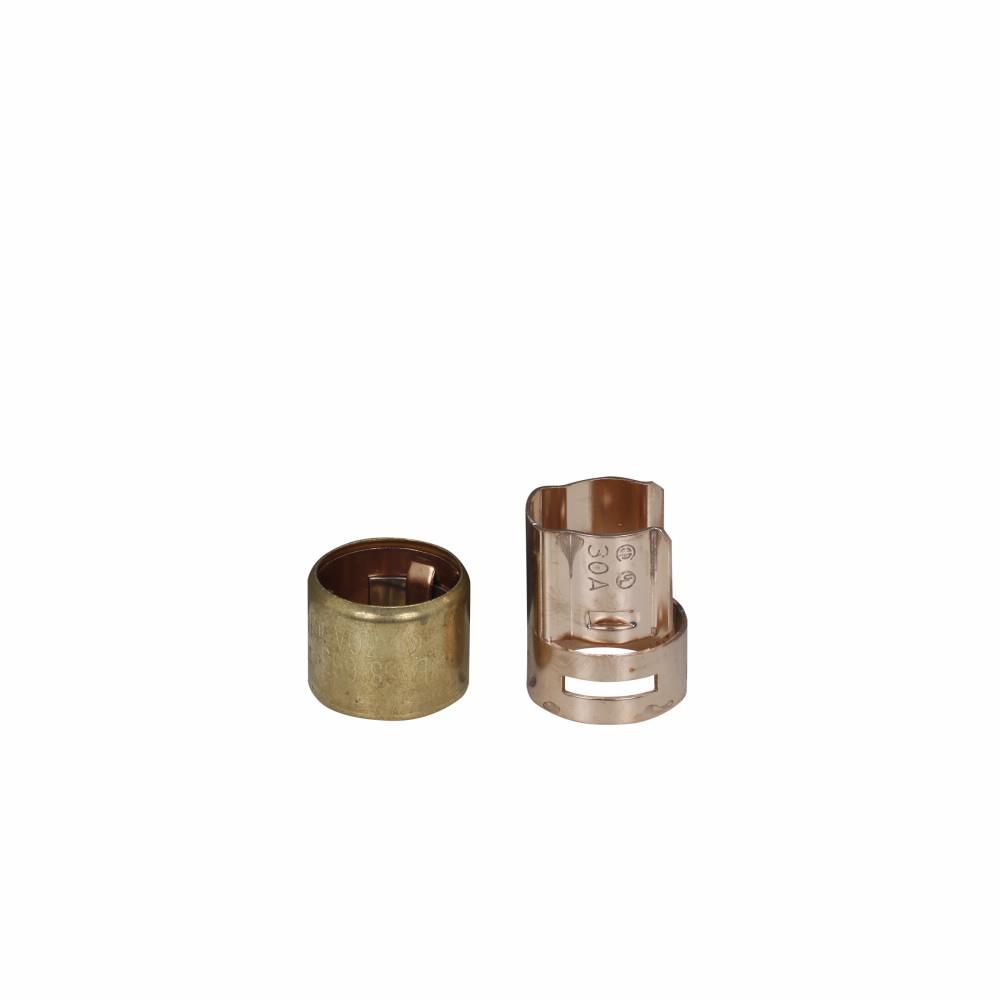

Bussmann NO.663-R Non-Indicating Rejection Fuse Reducer, 600 V, 60 A, Class: R, 30 A Fuse
Brand: Bussmann
Item ID: 445062
MPN: NO.663-R
Login for Price
Features
- For use with FRN-R, LPN-RK, FRS-R, LPS-RK KTN-R, KTS-R series class R ferrule and blade end fuses
- Allows 1 to 30 A fuse to fit 60 A fuse block
- Reducers fit into most panels or switches including the dead front type
- Strong contact is maintained both mechanically and electrically
- There are no reducers for switching from one class to another
- Short circuit current rating (SCCR) up to fuse interrupt rating
- For used to permit the application of smaller size fuses than those for which the fuse blocks or holders are designed
Description
A range of Bussman series fuse reducers for class H(K), J and R ferrule and blade fuses. fuse reducers install on fuse ferrules or blades to permit the application of smaller size fuses than those for which the fuse blocks or holders are designed.
Bussmann Fuse Reducer, Non-Indicating Rejection, 60 A, 600 V, Class: R, 30 A Fuse
Specifications
Amperage Rating |
60 A |
Class |
R |
Fuse Size |
30 A |
Type |
Non-Indicating Rejection |
Voltage Rating |
600 V |
Standard Approval |
CSA File No.47235|UL File No.E12853 Guide IZZR |
Application |
Electrical Assemblies, Panels and EOEMs Applications |
Documentation
Catalog https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_90e3248925095ce9de99bf9c4092a172710aa68d0447972ee0022dc34fb0189d.pdf
Line Drawing https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_b0238e192500b74ea0b19020a0aa3988ed1e5affcd5fdc16f54566b36cfbcf65.pdf
Specification Sheet https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_869ebd585a0f9462079a500c5eddfad209a4a4ad9d48b9126e4592ec1ef0d908.pdf
