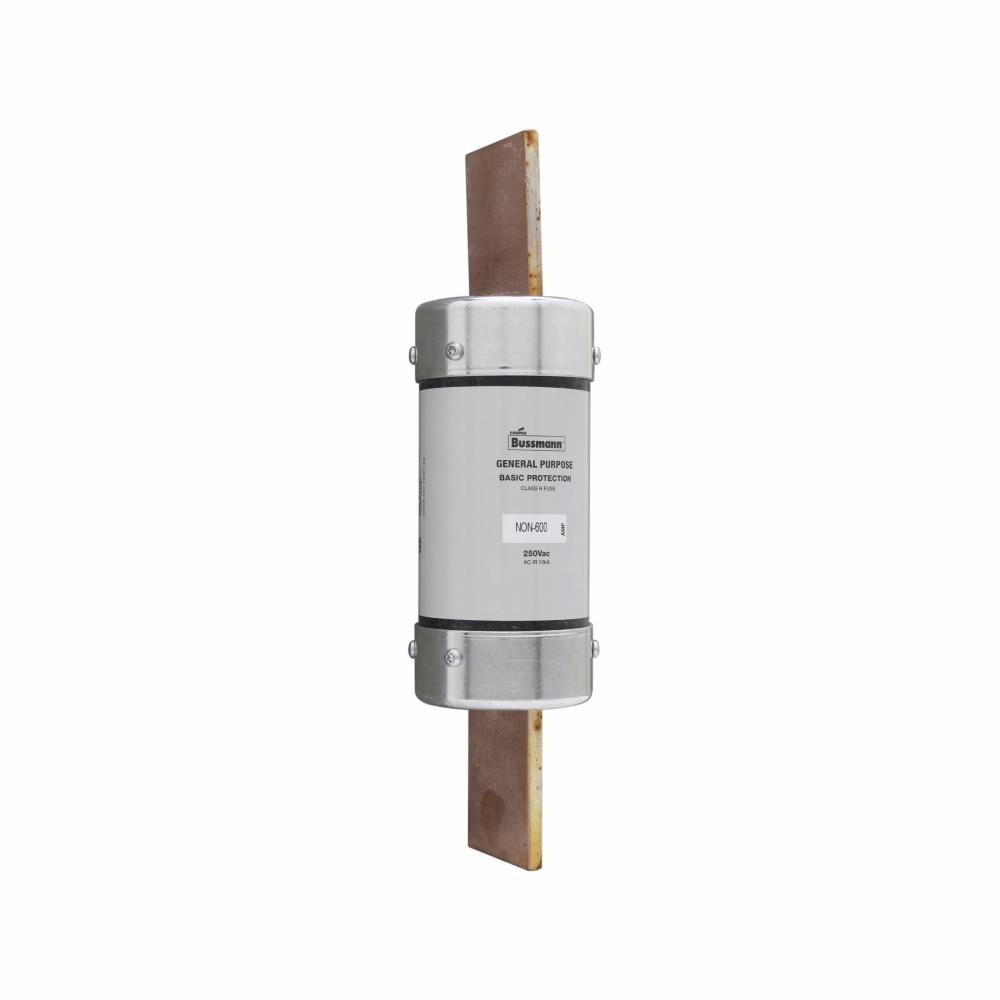

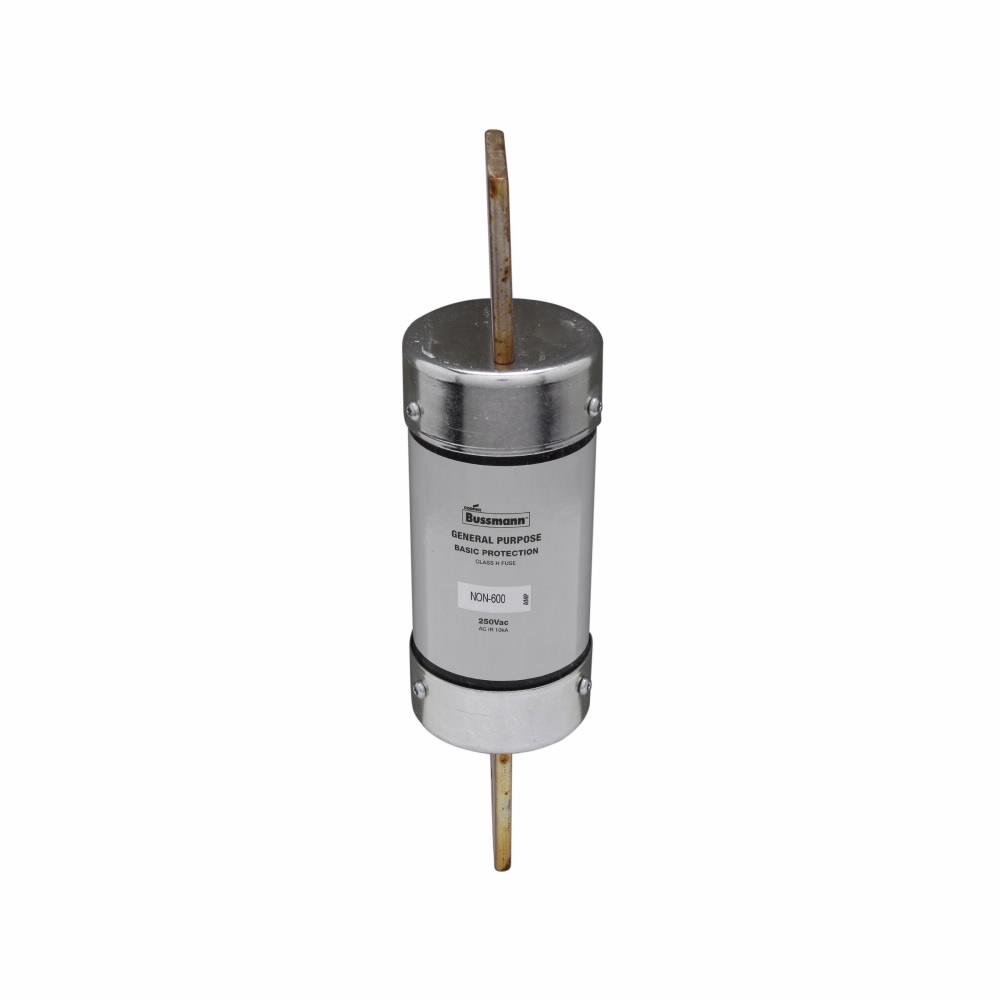

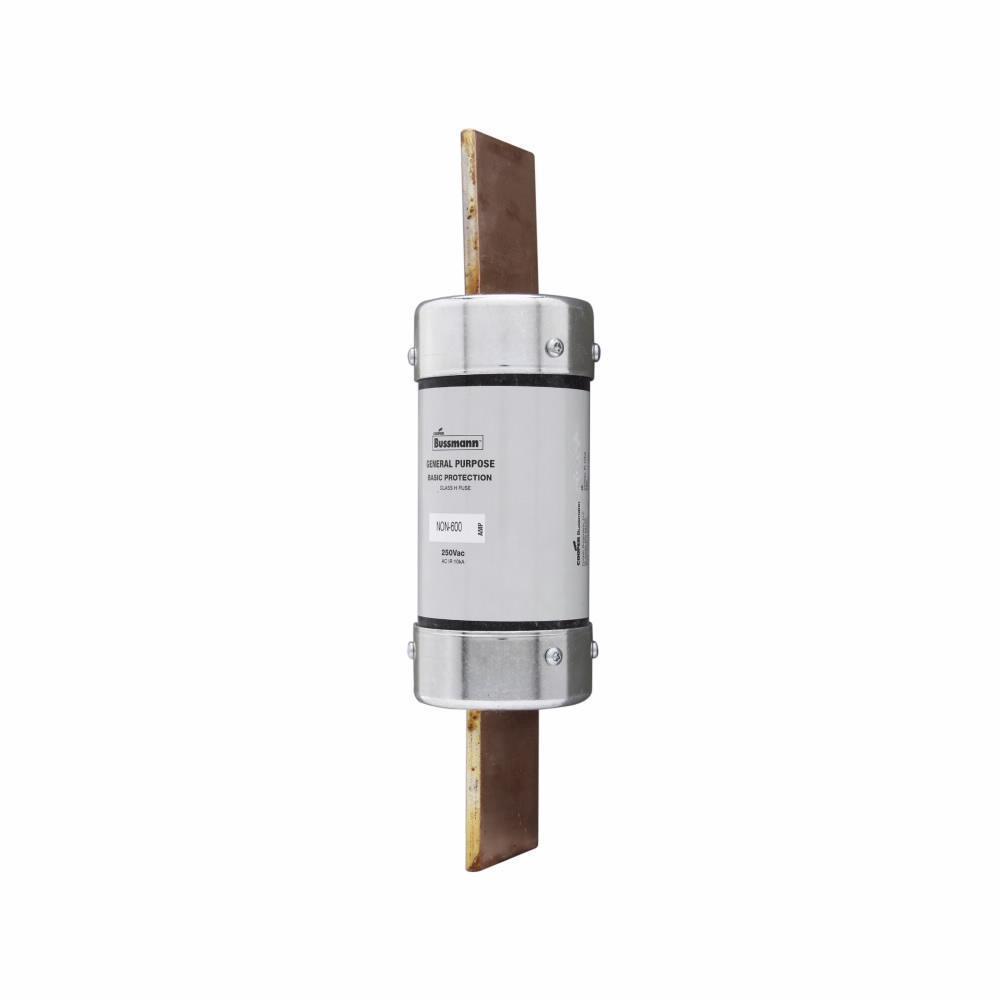

Bussmann NON-600
Bussmann NON-600 One-Time Non-Current Limiting Fuse, 600 A, 250 VAC, 10 kAIC Interrupt, Class: H, Cartridge Body
Brand: Bussmann
Item ID: 476575
MPN: NON-600
Login for Price
Features
- Original fuse providing circuit protection
- Protect lighting, heating and other circuits not subject to temporary surges and where available short circuit currents are relatively low
- Do not have any appreciable degree of time delay and thus should not be specified in circuits where large transients or motor overloads occur
- Use Bussmann advanced protection Fusetron™ FRN-R or ultimate protection Low-Peak™ LPN-RK dual element, time delay fuses
- For general purpose circuits, size at amp rating of circuit
- For motor circuits, size at 300% to 400% according to the NEC motor ampacity tables 430.247/430.250/ 430.6(A)(1)
- One-time fuse
Description
Bussmann Fuse, One-Time Non-Current Limiting, Series: NON, Indicating/Non-Indicating: Non-Indicating, Rejection/Non-Rejection: Rejection, 600 A, 250 VAC, 10 kAIC Interrupt, Class: H, Blade End Terminal, Holder Mount, Cartridge Body Type, Melamine, 2.59 in Dia x 10.38 in L Body Size
Specifications
Amperage Rating |
600 A |
Body Size |
2.59 in Dia x 10.38 in L |
Body Type |
Cartridge |
Class |
H |
Indicating/Non-Indicating |
Non-Indicating |
Interrupt Rating |
10 kAIC |
Material |
Melamine |
Mounting Type |
Holder |
Rejection/Non-Rejection |
Rejection |
Series |
NON |
Terminal Type |
Blade End |
Type |
One-Time Non-Current Limiting |
Voltage Rating |
250 VAC |
Standard Approval |
CE Certified|CSA Class 1421-01 File No. 53787|UL 248-6 Guide No. JDDZ File No. E4273 |
Application |
Industrial Facilities and Factory Facility, Safety and Security Systems, Light Duty Circuit Locations Applications |
Documentation
Specification Sheet https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/NON_600_Specification_Sheet_01.pdf
VIDEO LINK
https://www.youtube.com/watch?v=YMvqUyoETXk
