Bussmann NON-80

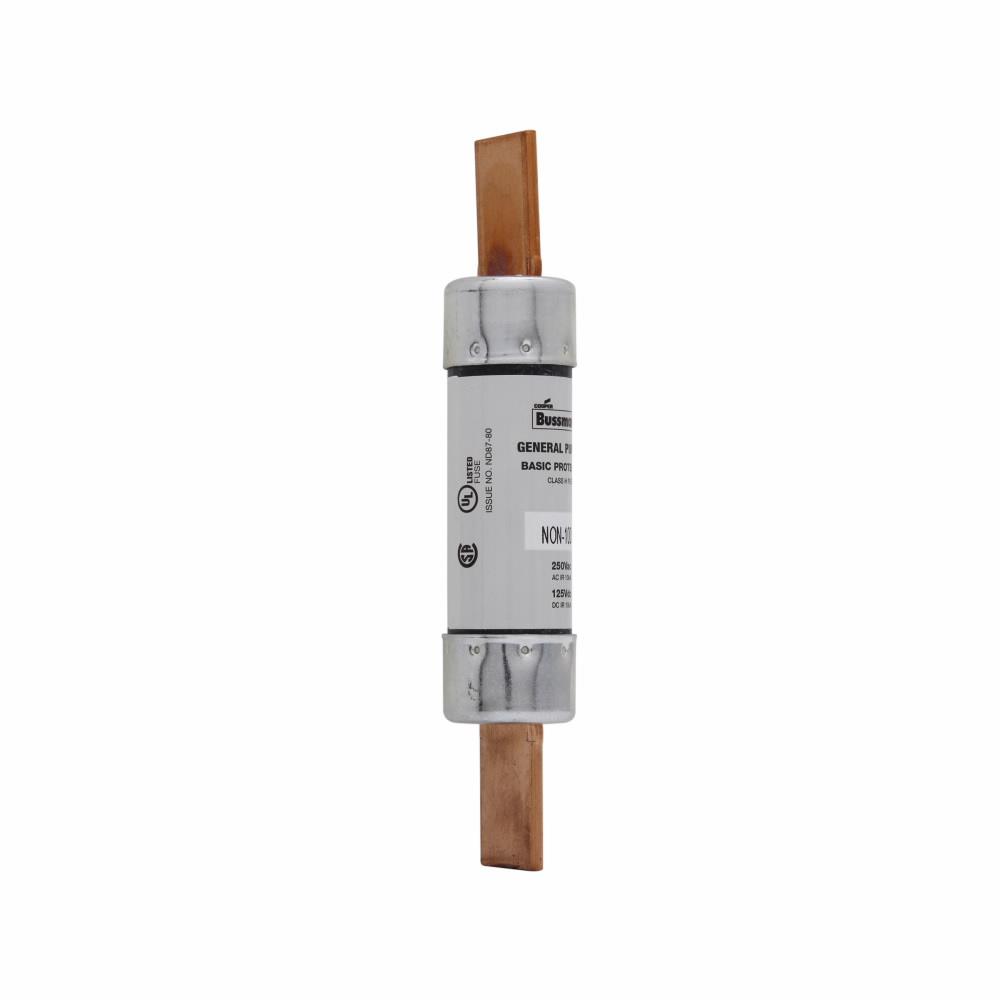

Bussmann NON-80 General Purpose Non-Current Limiting One-Time Fuse, 80 A, 250 VAC/125 VDC, 10/50 kA Interrupt, Class: H, Cartridge Blade Body
Brand: Bussmann
Item ID: 271303
MPN: NON-80
Login for Price
Features
- Original fuse providing circuit protection
- Protect lighting, heating and other circuits not subject to temporary surges and where available short circuit currents are relatively low
- Do not have any appreciable degree of time delay and thus should not be specified in circuits where large transients or motor overloads occur
- Use Bussmann advanced protection Fusetron™ FRN-R or ultimate protection Low-Peak™ LPN-RK dual element, time delay fuses
- For general purpose circuits, size at amp rating of circuit
- For motor circuits, size at 300% to 400% according to the NEC motor ampacity tables 430.247 to 430.250 per 430.6(A)(1)
Description
Bussmann One-Time Fuse, General Purpose Non-Current Limiting, Series: NON, Indicating/Non-Indicating: Non-Indicating, Rejection/Non-Rejection: Non-Rejection, 80 A, 250 VAC/125 VDC, 10/50 kA Interrupt, Class: H, Blade Terminal, Holder Mount, Cartridge Blade Body Type, Single Element, Melamine, 1.06 in Dia x 5.88 in L Body Size
Specifications
Amperage Rating |
80 A |
Body Size |
1.06 in Dia x 5.88 in L |
Body Type |
Cartridge Blade |
Class |
H |
Element |
Single |
Indicating/Non-Indicating |
Non-Indicating |
Interrupt Rating |
10/50 kA |
Material |
Melamine |
Mounting Type |
Holder |
Rejection/Non-Rejection |
Non-Rejection |
Series |
NON |
Terminal Type |
Blade |
Type |
General Purpose Non-Current Limiting |
Voltage Rating |
250 VAC/125 VDC |
Standard Approval |
CE Certified|CSA 1421-01|CSA File No. 53787|UL 248-6|UL File No. E4273|UL Guide JDDZ |
Application |
For light duty circuit locations, safety and security systems |
Documentation
Catalog https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/KLU_1600_Catalog_01.pdf
Specification Sheet https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/NON_80_Specification_Sheet_01.pdf
VIDEO LINK
https://www.youtube.com/watch?v=YMvqUyoETXk
