Bussmann S-20

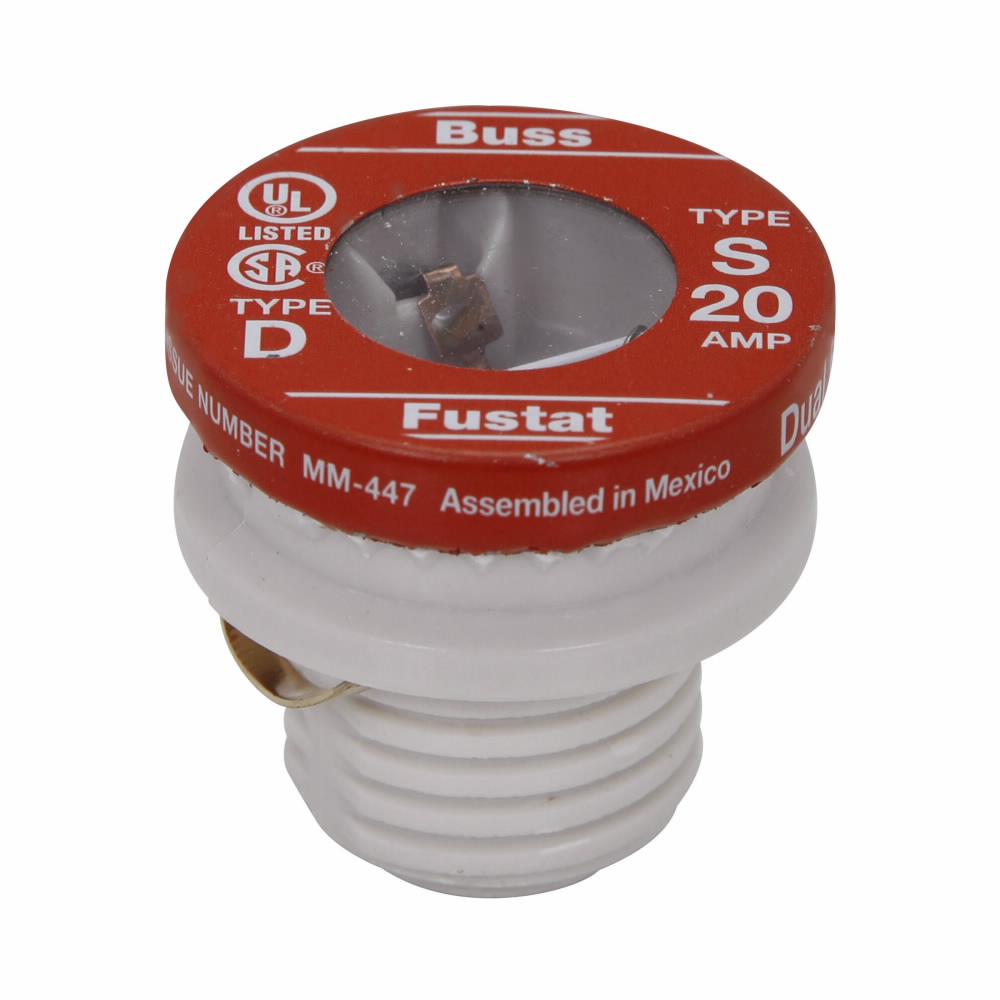

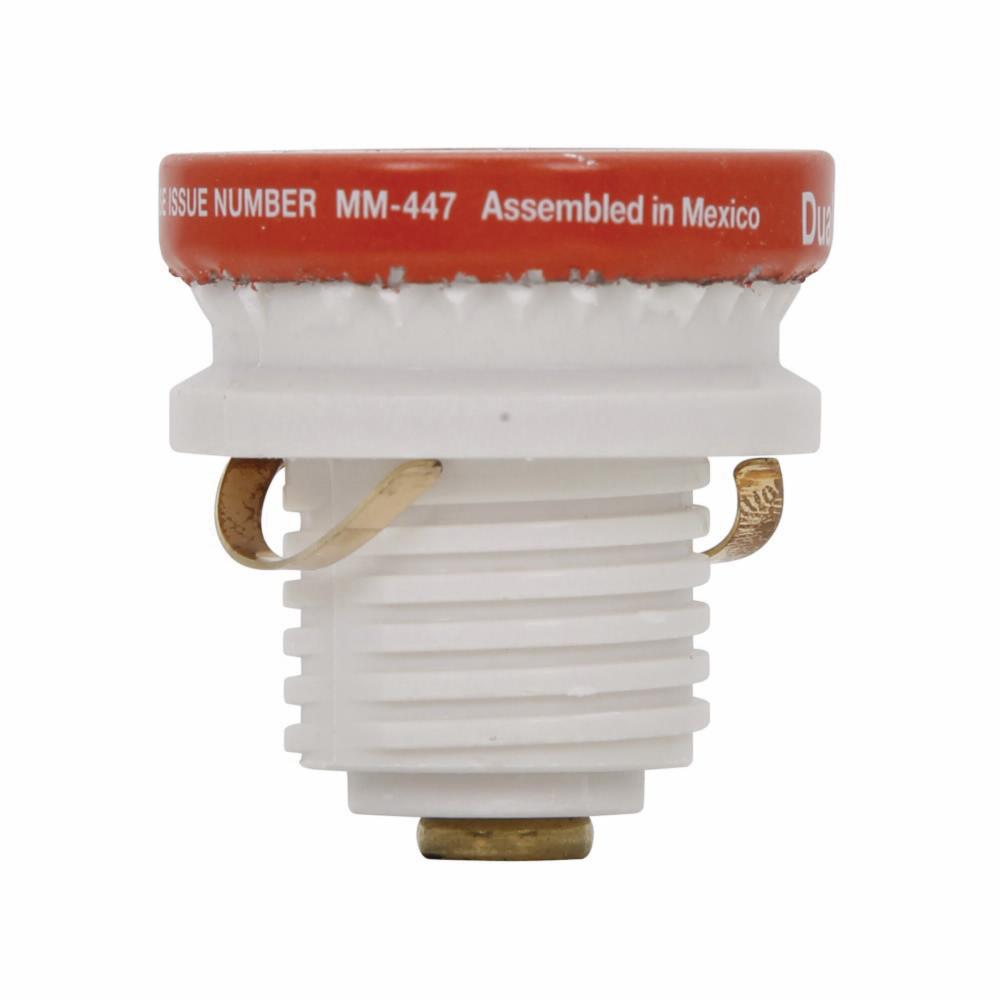

Bussmann S-20 S Series Heavy Duty Time Delay Fusestat Plug Fuse, 20 A, 125 VAC, 10 kA, Round Body
Brand: Bussmann
Item ID: 6308
MPN: S-20
Login for Price
Features
- Size rejection feature helps to prevent overfusing
- Heavy duty dual element construction
- Superior overload and short circuit protection
Description
Bussmann Fusestat Plug Fuse, Heavy Duty Time Delay, Series: S Series, Indicating, Rejection, 20 A, 125 VAC, 10 kA Interrupt, Threaded Stud Terminal, Threaded Mounting, Round Body, Dual Element, Plastic
Specifications
Amperage Rating |
20 A |
Body Type |
Round |
Element |
Dual |
Indicating/Non-Indicating |
Indicating |
Interrupt Rating |
10 kA |
Material |
Plastic |
Mounting Type |
Threaded |
Rejection/Non-Rejection |
Rejection |
Series |
S Series |
Terminal Type |
Threaded Stud |
Type |
Heavy Duty Time Delay |
Voltage Rating |
125 VAC |
Standard Approval |
PROP65:This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer and Bisphenol A (BPA), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.p65warnings.ca.gov |
Application |
For industrial motors and critical residential circuits |
Documentation
Catalog https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_39c90a33322bc20ec73de2d03c062f9cfc43a9c0e2231fa2e665d0070d11beb2.pdf
Line Drawing https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_d442e7cc46791251fd77177d5148c2b8e4dc2cfd4675169308e79c133e4229bb.pdf
Specification Sheet https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_eda719e3150dfdb915cf9a6bfaf62d81910877de0520979255adbd1eb5219590.pdf
VIDEO LINK
https://www.youtube.com/watch?v=YMvqUyoETXk
Warranty Information https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Bussmann_NON_20_Warranty.pdf
