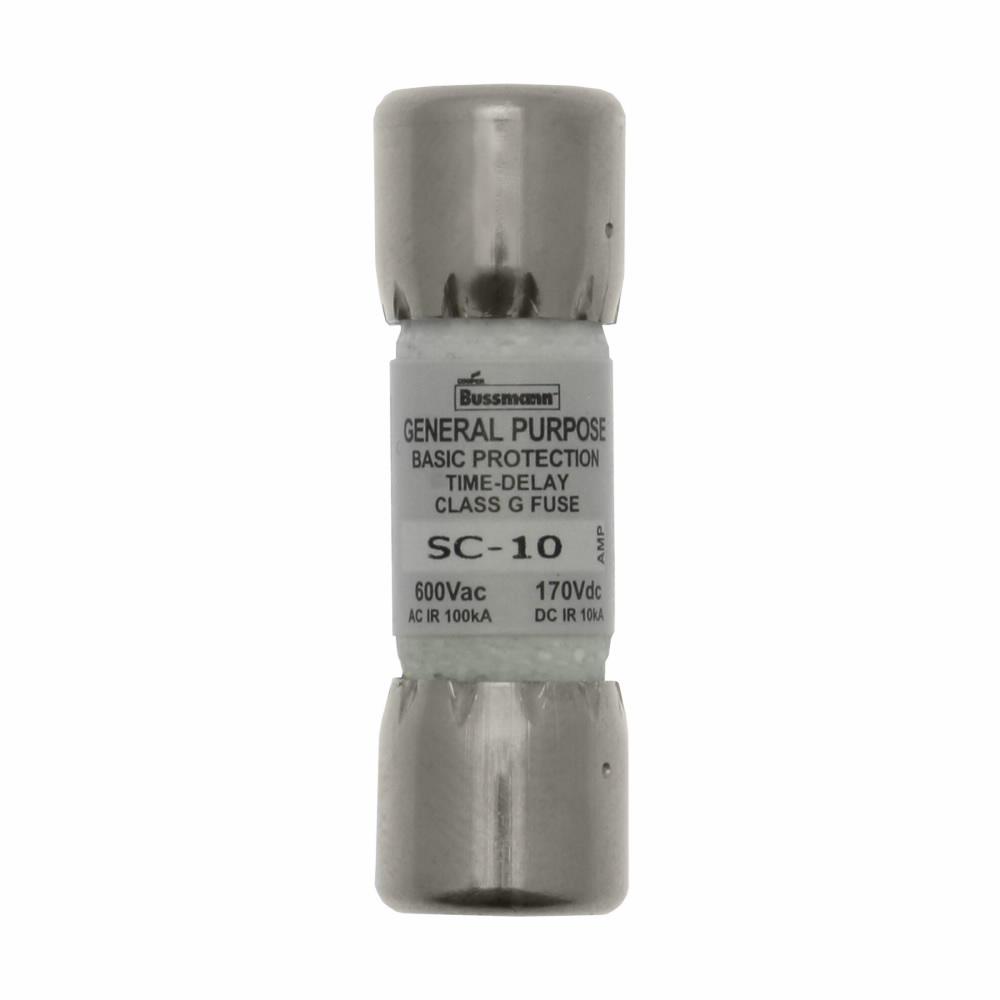

Bussmann SC-10

• Most economical overcurrent protection solution compared to circuit breakers
• For use in various non-demanding, general purpose applications
• Compact branch circuit units with high interrupt rating and current limitation
• Size rejection by length helps prevent over fusing
• Fuses 7 A and above have a degree of overload time delay that permits them to pass temporary overloads
• 100 kA at 600 VAC, 10 kA at 170 VDC interrupt rating

Bussmann's SC type fuses are UL Class G and provide fast-acting (1/2-6 A) and time-delay (7-60 A) characteristics for circuit protection need. SC fuses are size rejecting in terms of their overall length thereby aiding in the prevention of overfusing

Bussmann Fuse, Current Limiting Time Delay, Series: SC Series, Indicating/Non-Indicating: Non-Indicating, Rejection/Non-Rejection: Rejection, 10 A, 600 VAC/170 VDC, 100/10 kAIC Interrupt, Class: G, 12 s at 200% Response, Ferrule End Terminal, Holder Mount, Cartridge Body Type, Melamine, 0.41 in Dia x 1.31 in L Body Size
