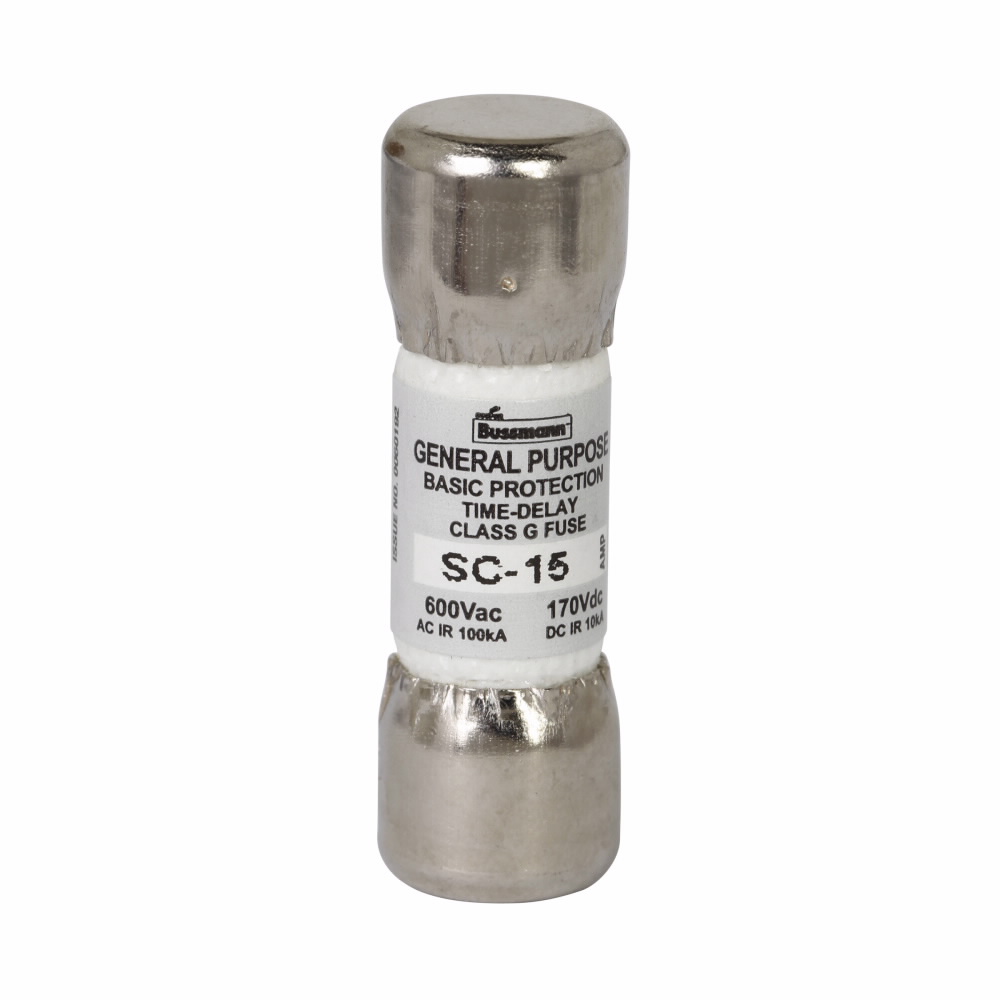

Bussmann SC-15
Bussmann SC-15 Current Limiting Time Delay Fuse, 15 A, 600 VAC/170 VDC, 100/10 kAIC Interrupt, G Class, Cylindrical Body
Brand: Bussmann
Item ID: 6323
MPN: SC-15
Login for Price
Description
Bussmann's SC type fuses are UL Class G and provide fast-acting (1/2-6 A) and time-delay (7-60 A) characteristics for circuit protection need. SC fuses are size rejecting in terms of their overall length thereby aiding in the prevention of overfusing
Bussmann Fuse, Current Limiting Time Delay, Series: SC Series, Indicating/Non-Indicating: Non-Indicating, Rejection/Non-Rejection: Rejection, 15 A, 600 VAC/170 VDC, 100/10 kAIC Interrupt, Class: G, 12 s at 200% Response, Ferrule End Terminal, Holder Mount, Cylindrical Body Type, Dual Element, Melamine, 0.41 in Dia x 1.31 in L Body Size
Specifications
Amperage Rating |
15 A |
Body Size |
0.41 in Dia x 1.31 in L |
Body Type |
Cylindrical |
Class |
G |
Element |
Dual |
Indicating/Non-Indicating |
Non-Indicating |
Interrupt Rating |
100/10 kAIC |
Material |
Melamine |
Mounting Type |
Holder |
Rejection/Non-Rejection |
Rejection |
Response Time |
12 s at 200% |
Series |
SC Series |
Terminal Type |
Ferrule End |
Type |
Current Limiting Time Delay |
Voltage Rating |
600 VAC/170 VDC |
Standard Approval |
CE Certified|CSA C22.2 File No.53787/E4273/248.5 Guide JDDZ|NEC Certified|UL 248-5 |
Application |
Industrial Facilities and Factories, Safety and Security Systems, Fusible Branch Panel Boards and HV Branch Circuit Protection Applications |
Documentation
Catalog https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_a73e48a1324643bc8154f8cc8ce546c3c38d7d1d19c040eb3ba364d2fb957940.pdf
Line Drawing https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_4ca2833cf37a296f6493504436d3ca898572e2255b05cedb1776e207a3c39ca5.pdf
Specification Sheet https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_7745b770125421d659a7307dc8e8058dad1269b2f88cb0bd1337d59445fb2b3e.pdf
