Bussmann SC-20

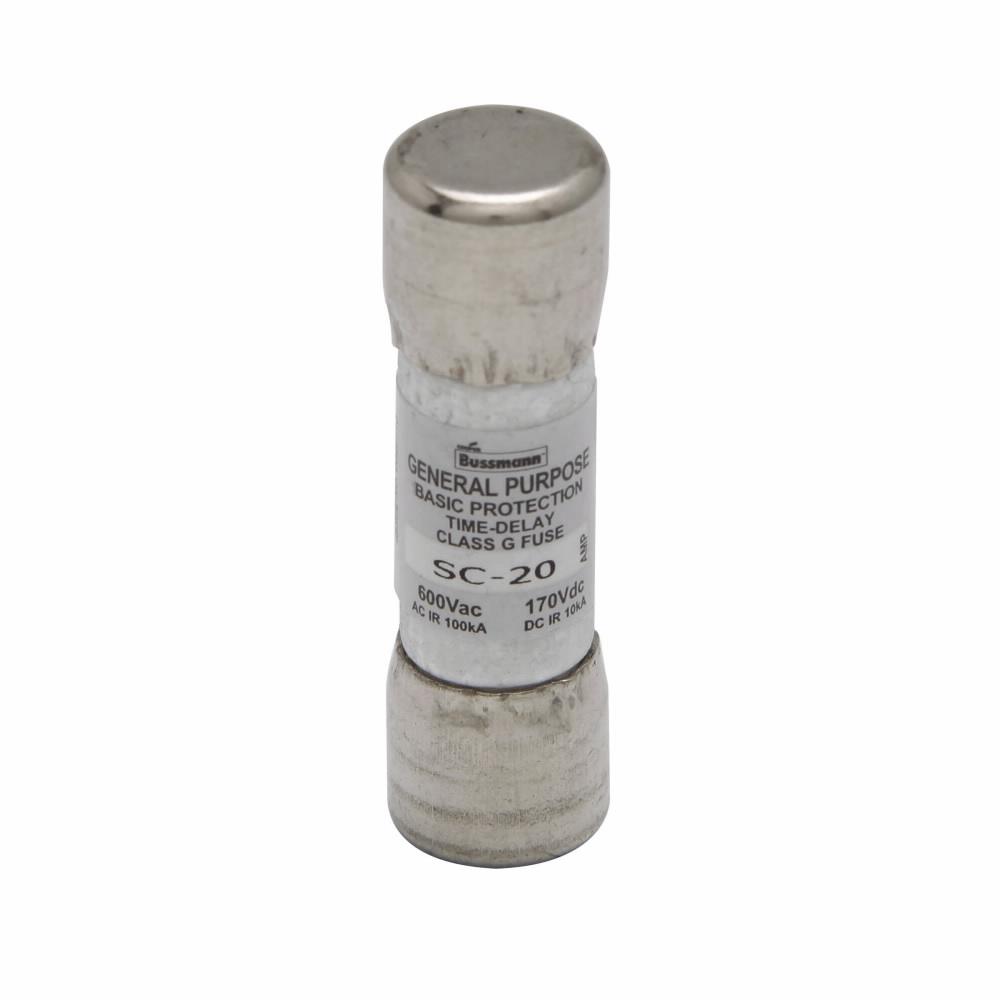

Bussmann SC-20 SC Series Current Limiting Time Delay Fuse, 20 A, 600 VAC/170 VDC, 100/10 kA Interrupt, Class: G, Cylindrical Body
Brand: Bussmann
Item ID: 6324
MPN: SC-20
Login for Price
Description
Bussmann's SC type fuses are UL Class G and provide fast-acting (1/2-6 A) and time-delay (7-60 A) characteristics for circuit protection need. SC fuses are size rejecting in terms of their overall length thereby aiding in the prevention of overfusing
Bussmann Time Delay Fuse, Current Limiting, Series, Indicating/Non-Indicating: Non-Indicating, Rejection/Non-Rejection, 20, Voltage Rating A, 100/10 Interrupt, Class kA, Frequency Rating, 12 Response, Terminal Type s, Holder Mount, Body Type, Dual Element, Material, Body Size
Specifications
Amperage Rating |
20 A |
Body Size |
0.41 in Dia x 1.41 in L |
Body Type |
Cylindrical |
Class |
G |
Element |
Dual |
Indicating/Non-Indicating |
Non-Indicating |
Interrupt Rating |
100/10 kA |
Material |
Melamine |
Mounting Type |
Holder |
Rejection/Non-Rejection |
Rejection |
Response Time |
12 s |
Series |
SC Series |
Terminal Type |
Ferrule |
Type |
Current Limiting |
Voltage Rating |
600 VAC/170 VDC |
Standard Approval |
UL 248-5|JDDZ E4273|CSA C22.2 No. 248.5|Class 1422-01 53787|CE Certified|NEC Approved |
Application |
For fusible branch panelboards and HVAC branch circuit protection applications |
