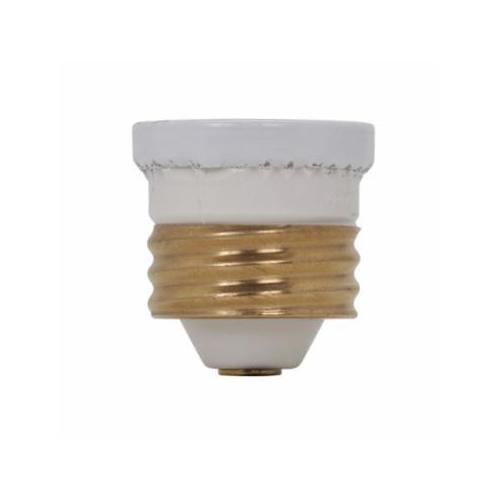

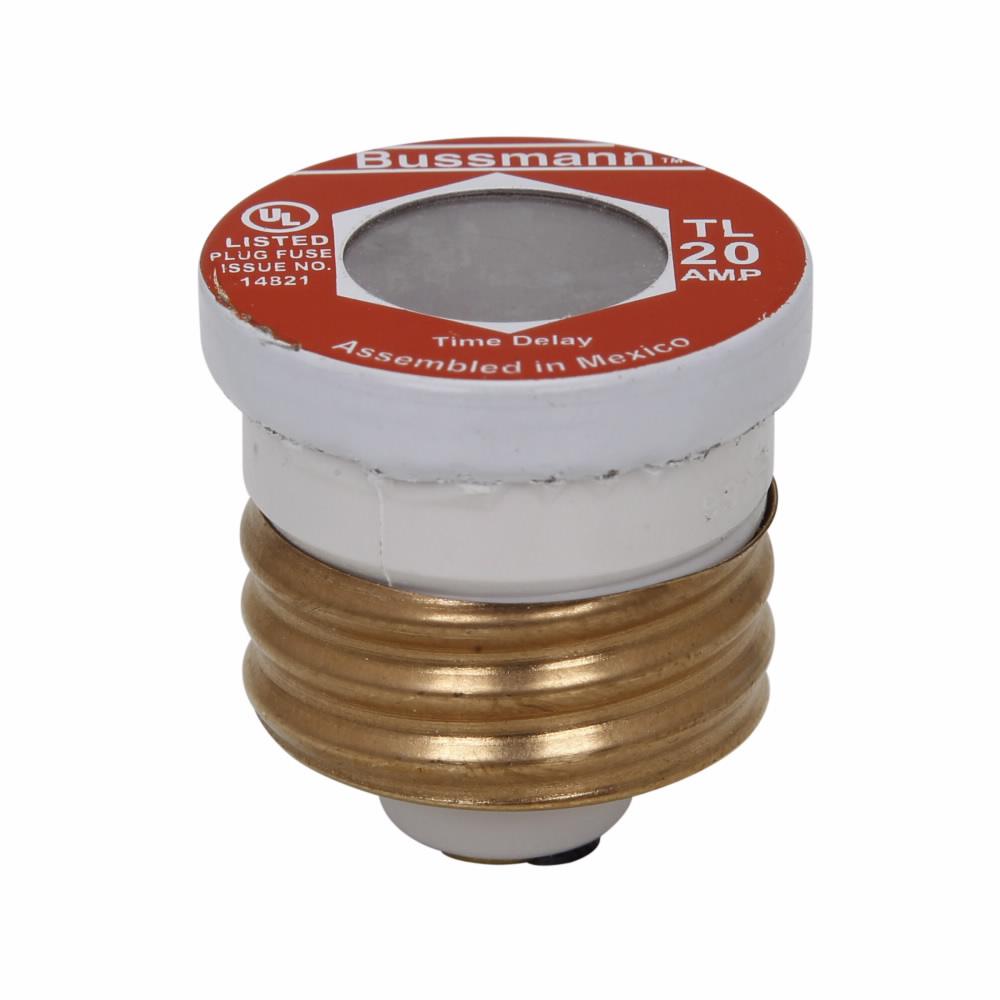

Bussmann TL-20
Bussmann Fusetron™ TL-20 Low Voltage Time Delay Plug Fuse, 20 A, 125 VAC, 10 kAIC Interrupt, Edison Base/Round Body
Brand: Bussmann
Item ID: 6361
MPN: TL-20
Login for Price
Features
- Time delay loaded link TL series Edison base plug fuses pass motor overload starting currents without opening and allow closer sizing to motor load for added protection
- Time delay loaded link SL series fuses provide a rejection feature (when used alone or with Fustat® adapters to retrofit Edison base holders) to help prevent over fusing
Description
Bussmann Fusetron™ Plug Fuse, Low Voltage Time Delay, Series: TL Series, Indicating/Non-Indicating: Non-Indicating, Rejection/Non-Rejection: Non-Rejection, 20 A, 125 VAC, 10 kAIC Interrupt, 10 kA Short Circuit Current Rating, Stud Terminal, Threaded Mount, Edison Base/Round Body Type, Single Element, Plastic Body/Brass Thread, 1.12 in L x 1.12 in W x 1.2 in H Body Size
Specifications
Amperage Rating |
20 A |
Body Size |
1.12 in L x 1.12 in W x 1.2 in H |
Body Type |
Edison Base/Round |
Element |
Single |
Indicating/Non-Indicating |
Non-Indicating |
Interrupt Rating |
10 kAIC |
Material |
Plastic Body/Brass Thread |
Mounting Type |
Threaded |
Rejection/Non-Rejection |
Non-Rejection |
Series |
TL Series |
Short Circuit Current Rating |
10 kA |
Terminal Type |
Stud |
Type |
Low Voltage Time Delay |
Voltage Rating |
125 VAC |
Standard Approval |
CE Certified|UL 248-11 Guide No. JEFV File No. E12112 |
Application |
Residential Buildings and Facilities, Small Motor and High Inductive Load Circuits with High In-Rush Current Levels, Box Cover Units to Provide Equipment Protection and Residential or Light Applications |
Documentation
Specification Sheet https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/TL_20_Specification_Sheet.pdf
