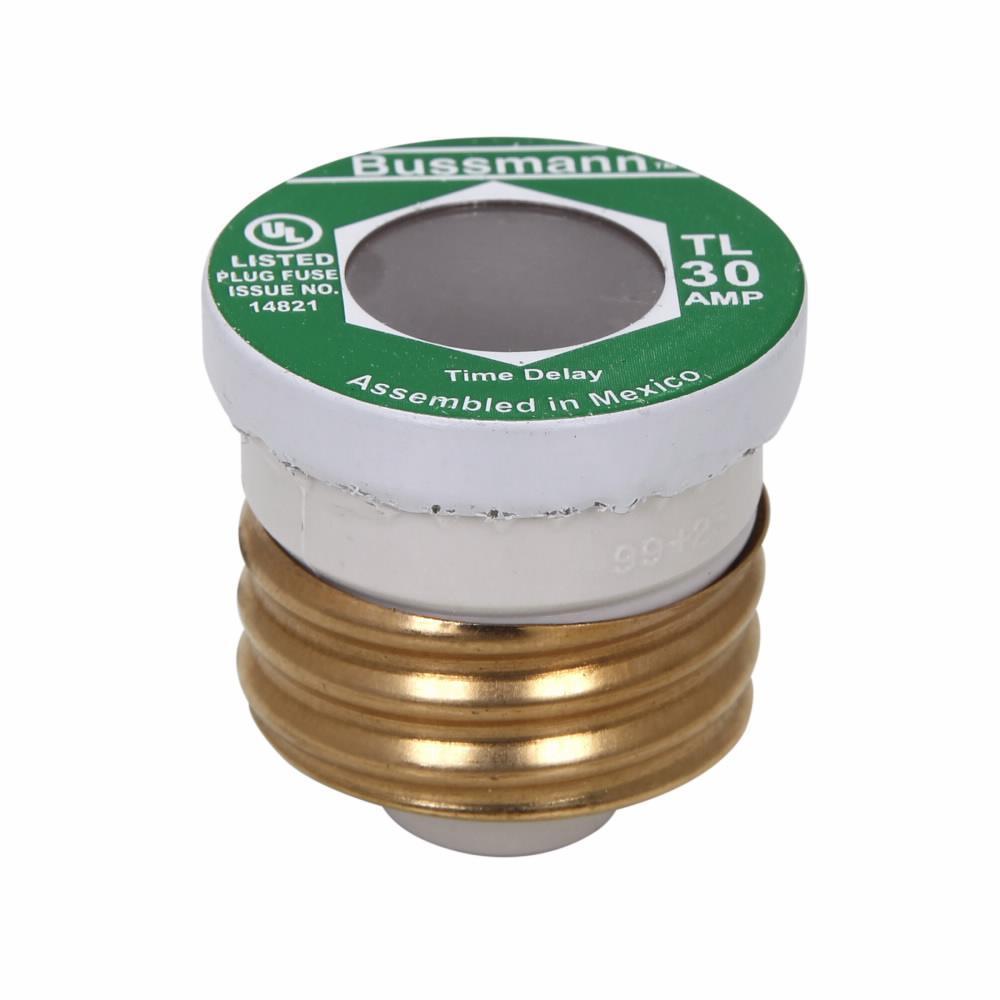

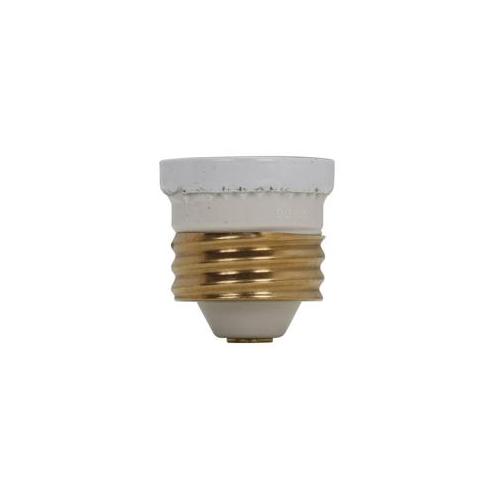

Bussmann TL-30
Bussmann TL-30 Time Delay Loaded Link Plug Fuse, 30 A, 125 VAC, 10 kA, Round Body
Brand: Bussmann
Item ID: 6362
MPN: TL-30
Login for Price
Description
Bussmann Plug Fuse, Time Delay Loaded Link, Series: TL Series, Non-Indicating, Non-Rejection, 30 A, 125 VAC, 10 kA Interrupt, Stud Terminal, Threaded Mounting, Round Body, Single Element, Plastic
Specifications
Amperage Rating |
30 A |
Body Type |
Round |
Element |
Single |
Indicating/Non-Indicating |
Non-Indicating |
Interrupt Rating |
10 kA |
Material |
Plastic |
Mounting Type |
Threaded |
Rejection/Non-Rejection |
Non-Rejection |
Series |
TL Series |
Terminal Type |
Stud |
Type |
Time Delay Loaded Link |
Voltage Rating |
125 VAC |
Standard Approval |
UL 248-11|JEFV E12112|CE Certified |
Application |
For small motor and high inductive load circuits with high in-rush current levels, box cover units to provide equipment protection, light or residential motor circuits in kitchens, workshops, garages and utility rooms |
Documentation
Catalog https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_0823b3539e4bca02748a1200162825d38f0d59564ffdfbe7709574b8f002b672.pdf
Line Drawing https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_5178eb091f0e2e45ae2c94107ebb00b7635c59d5d358236e9e8eba7e81e4c7a5.pdf
Specification Sheet https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_8f2340d76fe2adf5b90cd307db4ffb9b851e9d7fb7665918b85ae84b6dbc4c9b.pdf
