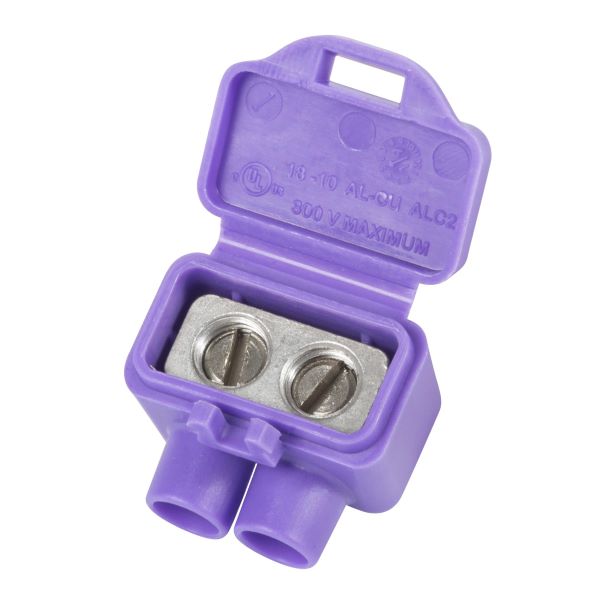

KING INNOVATION® 95035
KING INNOVATION® 95035 2-Port Lug Connector, 12 to 10 AWG Aluminum/18 to 10 AWG Copper Wire Aluminum/Aluminum, Aluminum/Copper, Copper/Copper Wire
Brand: KING INNOVATION®
Item ID: 456628
MPN: 95035
Login for Price
Features
- Secure, mechanical connection of conductors
- Runs approximately 25 deg F cooler than purple twist-ons
- Provides a safer connection
- Separate ports eliminate intermixing of conductors
- One-piece for easy installation
- Dielectric silicone inhibitor reduces corrosion of connection
- Tin plated Lug and nickel plated screws
- Suitable for aluminum to aluminum, aluminum to copper and copper to copper wire splices
- Approved by the Consumer Products Safety Commission (CPSC) and insurance companies
Description
KING INNOVATION®, 95035, Lug Connector, 2-Port, Aluminum/Aluminum, Aluminum/Copper, Copper/Copper Wire, 12 to 10 AWG Aluminum/18 to 10 AWG Copper Wire, 300 VAC, 105 deg C, 0.91 in L x 0.77 in W x 0.65 in H Dimensions
Specifications
Dimensions |
0.91 in L x 0.77 in W x 0.65 in H |
Temperature Rating |
105 deg C |
Type |
2-Port |
Voltage Rating |
300 VAC |
Wire Size |
12 to 10 AWG Aluminum/18 to 10 AWG Copper |
Wire Type |
Aluminum/Aluminum, Aluminum/Copper, Copper/Copper |
Standard Approval |
cULus Listed|UL 486C to meet US and Canadian standards|UL 94 V-2 Flammability Rating |
Documentation
Specification Sheet https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/KING_INNOVATION_95035_Specification_Sheet.pdf
https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/KING_INNOVATION_95035_Specification_Sheet.pdf https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/KING_INNOVATION_95035_Specification_Sheet.pdf
